VS LearnBox. Bedienungsanleitung Seite 10

1
2
2 Assembling and adjusting
the drawers
Drawer cabinets are usually supplied assembled. The lateral
alignment and height of the fronts of the drawer cabinets
can be adjusted if required.

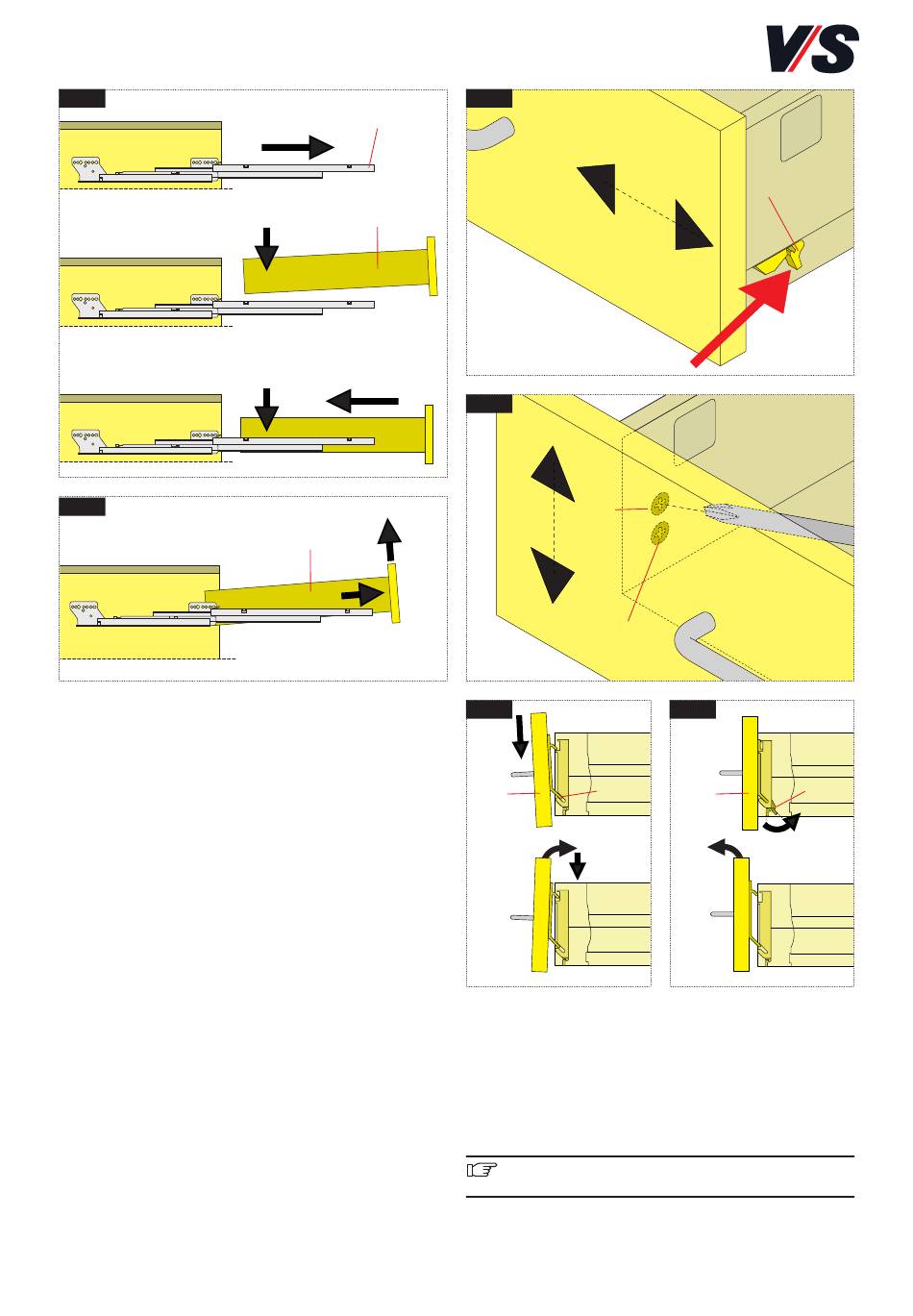

Assembling the drawers [Figure 1]
Pull out the body rail (1), position the drawer (2) on the body
rail at a slight angle and push in until the drawer engages.
Dissembling the drawers [Figure 2]
Pull the drawer (2) out completely and lift.
Lifting = deactivating the pull-out protection in the open
position.
Lateral adjustment of the drawer fronts [Figure 3]
Press the left and right catches (3) backwards. Lift the front
slightly and push over the corrugated section (adjustment
path ± 1.5 mm). Release the catch.
Height adjustment of the drawer fronts [Figure 4]
Loosen screw (4) slightly. Use the eccentric screw (5) to
adjust the front to the required vertical position (adjustment
path. ± 2 mm). Tighten screw (4).
10
(1)
(2)
(2)
Assembling the drawer front [Figure 5]
Insert the front (6) with the mounting hook (7) in the lower,
oblique slit (initial positioning ensured by mounting hook).
Tilt in the front and press down.
Disassembling the drawer front [Figure 6]
Press the catch (3) away from the (6) and unhook the front.
3
4
(4)
(5)
5
(7)
(6)
Important! If necessary, consult the separate instructions
issued by Grass for the Nova Pro drawer system.
(3)
6
(3)
(6)
