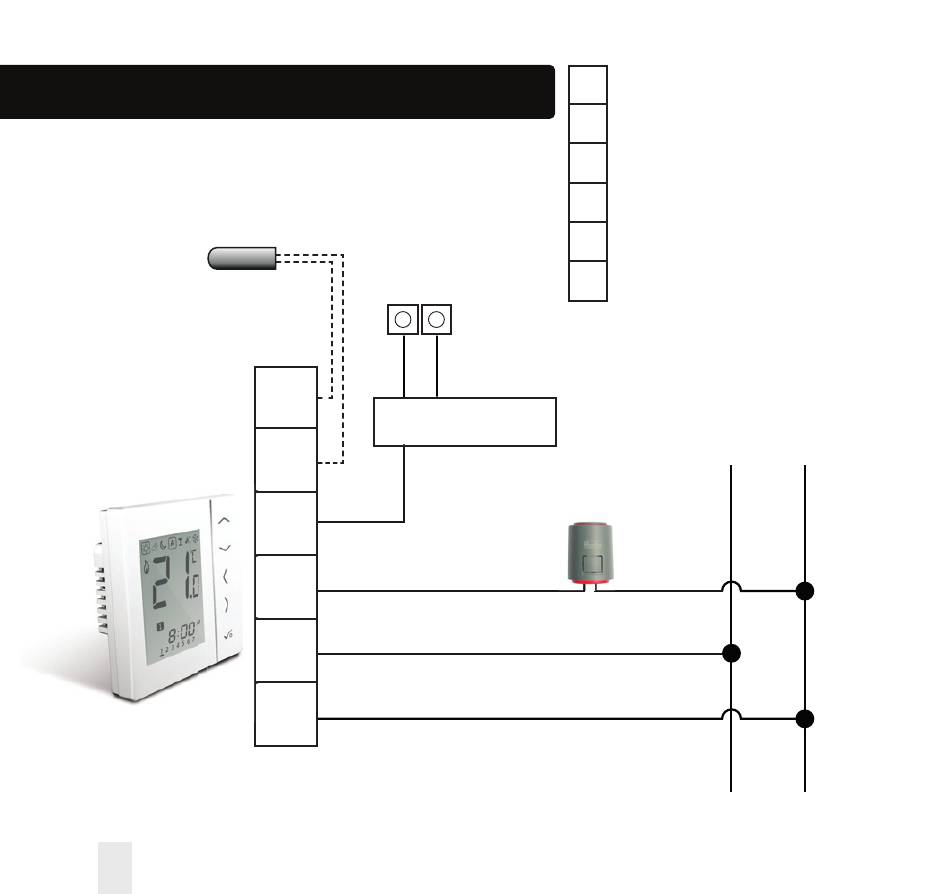

Installation – Terminal Connections
Optional
Sensor
56
Installer Manual
NSB for other
thermostats
S2
Wiring Centre
S1
NSB
Output
SL
L
N
S2
Sensor Terminal (optional)
S1 Sensor Terminal (optional)
NSB Night set back output
SL Load (Thermal Actuators)
L
Live 230 V AC 50Hz
N
Neutral
L
Thermal
Actuator
L N
N
