Installation – Terminal Connections
Understanding your terminal connections

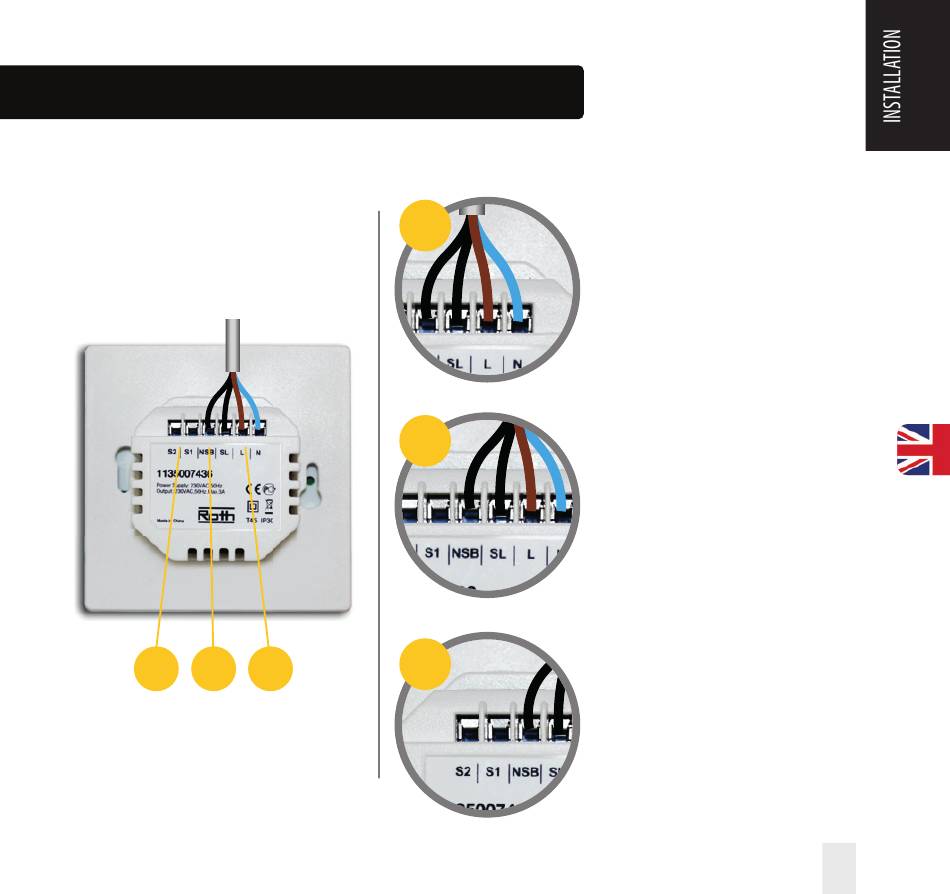

Rear of Basicline T
3 2 1
1
Power Terminals 230 Vac
Used for supplying power to the
unit and switched output.
2
NSB (Night Set Back) Connection
Used for a 230 V output to other
thermostat. See page 56.
3
Sensor Terminals S1, S2 (Optional)
Can be used for external AIR
or Floor sensor.
