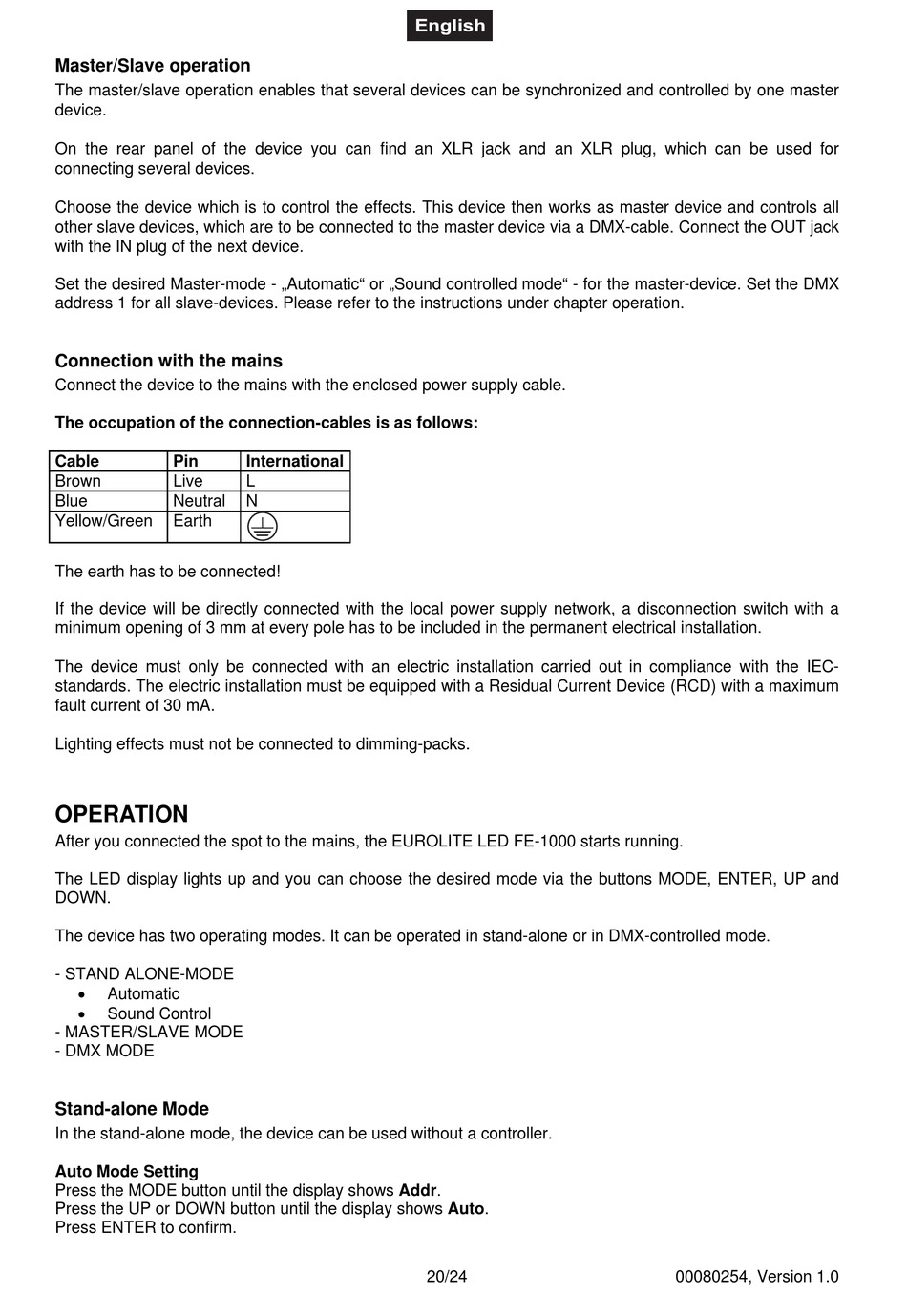

Master/Slave operation

The master/slave operation enables that several devices can be synchronized and controlled by one master
device.
On the rear panel of the device you can find an XLR jack and an XLR plug, which can be used for
connecting several devices.
Choose the device which is to control the effects. This device then works as master device and controls all
other slave devices, which are to be connected to the master device via a DMX-cable. Connect the OUT jack
with the IN plug of the next device.
Set the desired Master-mode - „Automatic" or „Sound controlled mode" - for the master-device. Set the DMX
address 1 for all slave-devices. Please refer to the instructions under chapter operation.

Connection with the mains

Connect the device to the mains with the enclosed power supply cable.
The occupation of the connection-cables is as follows:
Cable Pin
Brown Live
Blue Neutral
Yellow/Green Earth
The earth has to be connected!
If the device will be directly connected with the local power supply network, a disconnection switch with a
minimum opening of 3 mm at every pole has to be included in the permanent electrical installation.
The device must only be connected with an electric installation carried out in compliance with the IEC-
standards. The electric installation must be equipped with a Residual Current Device (RCD) with a maximum
fault current of 30 mA.
Lighting effects must not be connected to dimming-packs.

OPERATION

After you connected the spot to the mains, the EUROLITE LED FE-1000 starts running.
The LED display lights up and you can choose the desired mode via the buttons MODE, ENTER, UP and
DOWN.
The device has two operating modes. It can be operated in stand-alone or in DMX-controlled mode.
- STAND ALONE-MODE

Automatic

Sound Control
- MASTER/SLAVE MODE
- DMX MODE

Stand-alone Mode

In the stand-alone mode, the device can be used without a controller.
Auto Mode Setting
Press the MODE button until the display shows Addr.
Press the UP or DOWN button until the display shows Auto.
Press ENTER to confirm.
