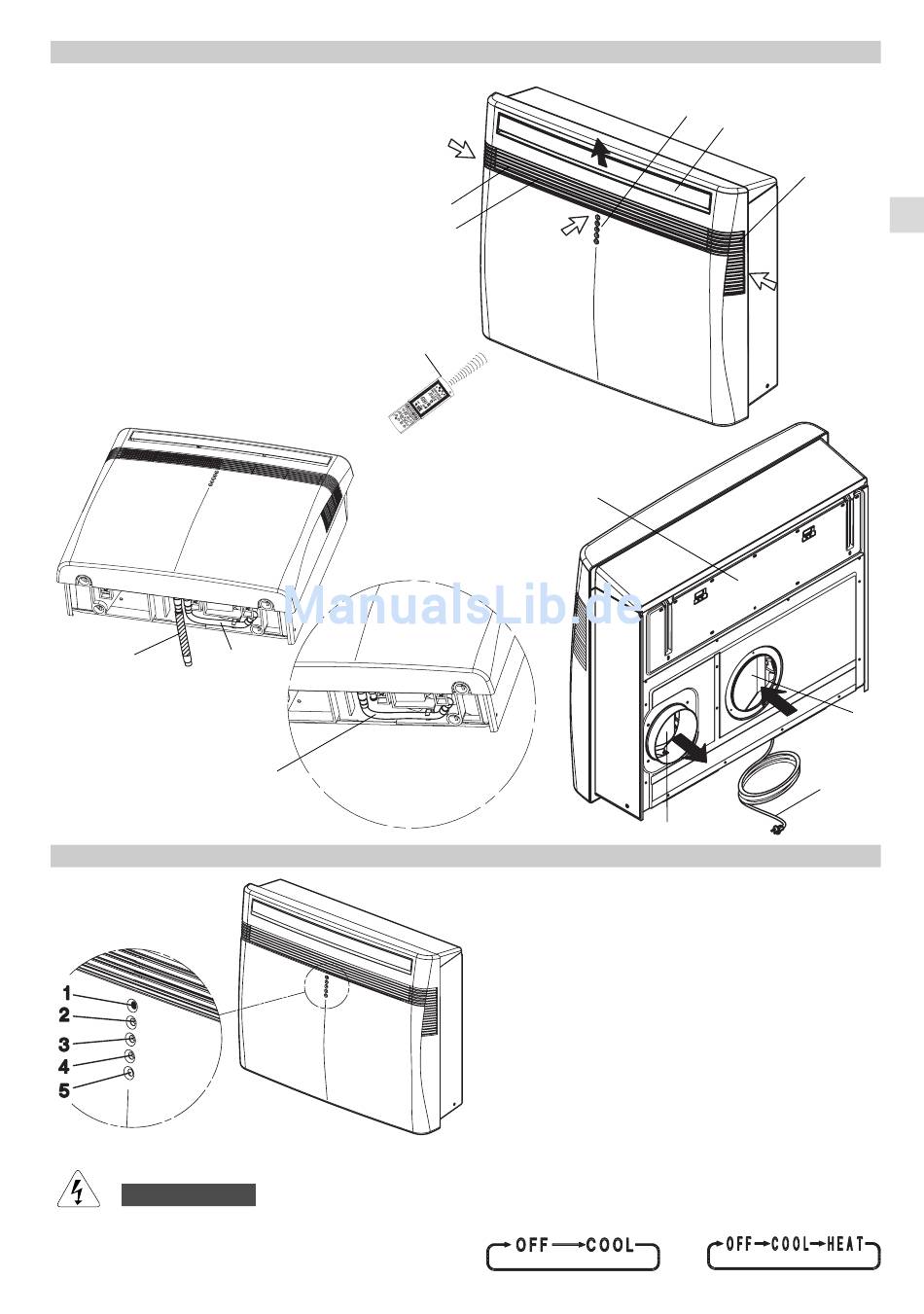

PRODUCT IDENTIFICATION

1. Wireless remote control unit

2. Signaling lamps

3. Supply air deflector
4. Lateral air intake grilles
5. Front air intake grille
6. Air filter
7. Electric cable with plug
8. Air inlet hole
9. Air outlet fan
10. Suspension panel
11. Service tube for condensate discharge
12. Tube for condensate discharge

(heat pump models)

12
11
Heat pump models
SIGNALING LAMPS
WARNING
The OFF position does not disconnect the power. Use
the main power switch to turn off power completely.
1
11 Cooling only models
5
6
10
1. Receiver : receives signals transmitted from the remote
control.
2. Timer lamp: This lamp lights up when the system is
being controlled by the timer or sleep mode.
3. Standby lamp: This lamp lights up when the air
conditioner is connected to the power and ready to
receive the remote control command.
4. Operation lamp: This lamp lights up during operation.
It blinks once to announce that the remote control signal
has been received and stored. It blinks continuously
during the protection modes (defrosting, etc.).
5. Operation button (without remote control): Push the
button to change from one operation mode to the other
as shown here following.
Cooling only models
3
2
3
4
7
9
Heat pump models
EG
8
