Please unfold page 3. Thus you will always be able
GB
to see the operating elements and connections
described.
1

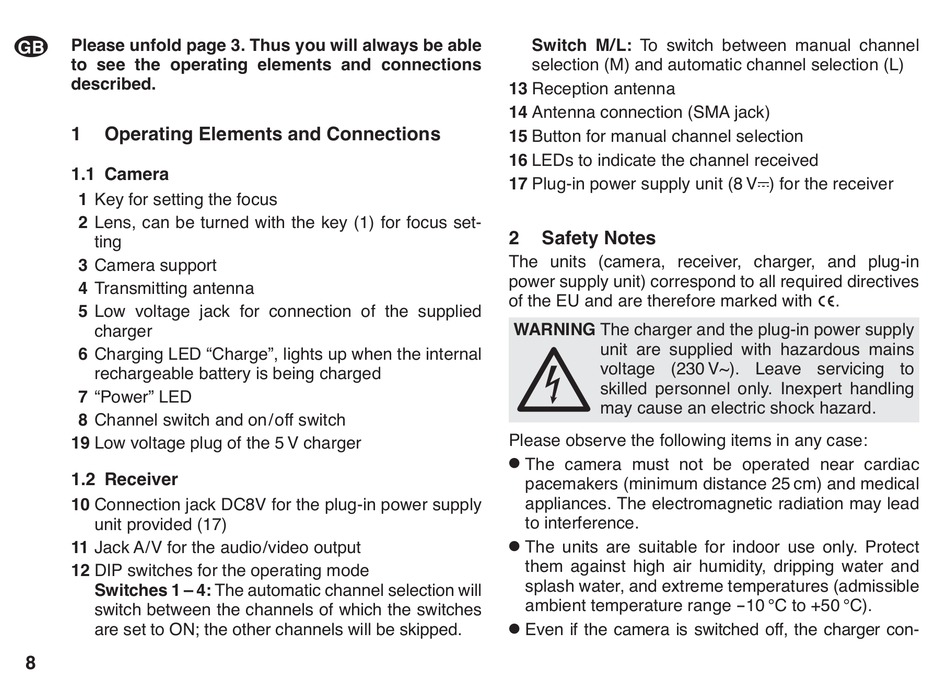

Operating Elements and Connections
1.1 Camera
1 Key for setting the focus
2 Lens, can be turned with the key (1) for focus set-
ting
3 Camera support
4 Transmitting antenna
5 Low voltage jack for connection of the supplied
charger
6 Charging LED "Charge", lights up when the internal
rechargeable battery is being charged
7 "Power" LED
8 Channel switch and on/off switch
19 Low voltage plug of the 5 V charger
1.2 Receiver
10 Connection jack DC8V for the plug-in power supply
unit provided (17)
11 Jack A/V for the audio/video output
12 DIP switches for the operating mode
Switches 1 – 4: The automatic channel selection will
switch between the channels of which the switches
are set to ON; the other channels will be skipped.
8
Switch M/L: To switch between manual channel
selection (M) and automatic channel selection (L)
13 Reception antenna
14 Antenna connection (SMA jack)
15 Button for manual channel selection
16 LEDs to indicate the channel received
17 Plug-in power supply unit (8 V ) for the receiver
2
Safety Notes
The units (camera, receiver, charger, and plug-in
power supply unit) correspond to all required directives
of the EU and are therefore marked with
WARNING The charger and the plug-in power supply
unit are supplied with hazardous mains
voltage (230 V~). Leave servicing to
skilled personnel only. Inexpert handling
may cause an electric shock hazard.
Please observe the following items in any case:
G
The camera must not be operated near cardiac
pacemakers (minimum distance 25 cm) and medical
appliances. The electromagnetic radiation may lead
to interference.
G
The units are suitable for indoor use only. Protect
them against high air humidity, dripping water and
splash water, and extreme temperatures (admissible
ambient temperature range -10 °C to +50 °C).
G
Even if the camera is switched off, the charger con-
.
