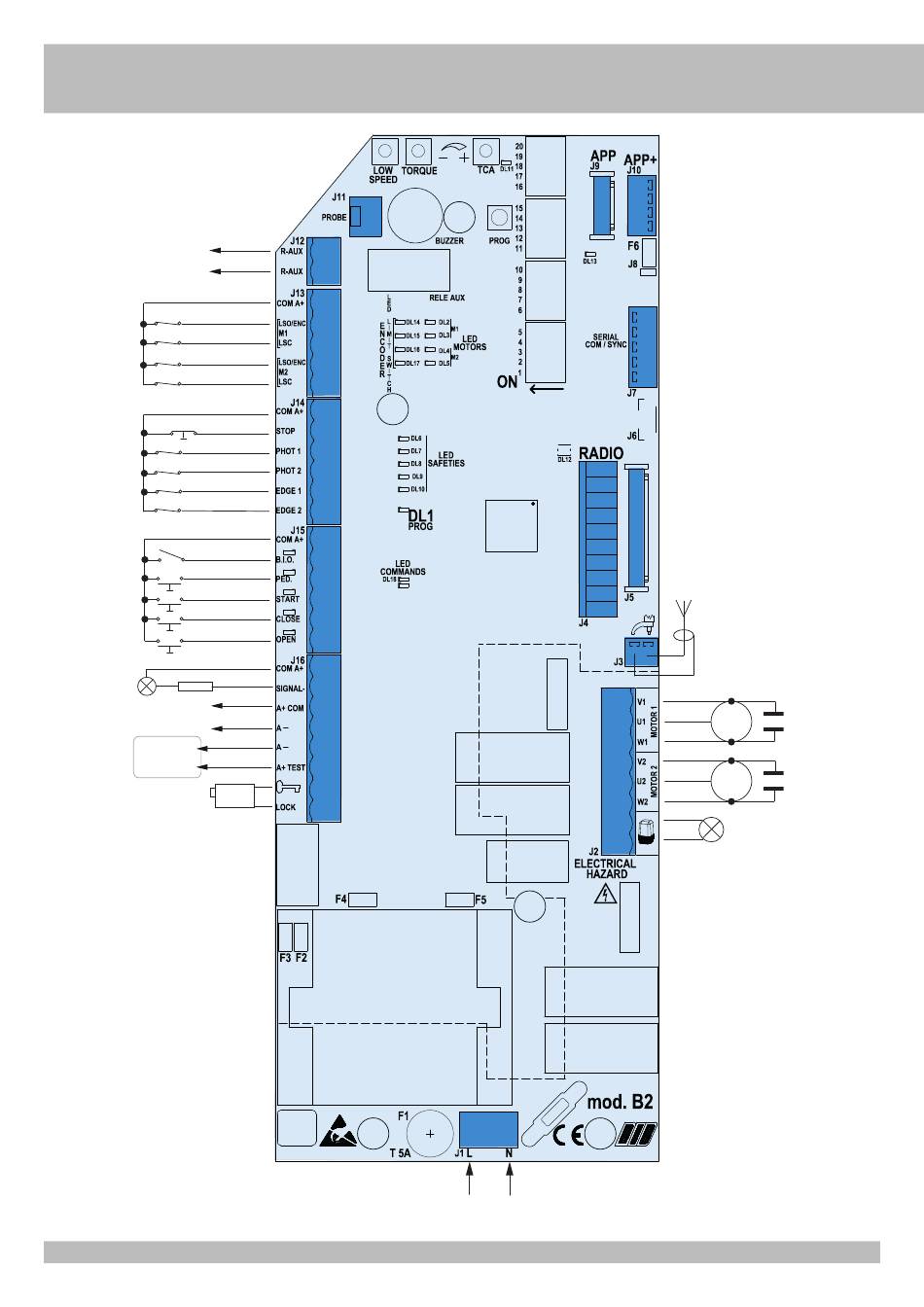

ELECTRIC CONNECTIONS

700 W MAX
COMMON
LIMIT SWITCH OPEN M1
LIMIT SWITCH CLOSE M1
LIMIT SWITCH OPEN M2
LIMIT SWITCH CLOSE M2
COMMON
STOP
PHOTOCELL 1
PHOTOCELL 2
EDGE 1
EDGE 2
COMMON
TIMER
PEDESTRIAN
SINGLE COMMAND
CLOSE
OPEN
COMMON
R=2,2K 1/4W
LED
24Vdc 0,4A ±15%
A+TEST / A-
PHOTOCELLS 24Vdc 0,4A ±15%
AUTO-TEST
ELECTRIC LOCK
COMMON
POWER SUPPLY
230Vac 50 Hz
47
B2 cod. AC08074
ANTENNA
433 MHz
ANTENNA
BRAIDING
OPEN
COMMON
M1
CLOSE
OPEN
COMMON
M2
CLOSE
BLINKER
230Vac 40W
G
B
