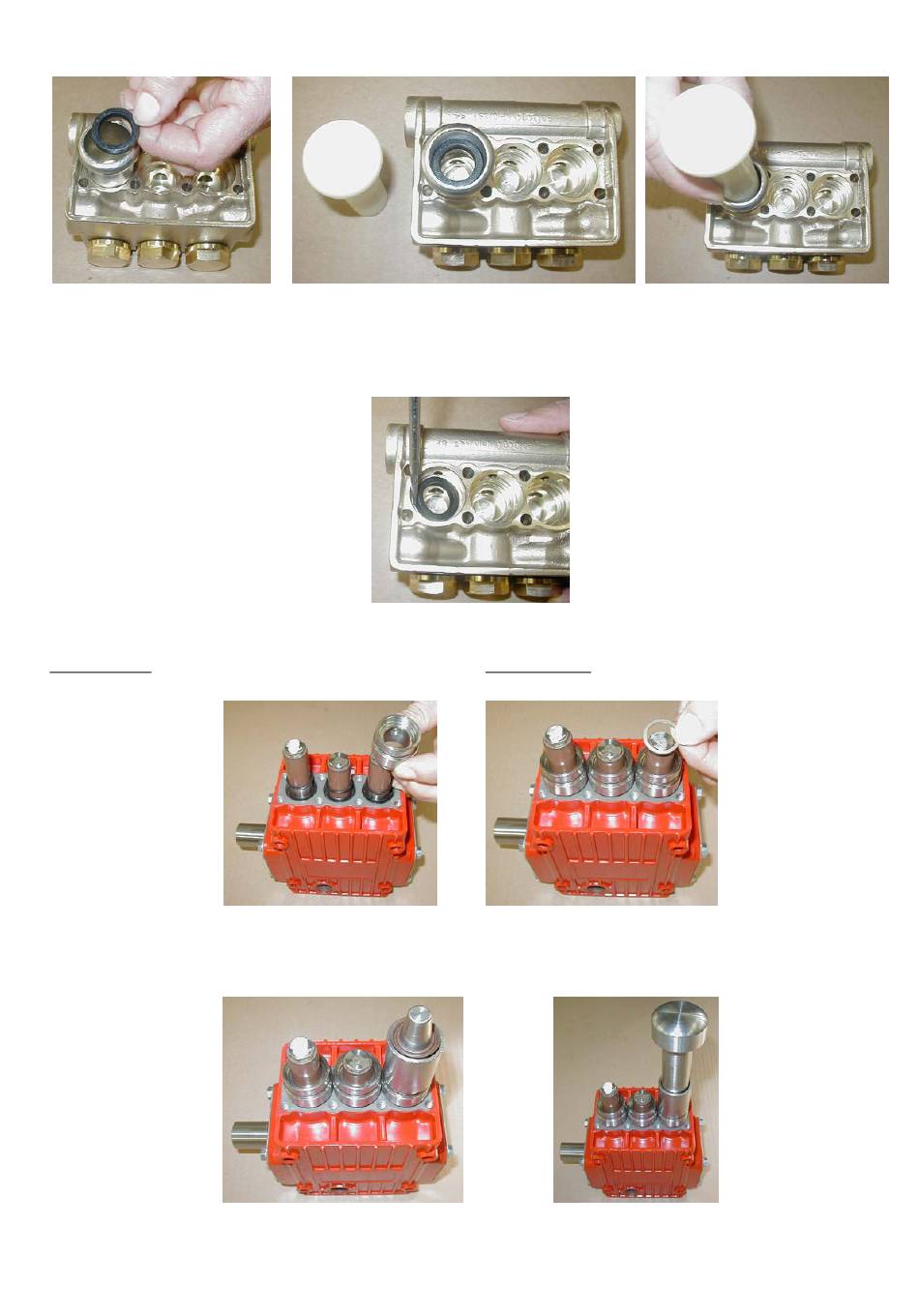

Hierzu am besten die Montagehilfen (Best.-Nr. 15.0952 / 15.0953) be-
nutzen (Bild 9-11).
Bild 9
Falls diese Montagehilfen nicht vorhanden sind, die Dichtungen (23)
auf einer Seite in den Absatz des Ventilgehäuses (26) legen und dann
den restlichen Umfang durch seitliches Drücken mit der flachen Fläche
eines Schraubendrehers vorsichtig in den Absatz fädeln (Bild 12).
Dann die Dichtungsaufnahmen auf den Antrieb stecken (Bild 13).
Nur bei NP10RE: Anschließend die Abstreifer (23B) vorsichtig auf die
Keramikplunger schieben (Bild 14).
Anschließend die Dichtung (23A) (braun) mit dem Profil nach oben mit
den Montagehilfen (Best.-Nr. 15.0948 / 15.0949 / 15.0950) in die Dich-
tungsaufnahme schieben (Bild 15 / 16).
It is best to use the mounting aids (code no. 15.0952 / 15.0953) (photos
9-11).
Bild 10
Should the mounting aids not be available, place the seal (23) into the
valve casing (26) recess with one side up; then press the rest of the
seal into the recess little by little using the flat side of a screwdriver
(photo 12).
Bild 12
Mount
Only for NP10RE: Then fit the drip shields (23B) by carefully passing
them along the plungers (photo 14).
Bild 13
Finally push the seal (23A, brown) with its groove pointing upwards into
the seal retainer using the mounting aids (code no. 15.0948 / 15.0949 /
15.0950) (photo 15 /16).
Bild 15
the
seal
retainers
into
Bild 14
Bild 16
Bild 11
the
drive
(photo
13).
D1392-mont 0517S
