Attaching Hook Bracket to Screen with VESA 75 or 100 Mounting Pattern

• If screws don't get three complete turns in the screen inserts or if screws bottom out and bracket is still not tightly
secured, damage may occur to screen or product may fail.

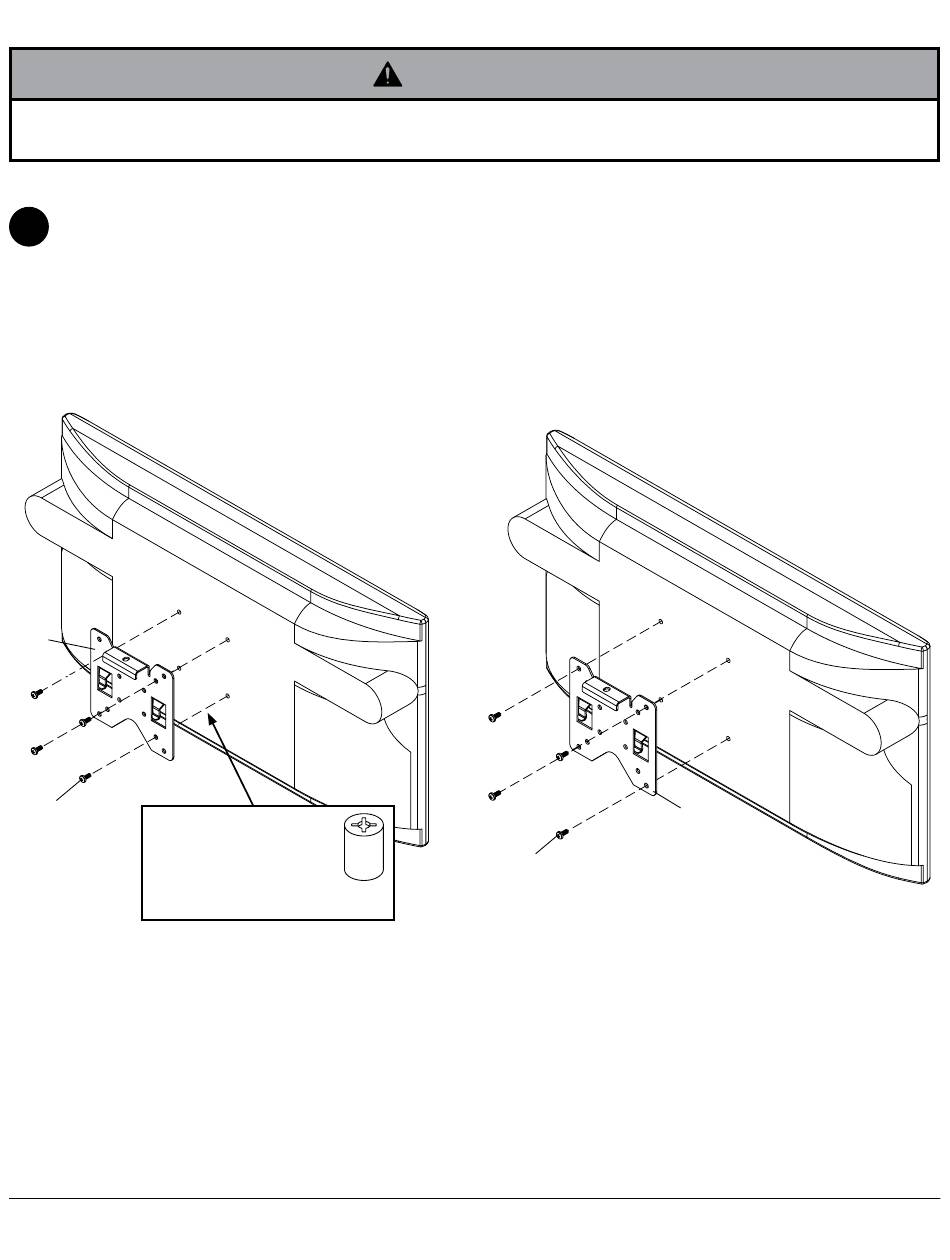

FOR VESA 75 MOUNTING PATTERN:
®
Choose hole pattern as shown below. Attach hook
2
bracket (A) to back of screen using four M4 x 10
mm screws (E) as shown below.
*NOTE: If hole pattern is in a pocket, attach hook
bracket (A) to back of screen using four M4 x 20
mm screws (F) and four retaining spacers (L) as
indicated below.
A
E
*For screens with a
hole pattern in a pocket,
spacers (L) go between
hook bracket (A) and
screen.
WARNING
E
L
7 of 34
FOR VESA 100 MOUNTING PATTERN:
Choose hole pattern as shown below. Attach hook
bracket (A) to back of screen using four M4 x 10
mm screws (E) as shown below.
A
