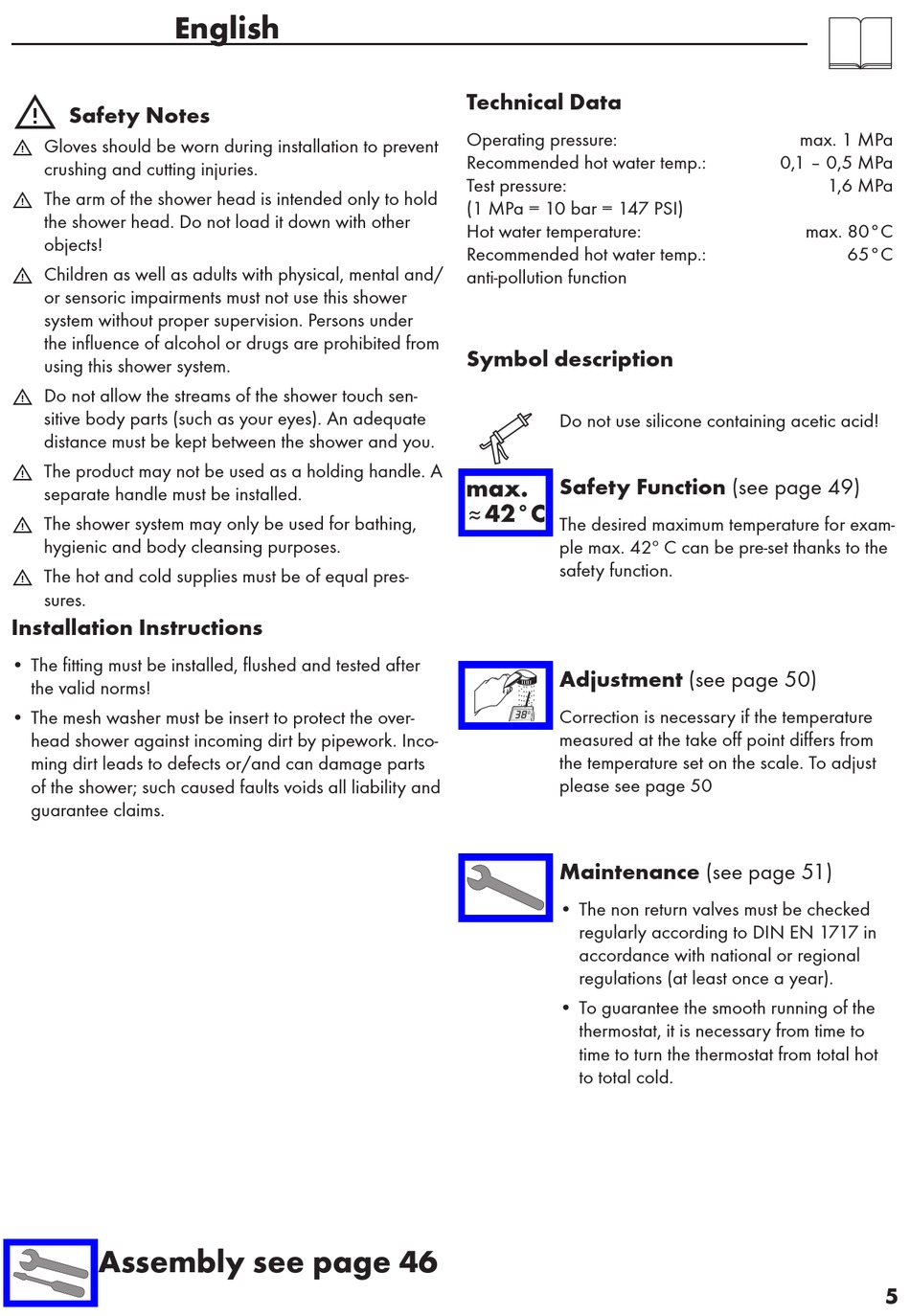

English


Safety Notes

Gloves should be worn during installation to prevent

crushing and cutting injuries.
The arm of the shower head is intended only to hold

the shower head. Do not load it down with other
objects!
Children as well as adults with physical, mental and/

or sensoric impairments must not use this shower
system without proper supervision. Persons under
the influence of alcohol or drugs are prohibited from
using this shower system.
Do not allow the streams of the shower touch sen-

sitive body parts (such as your eyes). An adequate
distance must be kept between the shower and you.
The product may not be used as a holding handle. A

separate handle must be installed.
The shower system may only be used for bathing,

hygienic and body cleansing purposes.
The hot and cold supplies must be of equal pres-

sures.

Installation Instructions

• The fitting must be installed, flushed and tested after
the valid norms!
• The mesh washer must be insert to protect the over-
head shower against incoming dirt by pipework. Inco-
ming dirt leads to defects or/and can damage parts
of the shower; such caused faults voids all liability and
guarantee claims.
Assembly see page 46
Technical Data
Operating pressure:
Recommended hot water temp.:
Test pressure:
(1 MPa = 10 bar = 147 PSI)
Hot water temperature:
Recommended hot water temp.:
anti-pollution function

Symbol description

Do not use silicone containing acetic acid!
Safety Function (see page 49)
The desired maximum temperature for exam-
ple max. 42º C can be pre-set thanks to the
safety function.
Adjustment (see page 50)
Correction is necessary if the temperature
measured at the take off point differs from
the temperature set on the scale. To adjust
please see page 50
Maintenance (see page 51)
• The non return valves must be checked
regularly according to DIN EN 1717 in
accordance with national or regional
regulations (at least once a year).
• To guarantee the smooth running of the
thermostat, it is necessary from time to
time to turn the thermostat from total hot
to total cold.
max. 1 MPa
0,1 – 0,5 MPa
1,6 MPa
max. 80°C
65°C
5
