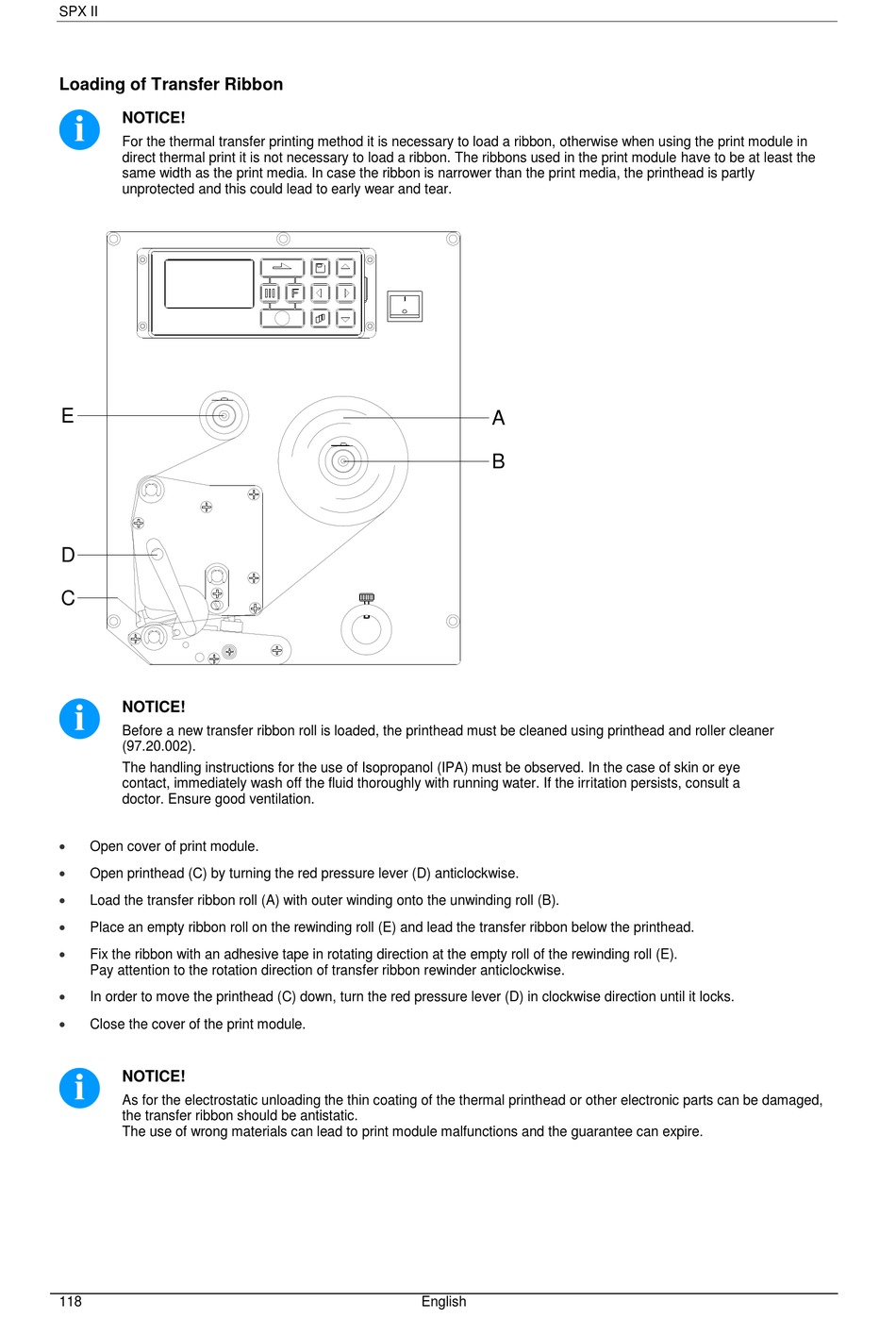

Loading of Transfer Ribbon
NOTICE!
For the thermal transfer printing method it is necessary to load a ribbon, otherwise when using the print module in
direct thermal print it is not necessary to load a ribbon. The ribbons used in the print module have to be at least the
same width as the print media. In case the ribbon is narrower than the print media, the printhead is partly
unprotected and this could lead to early wear and tear.
E
D
C
NOTICE!
Before a new transfer ribbon roll is loaded, the printhead must be cleaned using printhead and roller cleaner
(97.20.002).
The handling instructions for the use of Isopropanol (IPA) must be observed. In the case of skin or eye
contact, immediately wash off the fluid thoroughly with running water. If the irritation persists, consult a
doctor. Ensure good ventilation.

Open cover of print module.

Open printhead (C) by turning the red pressure lever (D) anticlockwise.

Load the transfer ribbon roll (A) with outer winding onto the unwinding roll (B).

Place an empty ribbon roll on the rewinding roll (E) and lead the transfer ribbon below the printhead.

Fix the ribbon with an adhesive tape in rotating direction at the empty roll of the rewinding roll (E).
Pay attention to the rotation direction of transfer ribbon rewinder anticlockwise.

In order to move the printhead (C) down, turn the red pressure lever (D) in clockwise direction until it locks.

Close the cover of the print module.
NOTICE!
As for the electrostatic unloading the thin coating of the thermal printhead or other electronic parts can be damaged,
the transfer ribbon should be antistatic.
The use of wrong materials can lead to print module malfunctions and the guarantee can expire.
