Turny Evo Getting seated

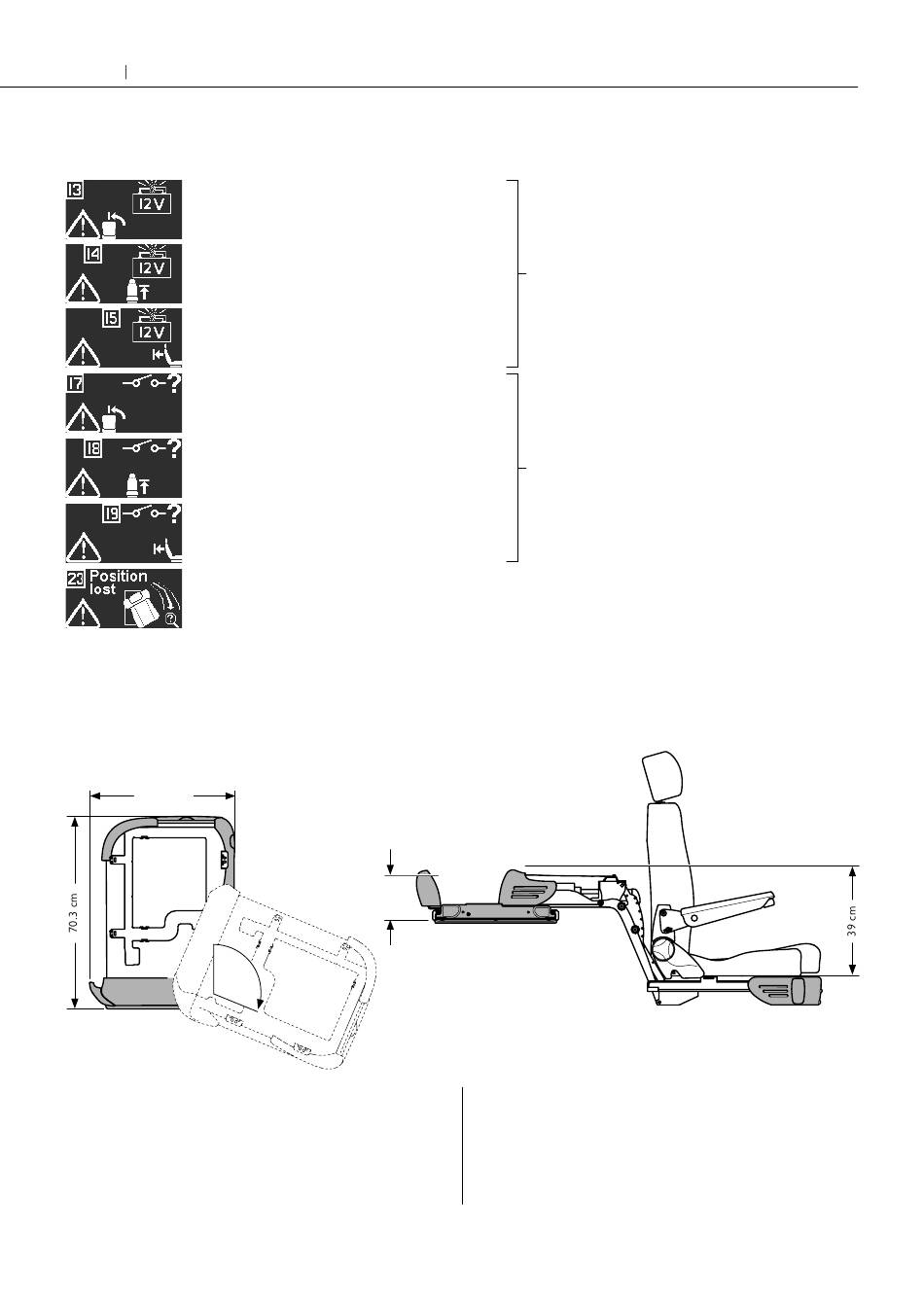

Warnings/error messages
Swivel motor overloaded.
Lift motor overloaded.
Lengthwise adjustment motor overloaded
Swivel motor switch activated in wrong position.
Lift motor switch activated in wrong position.
Lengthwise adjustment motor switch activated in wrong
position.
Turny Evo has lost its position.

Technical specification

From above, swivelled out to the right
54.2 cm
Length with retracted foot rest ................................................ 70.3 cm
Width ...................................................................................................... 54.2 cm
Swivel increments..................................................................................0-113°
Installation height, up to seat attachment ........................... 16.3 cm
Lift height ...................................................................................................39 cm
Lengthwise movement ...................................................................... 41 cm
* Weight capacity refers to the total weight of the seat, its accessories and the user.
From behind, swivelled out to the
right and lowered
16.3 cm
113°
Recommended action
Make sure there are no obstructions and try again with
an empty seat. Contact your installation technician if the
error persists.
Follow the Emergency Operation with Hand Control
instructions to reset Turny Evo's start position. Contact
your installation technician if the error persists.
Follow the Emergency Operation with Hand Control
instructions to reset Turny Evo's start position. Contact
your installation technician if the error persists.
Product weight........................................................................................ 84 kg
Weight capacity* .................................................................................. 180 kg
Max power consumption ..................................................................... 14 A
Power consumption at rest ..................................................... ≈ 0.8 mA
Fuse .....................................................................................................................15A
Power requirements ................................................................................ 12V
