Autoadapt Turny Evo Installations Anleitung Seite 27

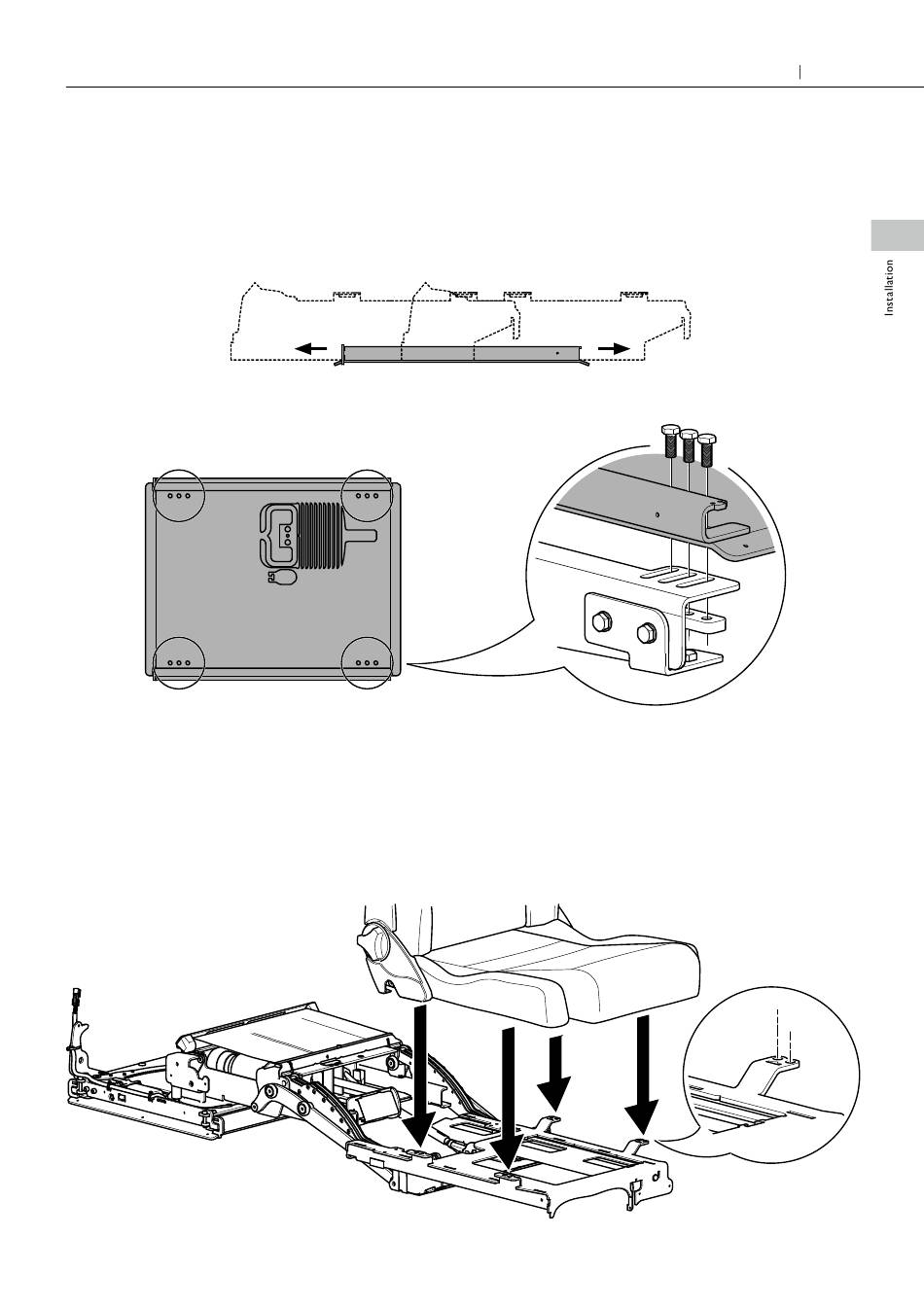

5. Install Turny Evo on the bracket
Run the unit forwards and backwards to reach the attachment points on the base
plate. Install Turny Evo using the nuts and bolts supplied with the bracket.
Run the unit backwards to uncover the attachment
points for the bracket at the front.
3 st
BACK
3 st
6. Mount seat
Swivel out and lower Turny Evo slightly to reach the attachment points for seat, belt and
then covers. Fit the seat using the nuts and bolts supplied with the seat.
A / rear holes
- BEV seat
- Compact seat
- Adapter plate for Recaro seat
B / front holes
- Adapter plate for Carony system
Run the unit forwards to uncover the attachment
points for the bracket at the rear.
3 st
FRONT
3 st
27
Getting seated Turny Evo
EN
A
B
