Turny Evo Getting seated
8. Mount footrest and covers
Note!
To reach all attachment points the Turny Evo must be swivelled out and lowered
slightly. The illustration below shows the unit fully swivelled in to more easily show the
location of the covers.
MODEL RIGHT

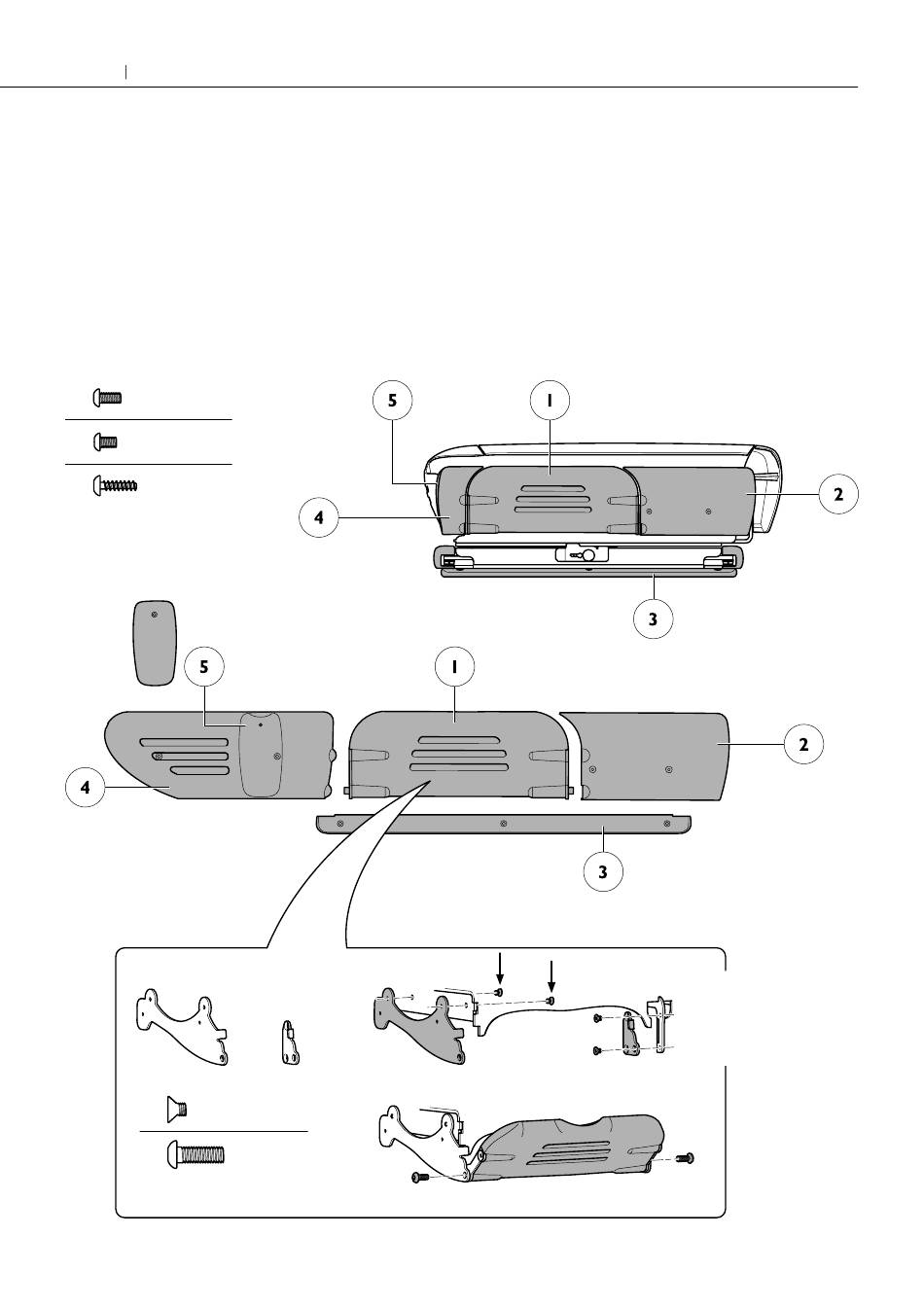

Foot rest and front covers, mount in numerical order
A M4 x 8
B M4 x 6
C 3.5 x 16
C x 1
A x 2
D
E
x 1 x 1
M5 x 6
M6 x 18
B x 3
D x 4
E x 2
A x 2
Tighten the screws
indicated with arrows
first when the footrest is
in place.
