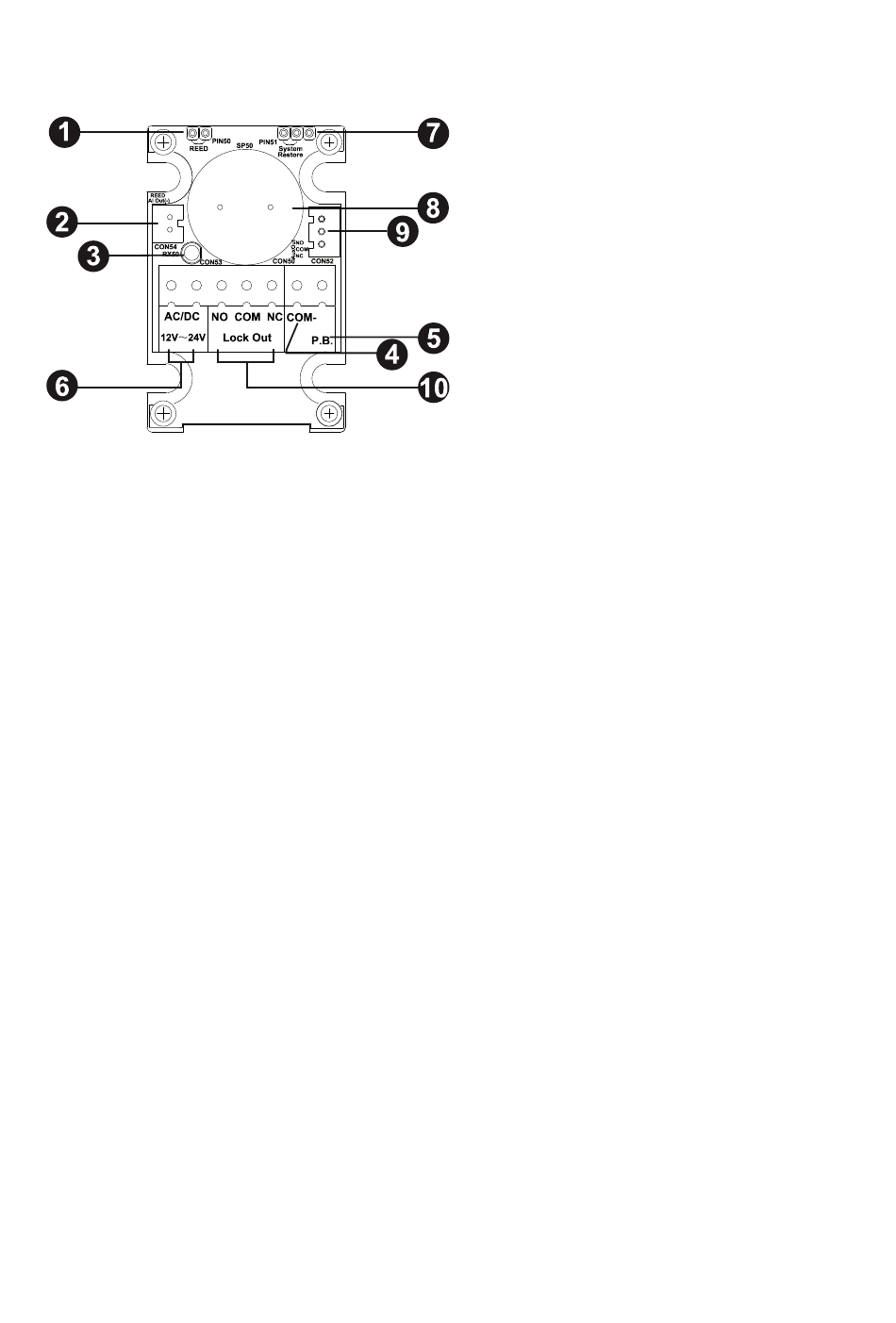

6.2 Connection

5) "PB" Connection
An NO button can be connected here. It can
trigger the "Lock Out" relay contacts. (=door
opener function)
6) "12~24 V AC/DC" Connection
Connection for voltage supply
7) "SYSTEM RESET" Jumper
You may restore the default settings with this
jumper.
24
1) "REED" Jumper
This jumper must be removed when a door
magnet contact is connected to the "REED"
connection.
2) "REED", "Al-Out (-)" Connection
Reed:For connecting a door magnet
contact NC).
Al Out (-): For connection of a visual or
acoustic alarm signal; max. 12V/DC, 500 mA.
3) LED
4) COM-
Joint earth connection for REED and PB
8) Internal Alarm Signal
9) "Aux Out" Relay Contacts
NO, COM, NC; suitable for connection to dif-
ferent safety systems; max. 12V/AC/DC, 3A
10) "Lock Out" Relay Contacts
NO: For fail-secure(NO) door openers
COM: Joint reference point
NC: For fail-safe(NC) door openers
Door opener max. 24/VAC/DC, 3A
