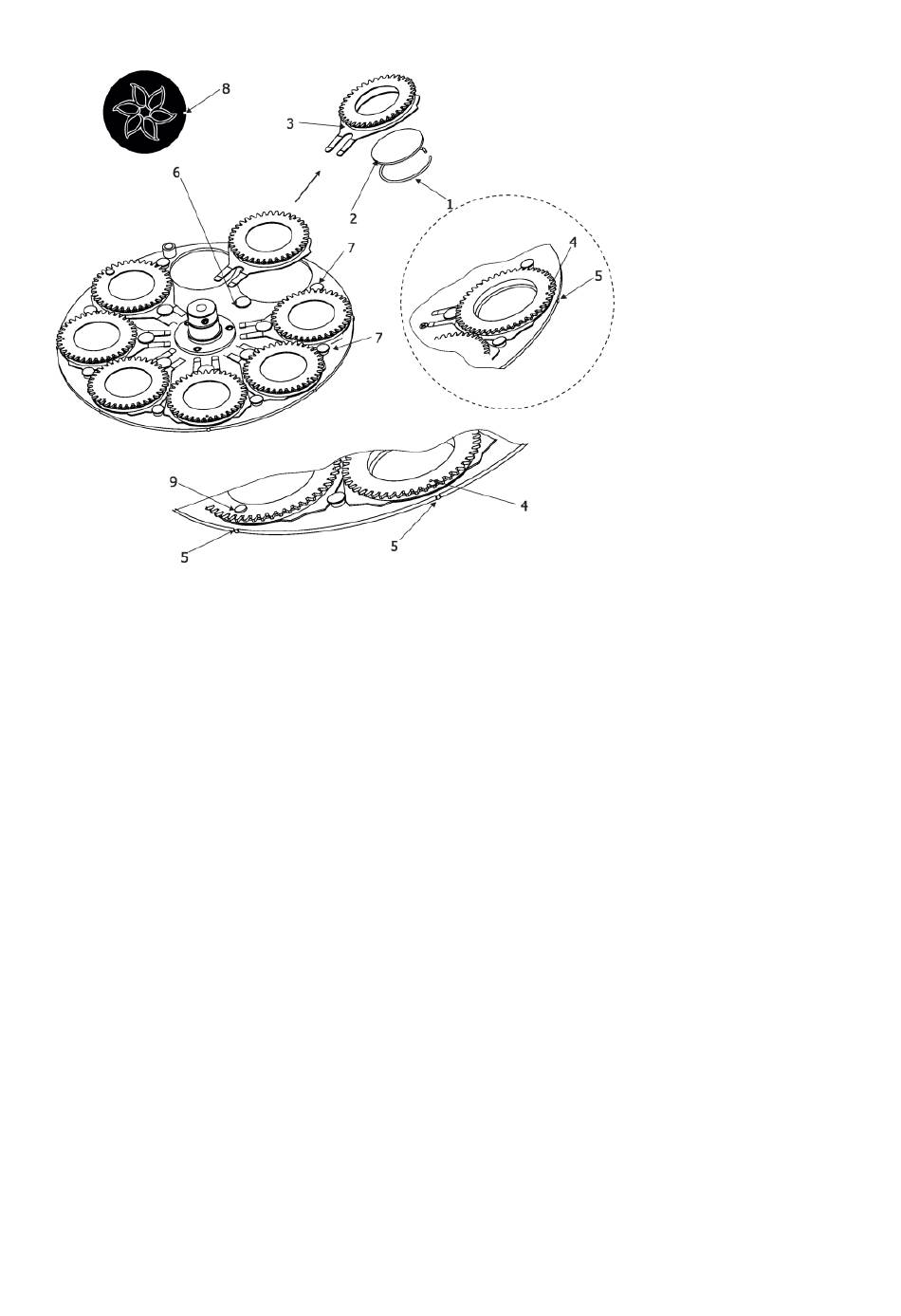

Gobo switch:
1. Unplug the device from all poles and let it cool down.
2. Remove both head covers. Position the head so that the front lens faces down.
3. Turn the desired gobo wheel until the gobo to be replaced is at the top.
4. Grasp the gobo holder (3) by its teeth, lift it slightly off the gobo wheel and
pull out the holder. ATTENTION: For glass gobos, do not touch the glass with your fingers!
5. Loosen the retaining spring (1) with a small screwdriver and release the gobo from the holder
a soft pad will fall.
6. Place the new gobo in the holder. The gobo has at its edge a small position point (8), which must aim at the
position point (4) on the gobo holder (5).
7. Replace the gobo holder (3) under the spacer grooves (6, 7) in the rotating gobo wheel so that
Positioning point (4) is directed to a small tooth-like projection (5) on the edge of the rotating gobo wheel.
IMPORTANT! When the gobo holder is placed back on the rotating gobo wheel, one of the adjacent gobo holders
must be aligned according to the same rule, i. its position point (4) must be directed to the tooth-like projection (5) on
the edge.
NOTE. The index magnet (9) of the gobo holder has the same function as the position point (4) on the remaining gobo
holders
8. Replace more gobos if necessary. Always proceed as described above.
9. If no further work is to be done, mount the head covers and release the gate lock before operating the device.
