involight TRINITY200LED Bedienungsanleitung Seite 34

22 27
23 28
24 29
25 30

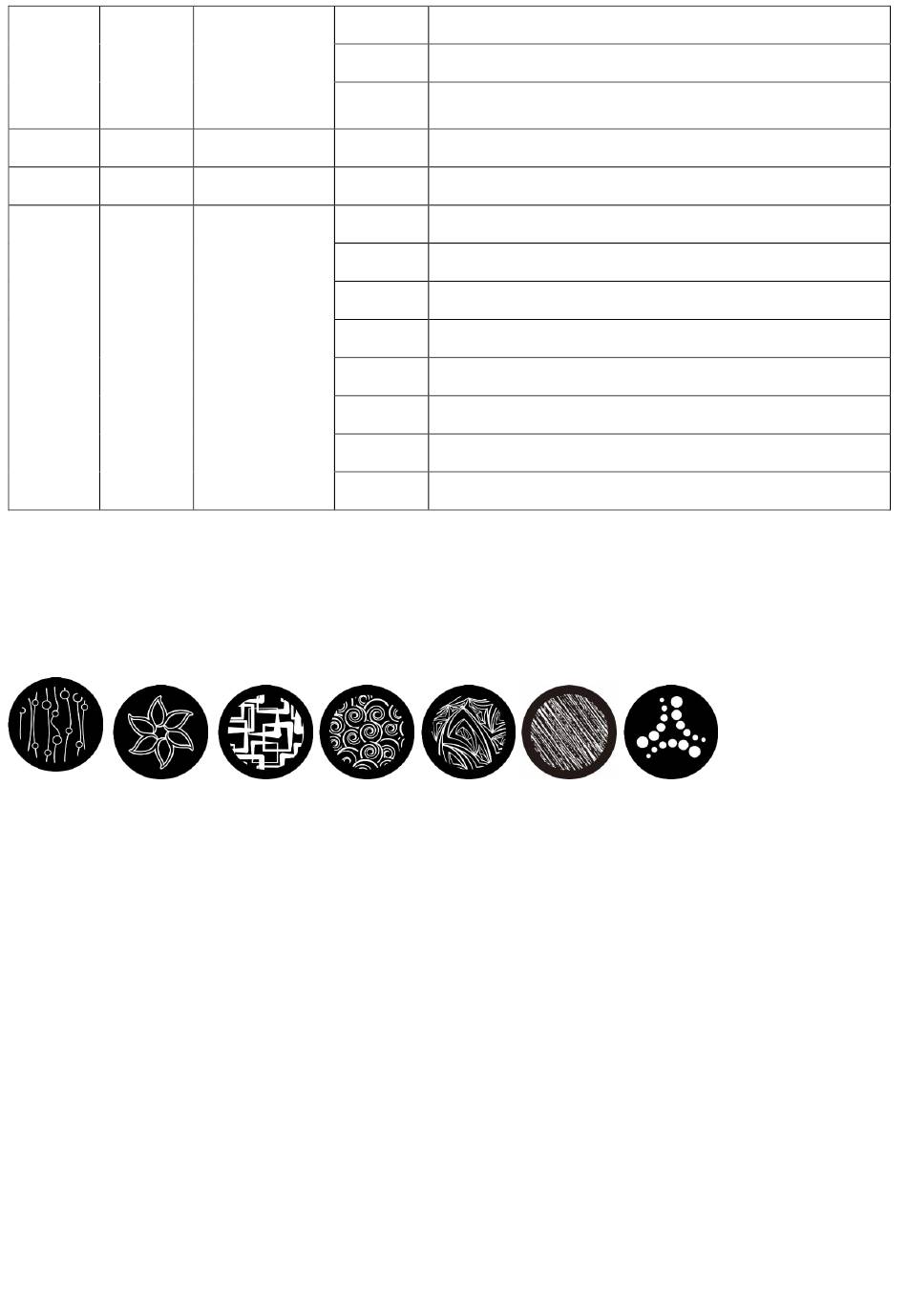

Rotation gobos:
Outer diameter:
Max. motive diameter
Max. thickness
:
0-127
Rotation
128-191
Prism2
192-255
reserved 0-255
Frost Filter 0-255
0-31
32-63
64-95
96-127
Reset
128-159
160-191
192-223
224-255
26,8 mm +0/-0,2 mm
: 21 mm
4 mm
Prism 2 exact positioning
Clockwise rotation, speed descending
Rotation counterclockwise, speed increasing
reserved
Frost Effect 0-100%
No function
Reset TILT and PAN
Head Reset
Software Reset
Reserved
Reserved
Reserved
Reserved
