Teil 3: Functions and operations.

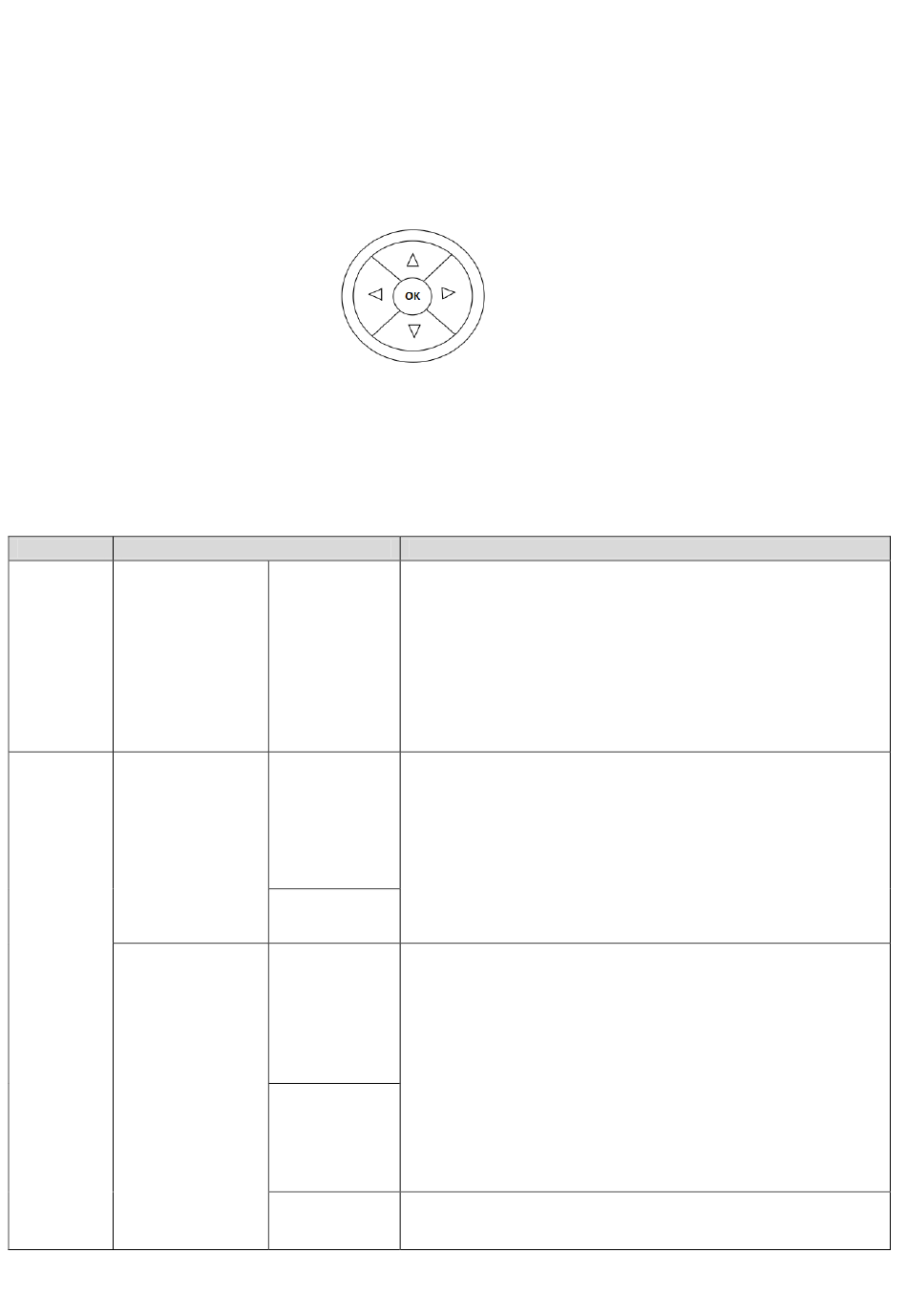

3.1 4 Digits LCD-Display.

Connect the "TRINITY200LED to the mains. The device performs the usual reset procedure. Wait until it's done. The
LCD display with 4-button operation is the heart of the "TRINITY200LED". This can be used to set all functions and
modes. Below, the individual functions and modes are listed in tabular form.
Press the OK button so that the display turns on. By pressing the appropriate arrow key (down, up, left and right) you
can move in the main menu. You can change the selection by pressing the appropriate arrow key. The respective
functions are described below.

3.2 Menu structure .

Modus
Address Address Setting
Channel Mode
Fixture
Pan/Tilt Setting
UP
Return
Down
Menu
Standard Mode
Extend Mode
Invert Pan
Invert Tilt
Swap Pan-Tilt
Enter
Description
DMX Addressing.
a) Press the button►(Enter), till "DMX Address" appears.
b) Press the ▲ (Up) or ▼ (Down) buttons to select the desired
address.
c) As soon as the correct address is shown on the display,
confirm with the ► (Enter) or "OK" button.
d) Press the ◄ (Return) key to exit the selection without saving.
This will allow you to select your desired DMX channel
mode.
a) Press the ► button (Enter) until "Channel Mode" is displayed.
b) To select the desired DMX mode, press the ▲ (Up) or ▼
(Down) buttons.
c) To confirm and exit the menu press the key ► (Enter) or "OK"
d) Press the ◄ (Return) key to exit the selection without saving.
Pivoting - tilt inversion.
a) Press the ► button (Enter) until "Pan Invert" or "Tilt Invert" is
displayed.
b) Press the ▲ (Up) or ▼ (Down) buttons until "Yes" or "No" is
displayed.
c) To confirm and exit the menu press the key ► (Enter), or
"OK"
d) Press the ◄ (Return) key to exit the selection without saving.
Under PAN / TILT SWAP the channels Pan and Tilt can be
swapped.
