From a cable length of 300m or to 32 connected DMX devices, the signal should be amplified by means of a DMX
splitter / repeater (eg Involight DMXS4, DMXS6 or DMXS8) to ensure error-free data transmission.

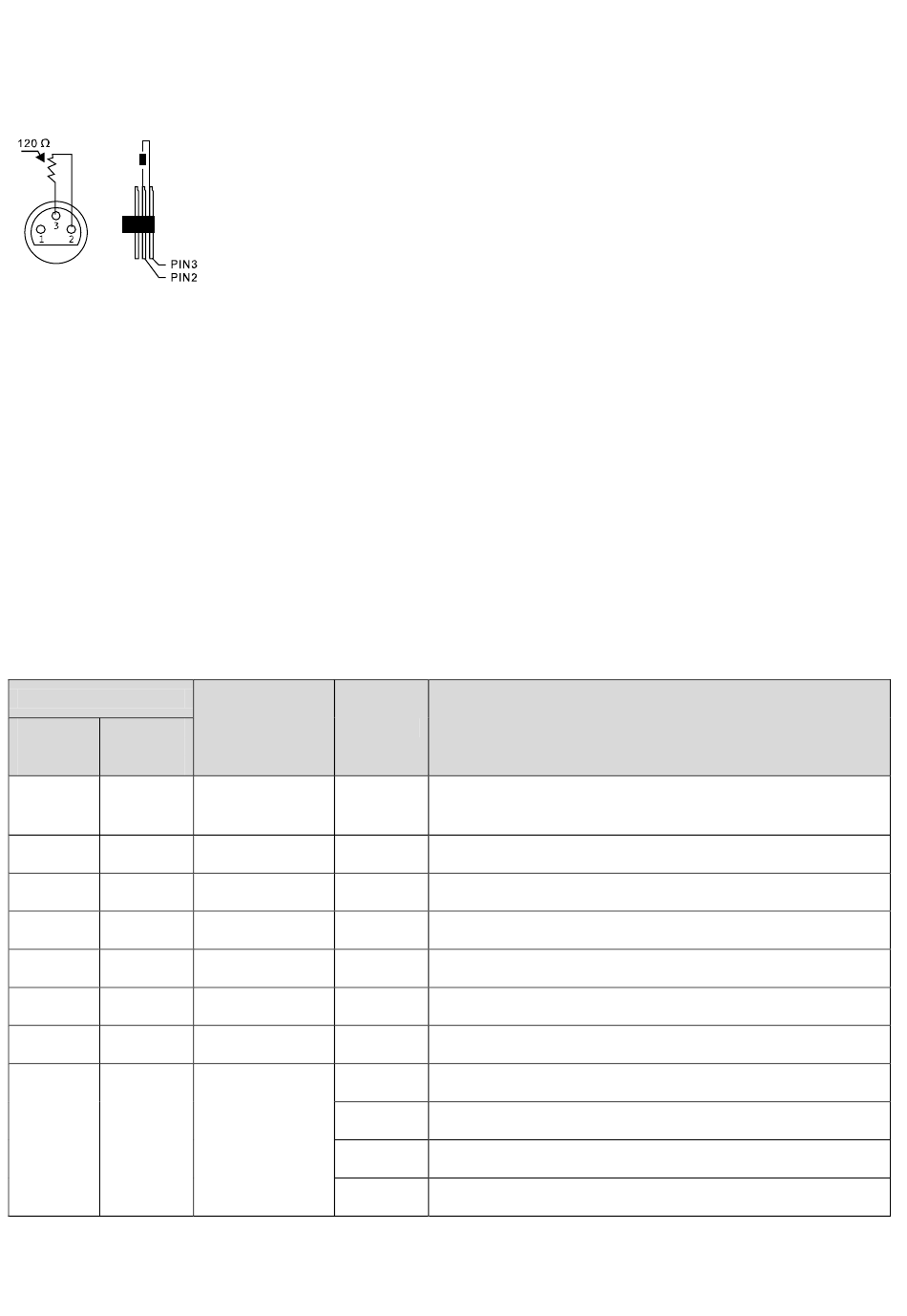

IMPORTANT: The last device in a DMX chain should have a terminator connected to terminate the chain. DMX
terminators are commercially available, but can also be built yourself. A 120 ohm resistor must be soldered in an XLR
plug between the two poles (+ and -).

3.5 Connections in "Master / Slave" mode

When you configure a group of devices in the "Master / Slave" mode, the first device controls the others and allows an
automatic or music-controlled and synchronized show. This feature is especially useful for starting a show without
great programming. Connect the DMX output of the master device to the DMX input of the first slave device. Then,
connect the DMX output of the first slave device to the DMX input of the second slave device, and so on.
3.6 Stand-alone operation.
The „LEDMH200S PRO" can also be used in stand-alone mode without a DMX controller. Disconnect the
„LEDMH200S PRO" from the controller and call the pre programmed program.

Part 4: DMX-Assignment.

The "TRINITY200LED occupies 11 or 13 DMX channels and can thus be flexibly controlled and programmed.
NOTE: Basic knowledge of the DMX512 control standard is required so that the device can be operated and
programmed correctly with a DMX controller
Mode/Channel
DMX DMX
Mode Mode
25CH 30CH
1 1
2 2
3 3
4 4
5 5
6 6
7
7 8
Function Value
PAN 0-255
PAN Fine 0-255
TILT 0-255
TILT Fine 0-255
Pan/Tilt Speed 0-255
Dimmer 0-255
Dimmer Fine 0-255
0-3
4-103
Strobe
104-107
108-207
Beschreibung
PAN rotation
PAN Fine rotation
TILT rotation
TILT Fine-rotation
PAN/TILT Speed
Dimmer 0-100%
Dimmer fine
Shutter closed
Strobe Effect, Speed increasing
No Strobe Effect (Shutter open)
Opening pulsation, increasing speed
