1. ON / OFF button.
2. Fuse holder for F8A 250V fuse.
3. Powercon compatible AC power input.
4. Powercon compatible mains power output.
5. 3-pin and 5-pin XLR output jack for routing the DMX control signal.
6. 3-pin and 5-pin XLR input jacks for connecting a DMX controller (such as DMX mixer).
When changing the fuse, always disconnect the mains plug and only use the specified fuse types!

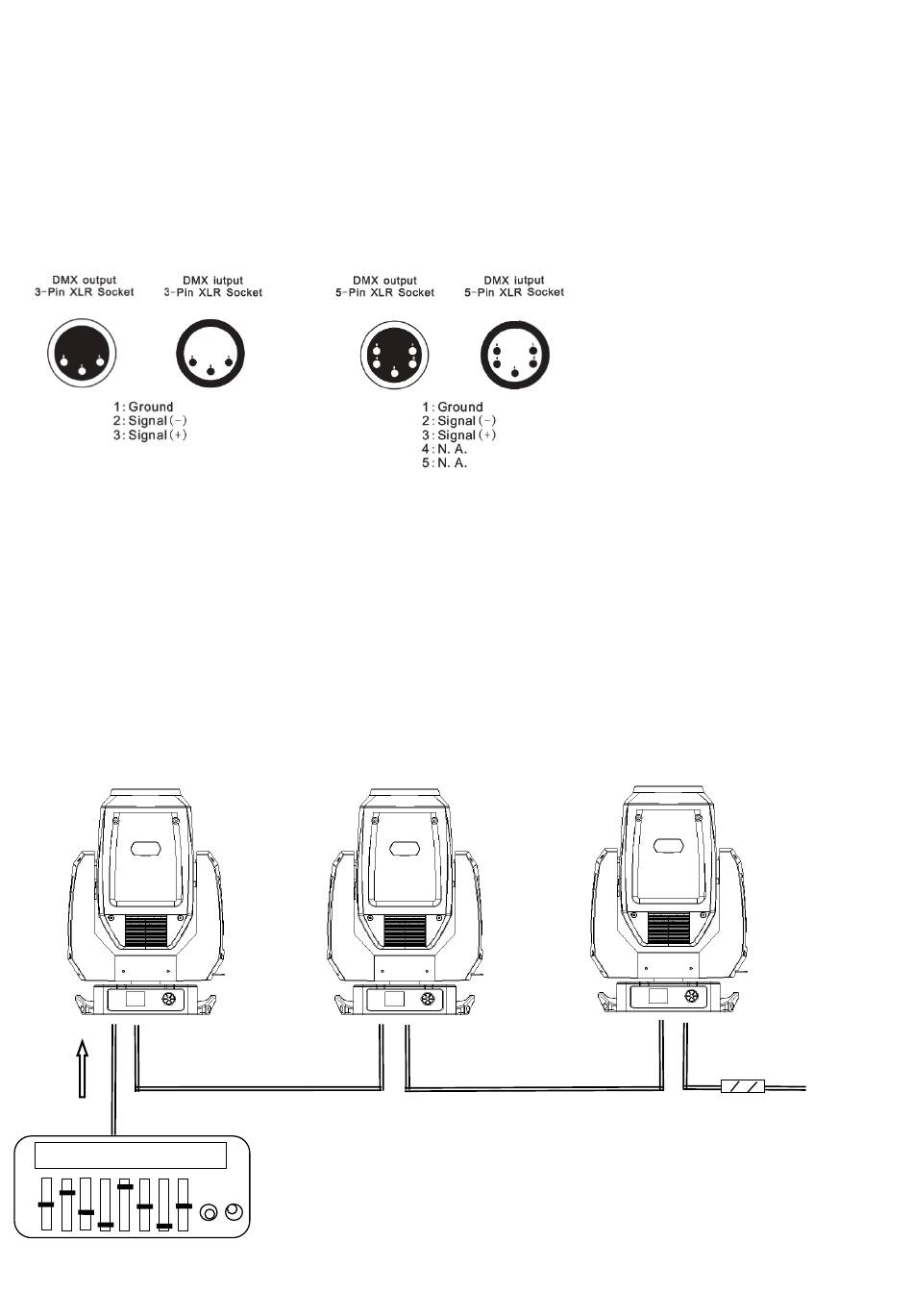

DMX connection in DMX mode:
An XLR jack serves as a DMX output, an XLR plug serves as a DMX input.
3-pin XLR- Connector:
Pin Function:
1. Ground
2. DMX-
3. DMX+
3.4 Connections in DMX mode „DMX".
DMX stands for Digital Multiplex and allows the digital control of several DMX devices via a common control line.
Connect the DMX input of the device to the DMX output of a DMX controller or another DMX device. Connect the
output of the first DMX device to the input of the second one and so on to form a series connection.
DMX512
5-pin XLR-Connector:
Pin Function:
1. Ground
2. DMX-
3. DMX+
4. free, or 2. connection (2nd link, optional) DMX
5. free, or 2. connection (2nd link, optional) DMX+
29
Ω
120
