COMPACT 3.0
3

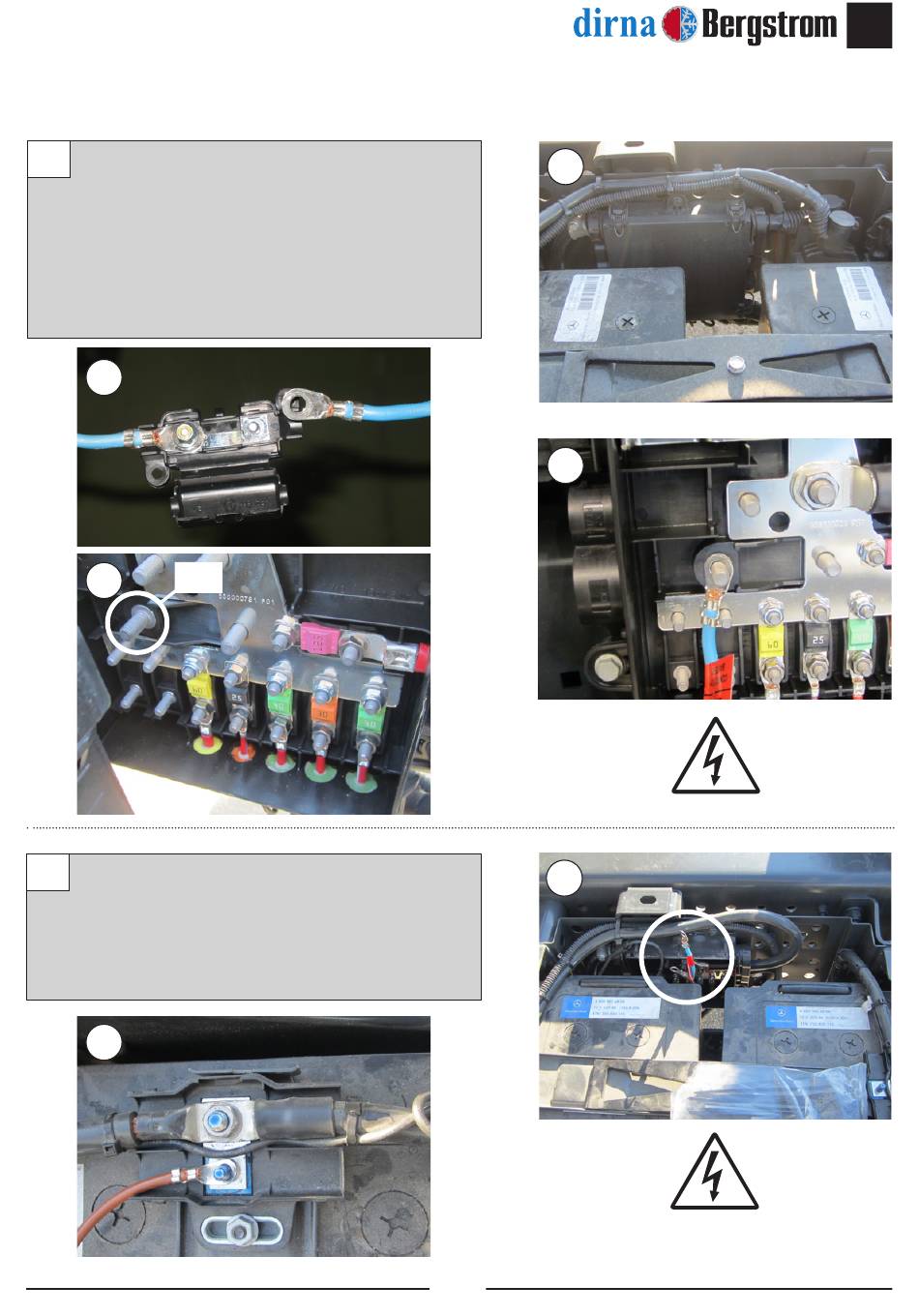

Lay the positive cable (blue) toward the
connections box (situated near the batteries) at
X3. Cut and remove any excess cabling, staple
the supplied Ø 6 terminal and connect with the
supplied fuse section and connect with the fuse
section. Secure the cable at X3 with a washer and
self-locking nut.
3
3 X3
4 Lay the negative cable (brown) toward the negative
terminal box situated next to the negative battery
terminal. Cut and remove any excess cabling,
staple the Ø 10 terminal and secure the cable with
a washer and self-locking nut.
4
Front batteries
33
3
3
4
