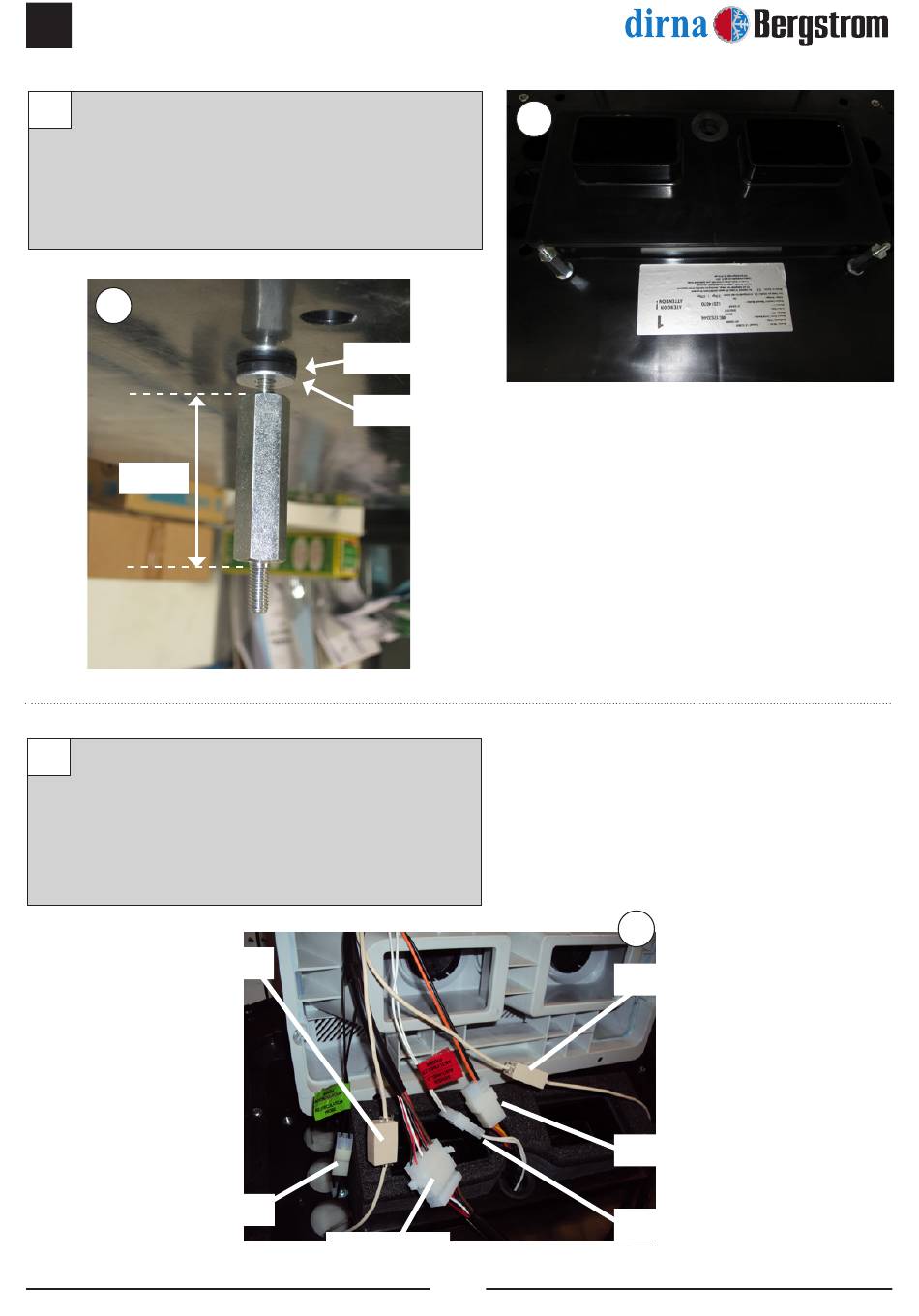

Position (1) Ø6 rubber washer, (2) Ø6 wide-rimmed
flat washers on hexagon L=47. Then tighten the
hexagon until the rubber washer is pressed slightly.
Note: The hexagons should be screwed to the
front of the unit as shown in the photos.
10
L=47
10b
Between the base and the interior air distribution
panel, connect (2) two-way boxes of the anti-
freeze sensor (white cables) and the return air
sensor (black cables), 4-way box of the blower,
(2) communication cables and 8-way box of the
electronic control connection cables.
communication cable
return air sensor
10
Rubber washer
Wide-rimmed washer
8-way box
26
10b
communication cable
Blower
Anti-freeze sensor
®
