dirna Bergstrom bycool COMPACT 3.0 RENAULT Montageanweisungen Seite 23

COMPACT 3.0

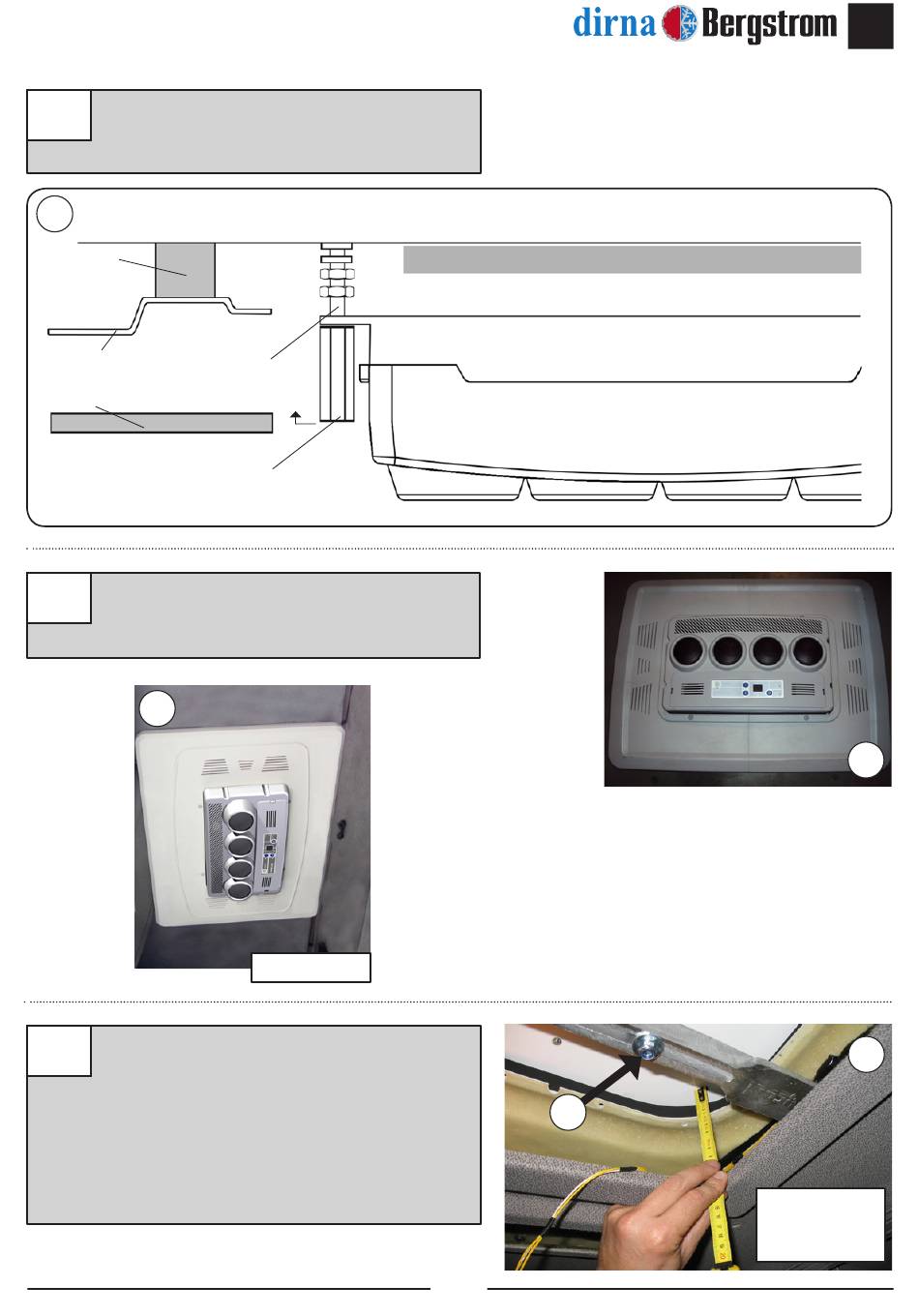

Position the interior air distribution panel on
13
the front studs with a hexagonal separator of
M6x25 on each stud.
13
EPDM
Gasket
Cabin roof
Upholstey
To present console and the equipment centred
14
on the best placement of the cabin roof .One
time centred to remove console.
14
Fasten supports tightening nuts until outside
15
EPDM joint (Point 3) of equipment is
compressed, between 3 and 6 mm.
Important: To avoid water from filtering inside
cabin, check EPDM joint tightening with
Compact base, as indicated on diagram. next
page.
Unit base
Stud M6
Hexagon M6x25
Renault premium
Interior air distribution panel
A
23
EN
®
Air duct top side
14
15
Check compression
thickness using a
tape measure in the
four corners.
