dirna Bergstrom bycool COMPACT 3.0 RENAULT Montageanweisungen Seite 22

COMPACT 3.0
EN
®

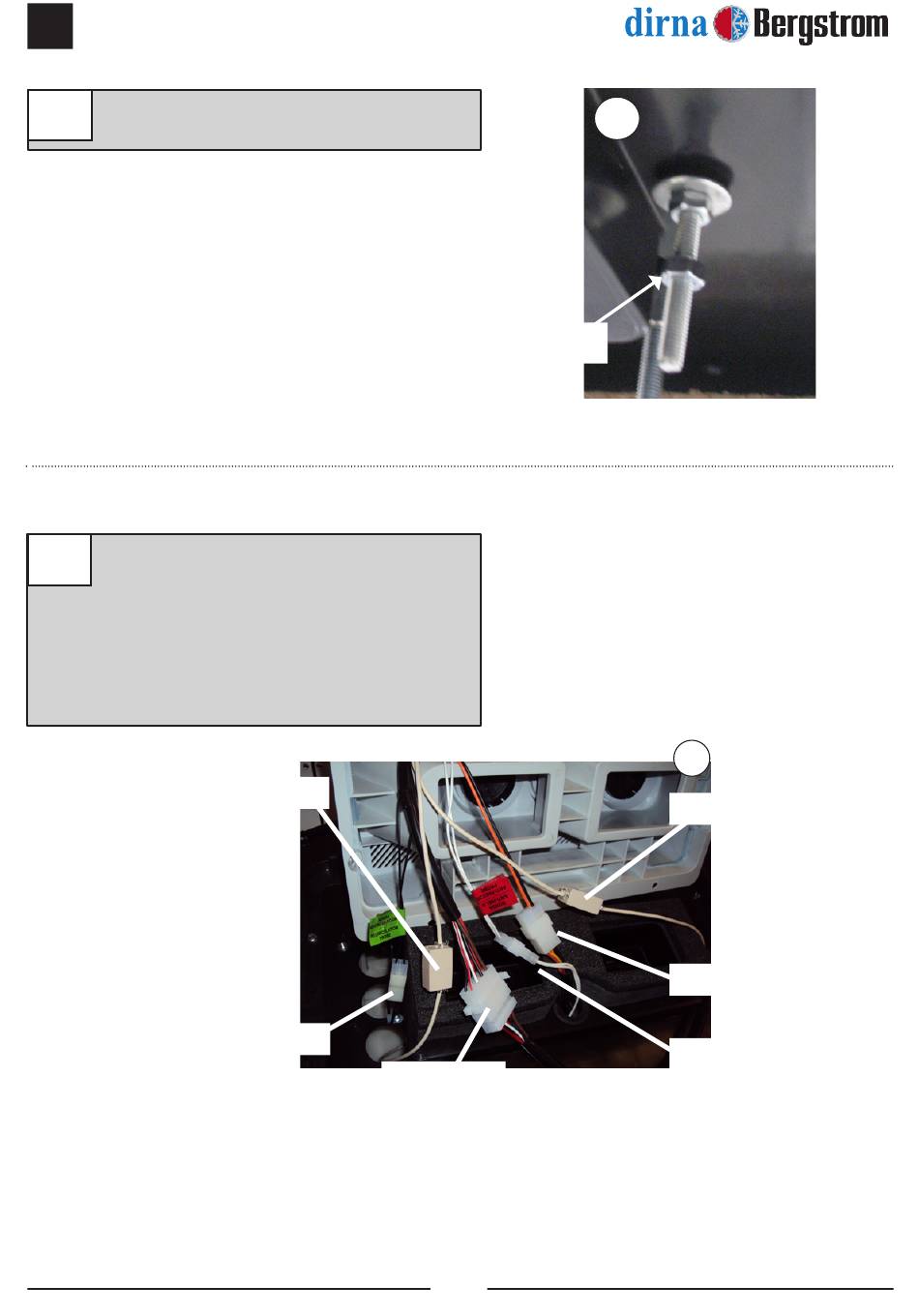

Place (2) fastening supports, with (1) washer
11
11
and (1) M6 nut, without tightening.
M6 nut
Between the base and the interior air
12
distribution panel, connect (2) two-way boxes
of the anti-freeze sensor (white cables) and
the return air sensor (black cables), 4-way box
of the blower, (2) communication cables and
8-way box of the electronic control connection
cables.
10b
communication cable
communication cable
Blower
return air sensor
Anti-freeze sensor
8-way box
