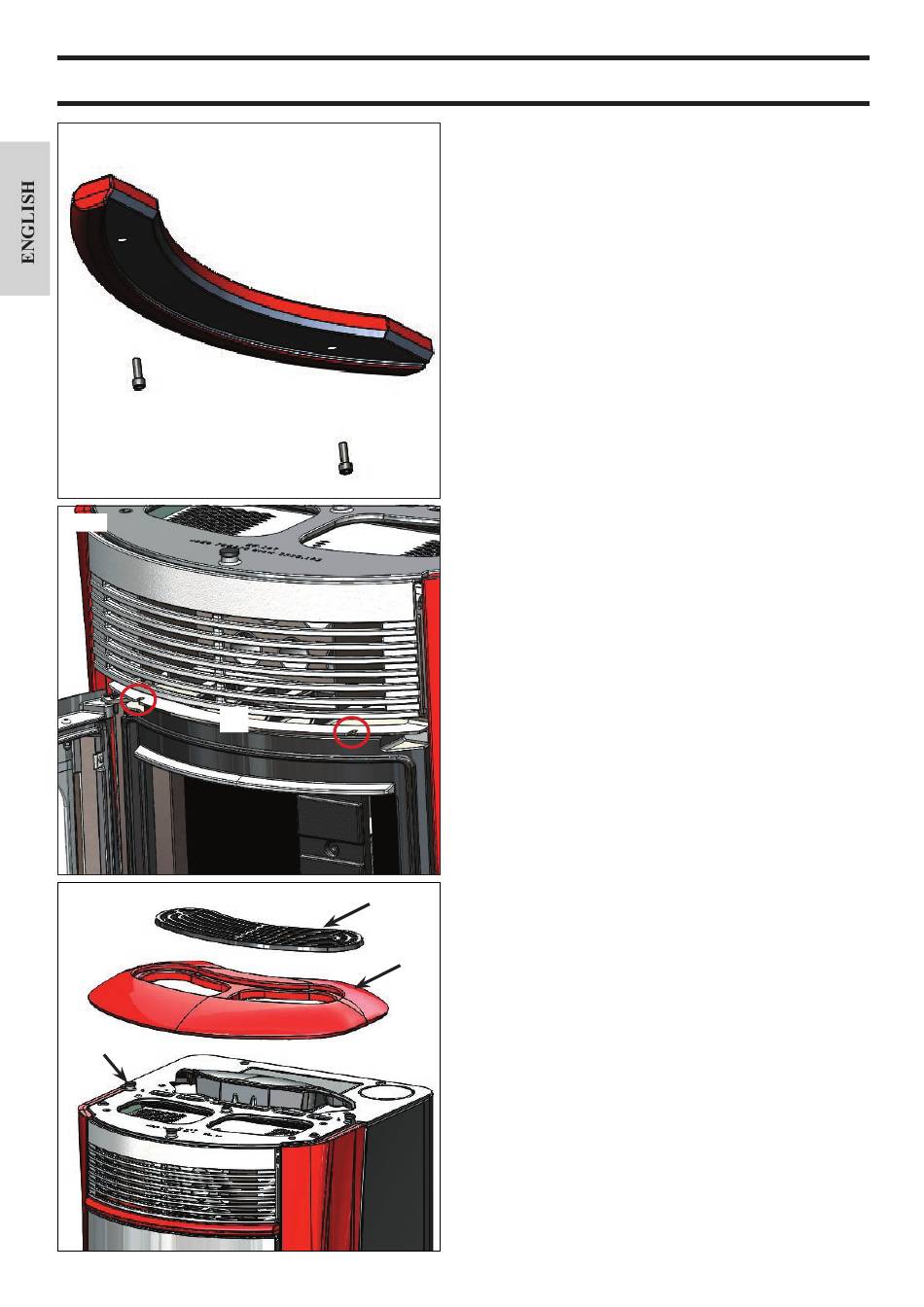

COVERING INSTALLATION
Fig. 7
fig. 7
Lightly tighten the 2 milled M4 pins provided on the back of the
upper ceramic element (H).
H
Fig. 8
fig. 8
Open the door and insert the upper ceramic element (H),
complete with milled pins, on the slots on the upper metal front
piece (E) and tighten by hand.
E
fig. 9
L
Fig. 9
Apply the 6 rubber pads (M) provided to the seats on the cast-
I iron top and position the ceramic top (I) and the cast-iron grate
(L).
M
1
2
4
6
3 5
