RAUTOOL M1

Using The TOOL

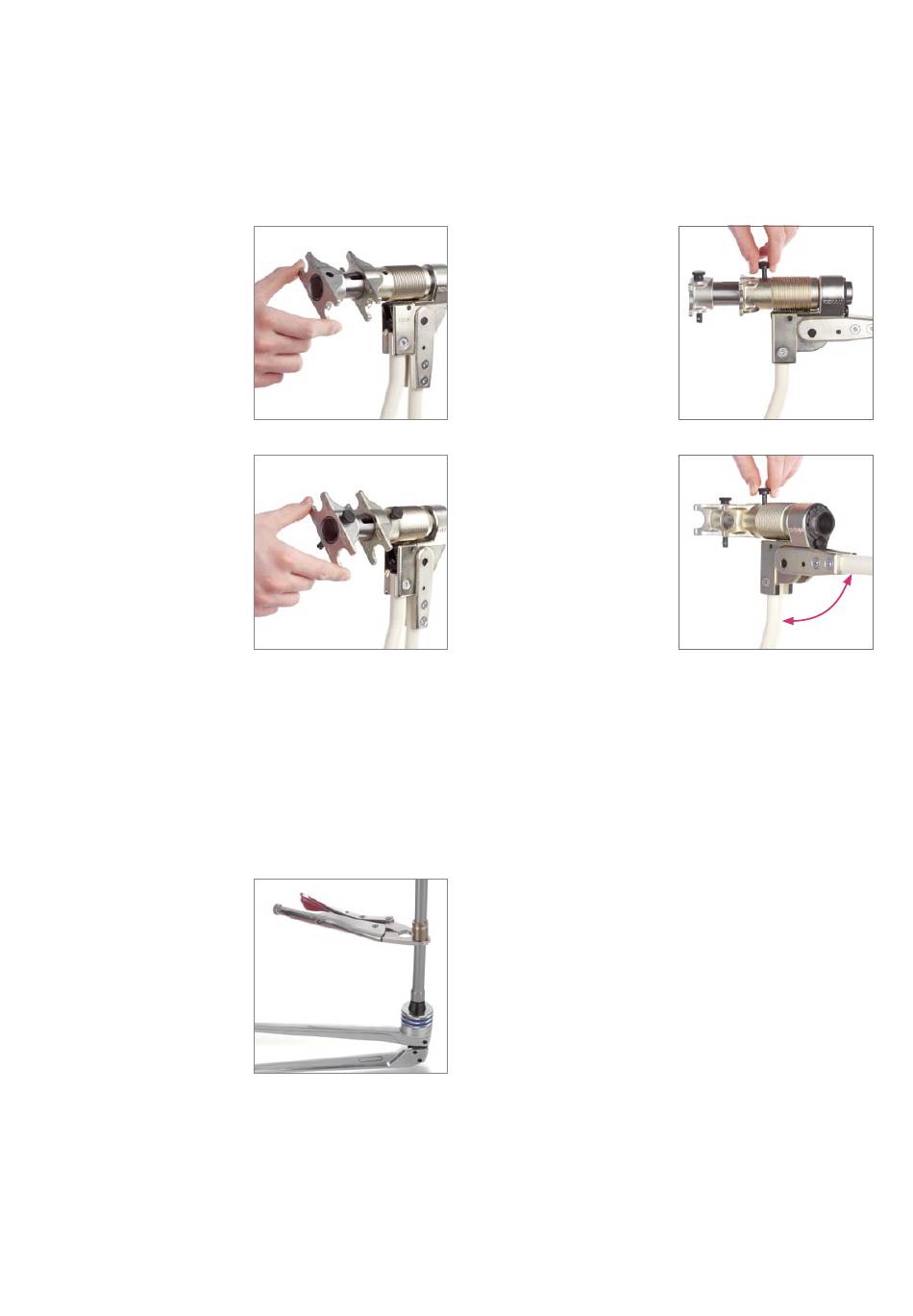

1. When fitting clamping jaws,
always push the long clamping
jaw on the tool cylinder first,
followed by the short clamping
jaw.
3. The clamping jaws are
brought into the correct position
by turning the tool cylinder.
With the pipe gripper, the
compression sleeve can be held
when manufacturing vertical
cables. The pipe gripper also
serves to push back and hold
insulation or corrugated tubing,
in order to create the required
space to produce compression
sleeve connections.
2. Then insert the short pin into
the long clamping jaw and the
long pin into the short clamping
jaw.
Attention!
To ensure that the double clam-
ping jaws (for example size 25)
are aligned identically, always
insert the pins all the way.
4. Exchange of clamping jaws
should always be carried out in
the starting position (maximum
deflection of the tool lever).
max.
