CoolFreeze
5

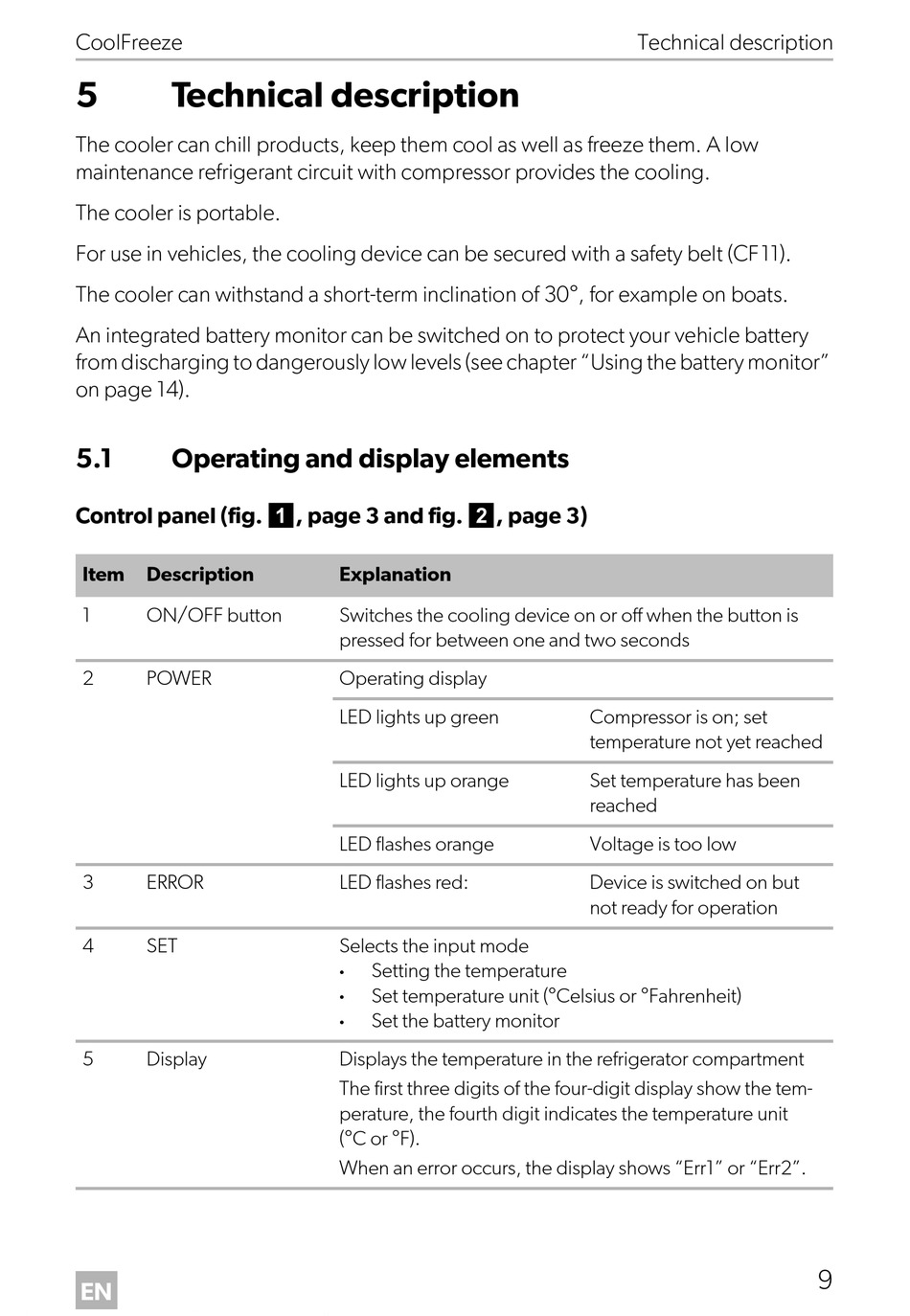

Technical description

The cooler can chill products, keep them cool as well as freeze them. A low
maintenance refrigerant circuit with compressor provides the cooling.
The cooler is portable.
For use in vehicles, the cooling device can be secured with a safety belt (CF11).
The cooler can withstand a short-term inclination of 30°, for example on boats.
An integrated battery monitor can be switched on to protect your vehicle battery
from discharging to dangerously low levels (see chapter "Using the battery monitor"
on page 14).
5.1

Operating and display elements

Control panel (fig. 1, page 3 and fig. 2, page 3)
Item Description
1 ON/OFF button
2 POWER
3 ERROR
4 SET
5 Display
EN
Explanation
Switches the cooling device on or off when the button is
pressed for between one and two seconds
Operating display
LED lights up green
LED lights up orange
LED flashes orange
LED flashes red:
Selects the input mode
•
Setting the temperature
•
Set temperature unit (°Celsius or °Fahrenheit)
•
Set the battery monitor
Displays the temperature in the refrigerator compartment
The first three digits of the four-digit display show the tem-
perature, the fourth digit indicates the temperature unit
(°C or °F).
When an error occurs, the display shows "Err1" or "Err2".
Technical description
Compressor is on; set
temperature not yet reached
Set temperature has been
reached
Voltage is too low
Device is switched on but
not ready for operation
9
