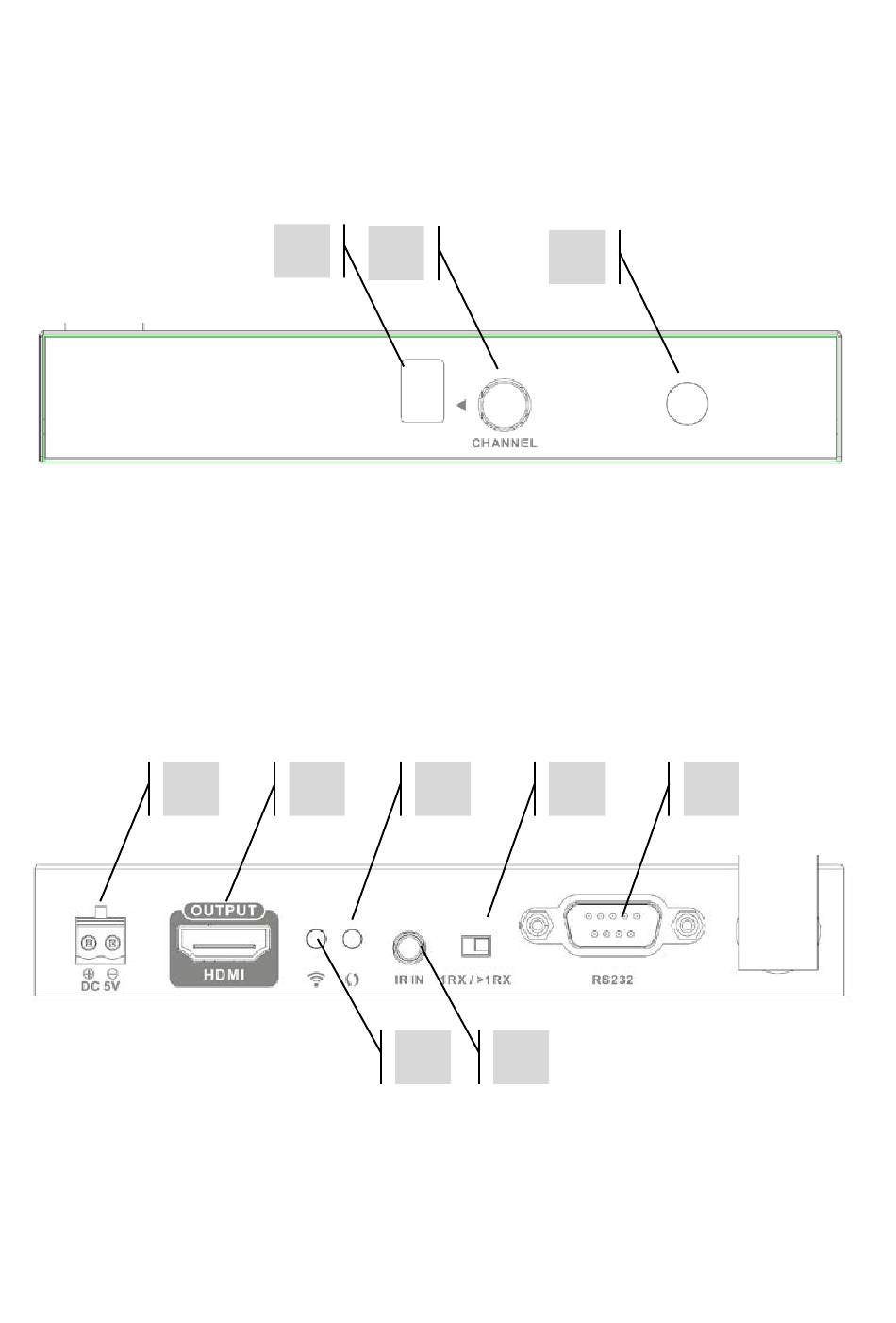

RECEIVER (Rx)
1. Channel LCD Display
2. Channel Select Button
3. IR receiver
1. Power Input (Phoenix Connector)
2. HDMI Output
3. Data Indicator – flashes slowly when establishing connection / fast when data transferring.
4. PRESENT button dip switch
5. Male 9-Pin RS-232 Serial connector for external control
6. Wireless Indicator – lights when Tx is correctly connected to Rx
7. IR Receiver 3.5mm minijack socket
1
1
2
2 3
6
3
4
7
