Specifications

Mechanics

Pan
Speed
Torque
Tilt
Speed
Torque
Maximum load
Protection
Potentiometer

General

Construction
Finish
Mounting pos.
Temperature

Dimensions

Weight
Cable diameter

Electric features

Power Supply
Wiring

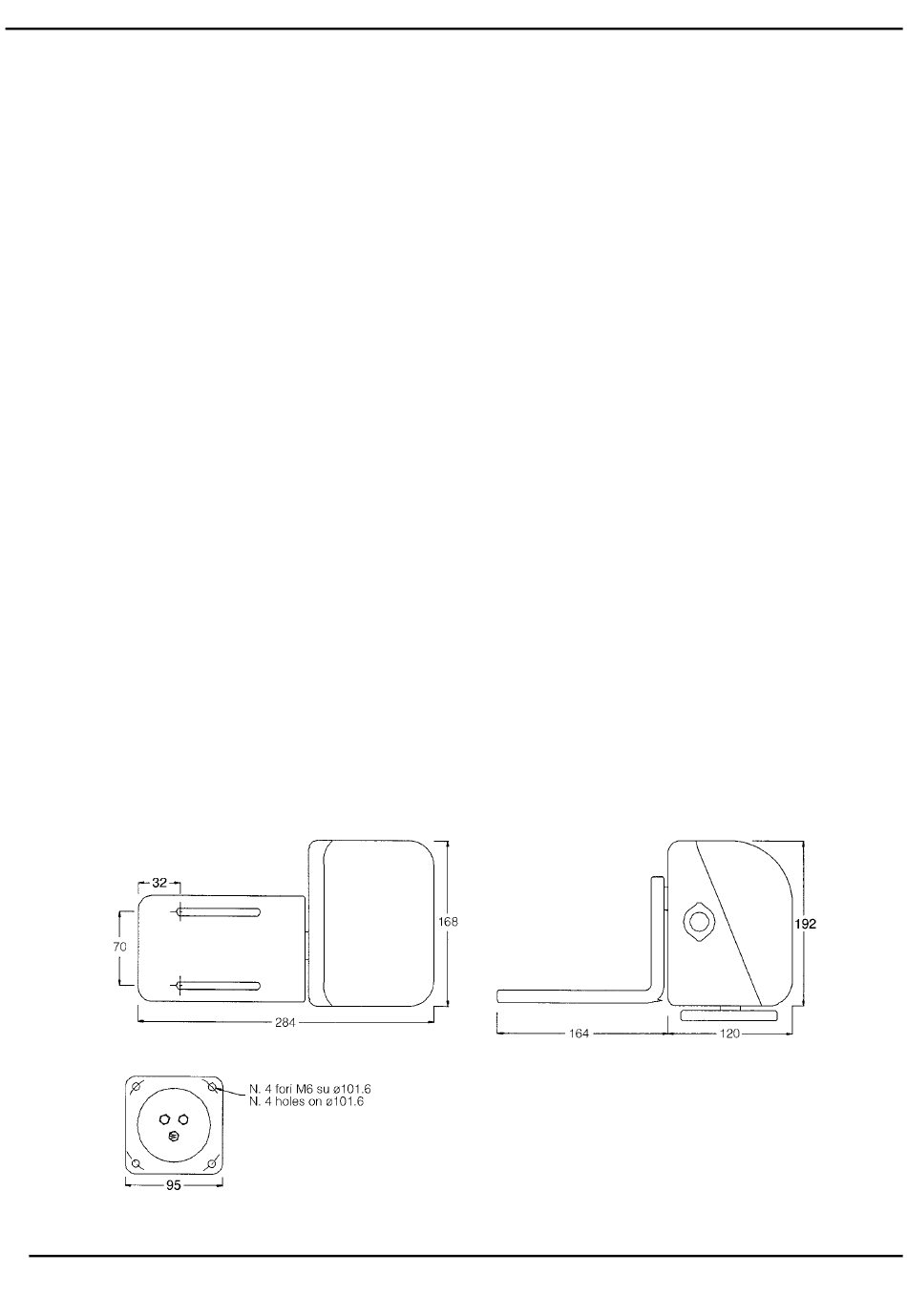

Dimensions
0-365° horizontal plane movement
6° per second
22 Nm at specified voltage
0-365° vertical plane movement
3° per second
40 Nm at specified voltage
30 Kg (66 lb) (balanced)
IP 66
Linear 5Kohm Multiturns (5 turns) - (only for PTH910P / PTH911P)
Aluminium die-cast
RAL9002 epoxy coat
normal/reverse
from -23°C to +60°C (from -10°F to 140°F)
125x221x180 mm
6.4 Kg (14 lb)
10 mm
PTH910 / PTH910P
PHH810
PTH911 / PTH911P
PHH811
7 cables 0.56mm.² (AWG 20) (Functions: left, right, up, down, common, autopan and earth).
4 cables 0.34mm.² (AWG 22) (Preset)
230 V~ 50/60 Hz
230 V~ 50/60 Hz
24 V~ 50/60 Hz
24 V~ 50/60 Hz
Pag. 11
26 W
13 W
26 W
13 W
PTH910 / PTH911 - PHH810 / PHH8119825
