Pan & tilt connection to DTMRX/DTRX receiver
WARNING: before the connection, make sure that the output voltage of the receiver corresponds to pan & tilt
voltage (Refer to the identification data of the pan & tilt motor and to DTMRX/DTRX manual).
Where to operate : J1 terminal block in the lower printed circuit of the pan & tilt motor (see drawing), terminal block of
the receiver (see DTMRX/ DTRX manual)
Adjustments : connect the terminal block J1 of the pan & tilt motor to that of the receiver according to the following table

Preset connection to DTRX receiver (only PTH910P / PTH911P)

The following procedure has to be carried out only for PRESET pan & tilt motors and only if DTRX receiver is
supplied with the optional card DTRP.

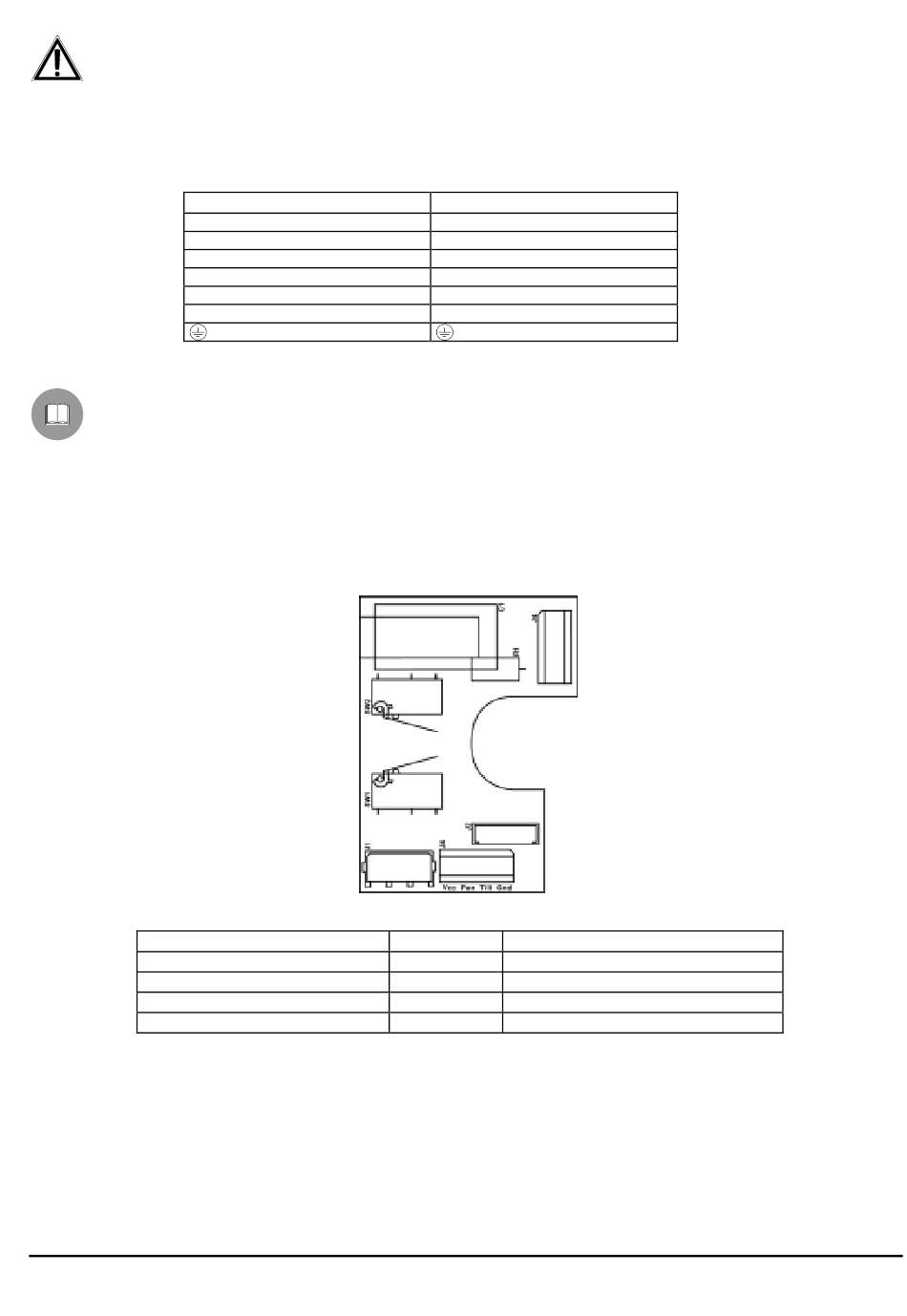

Where to operate : J4 terminal block in the upper printed circuit of the pan & tilt motor, terminal block of DTRP card
(see DTRX manual)
Adjustments : connect the J4 terminal block of the pan & tilt motor to the terminal block of DTRP card according to the
following table:
Connection to DTRP card
Vcc
Pan
Tilt
Gnd
Connection to the receiver
COM
DOWN
UP
RIGH
LEFT
AUTO
Terminal block J1 (Pan & Tilt)
Com
Down
Up
Right
Left
Auto
Meaning Terminal block J4 (Pan & Tilt)
+5 Volt Vcc
Horizontal Pan
Vertical Tilt
0 Volt Gnd
Pag. 9 PTH910 / PTH911 - PHH810 / PHH8119825
