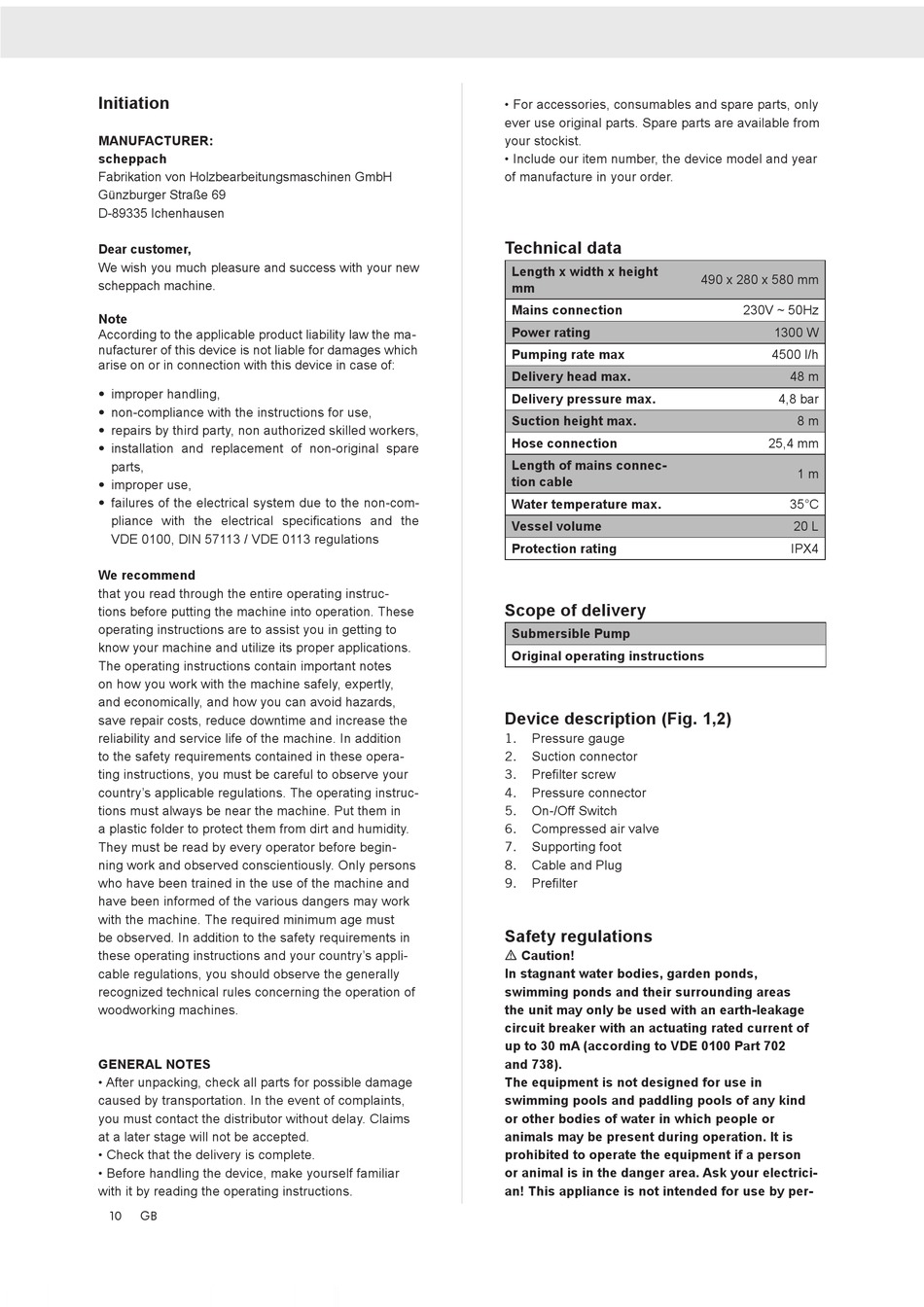

Scheppach WW1300-AB Originalbetriebsanleitung Seite 10

Initiation
MANUFACTURER:
scheppach
Fabrikation von Holzbearbeitungsmaschinen GmbH
Günzburger Straße 69
D-89335 Ichenhausen
Dear customer,
We wish you much pleasure and success with your new
scheppach machine.
Note
According to the applicable product liability law the ma-
nufacturer of this device is not liable for damages which
arise on or in connection with this device in case of:
• improper handling,
• non-compliance with the instructions for use,
• repairs by third party, non authorized skilled workers,
• installation and replacement of non-original spare
parts,
• improper use,
• failures of the electrical system due to the non-com-
VDE 0100, DIN 57113 / VDE 0113 regulations
We recommend
that you read through the entire operating instruc-
tions before putting the machine into operation. These
operating instructions are to assist you in getting to
know your machine and utilize its proper applications.
The operating instructions contain important notes
on how you work with the machine safely, expertly,
and economically, and how you can avoid hazards,
save repair costs, reduce downtime and increase the
reliability and service life of the machine. In addition
to the safety requirements contained in these opera-
ting instructions, you must be careful to observe your
country's applicable regulations. The operating instruc-
tions must always be near the machine. Put them in
a plastic folder to protect them from dirt and humidity.
They must be read by every operator before begin-
ning work and observed conscientiously. Only persons
who have been trained in the use of the machine and
have been informed of the various dangers may work
with the machine. The required minimum age must
be observed. In addition to the safety requirements in
these operating instructions and your country's appli-
cable regulations, you should observe the generally
recognized technical rules concerning the operation of
woodworking machines.
GENERAL NOTES
• After unpacking, check all parts for possible damage
caused by transportation. In the event of complaints,
you must contact the distributor without delay. Claims
at a later stage will not be accepted.
• Check that the delivery is complete.
• Before handling the device, make yourself familiar
with it by reading the operating instructions.
10 GB
• For accessories, consumables and spare parts, only
ever use original parts. Spare parts are available from
your stockist.
• Include our item number, the device model and year
of manufacture in your order.
Technical data
Length x width x height
mm
Mains connection
Power rating
Pumping rate max
Delivery head max.
Delivery pressure max.
Suction height max.
Hose connection
Length of mains connec-
tion cable
Water temperature max.
Vessel volume
Protection rating
Scope of delivery
Submersible Pump
Original operating instructions
Device description (Fig. 1,2)
Pressure gauge
1.
2. Suction connector
3.
4. Pressure connector
5. On-/Off Switch
6. Compressed air valve
7. Supporting foot
8. Cable and Plug
9.
Safety regulations
m Caution!
In stagnant water bodies, garden ponds,
swimming ponds and their surrounding areas
the unit may only be used with an earth-leakage
circuit breaker with an actuating rated current of
up to 30 mA (according to VDE 0100 Part 702
and 738).
The equipment is not designed for use in
swimming pools and paddling pools of any kind
or other bodies of water in which people or
animals may be present during operation. It is
prohibited to operate the equipment if a person
or animal is in the danger area. Ask your electrici-
an! This appliance is not intended for use by per-
490 x 280 x 580 mm
230V ~ 50Hz
1300 W
4500 l/h
48 m
4,8 bar
8 m
25,4 mm
1 m
35°C
20 L
IPX4
