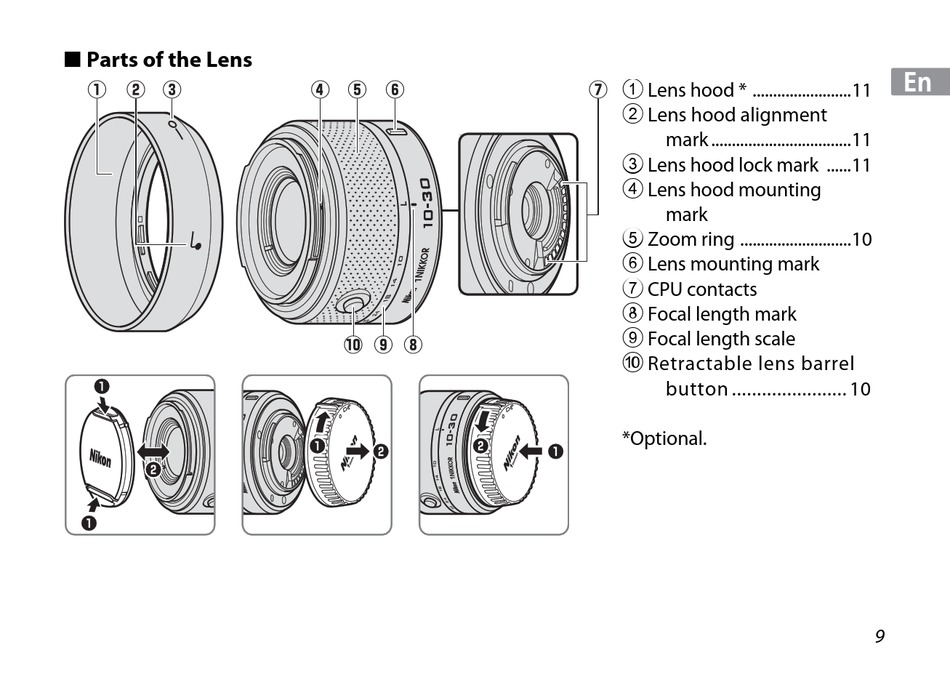

■ Parts of the Lens
q w e r t y
!0 o i
1 Lens hood * ........................11
u
2 Lens hood alignment
mark ..................................11
3 Lens hood lock mark ......11
4 Lens hood mounting
mark
5 Zoom ring ...........................10
6 Lens mounting mark
7 CPU contacts
8 Focal length mark
9 Focal length scale
0 Retractable lens barrel
button ....................... 10
*Optional.
9
