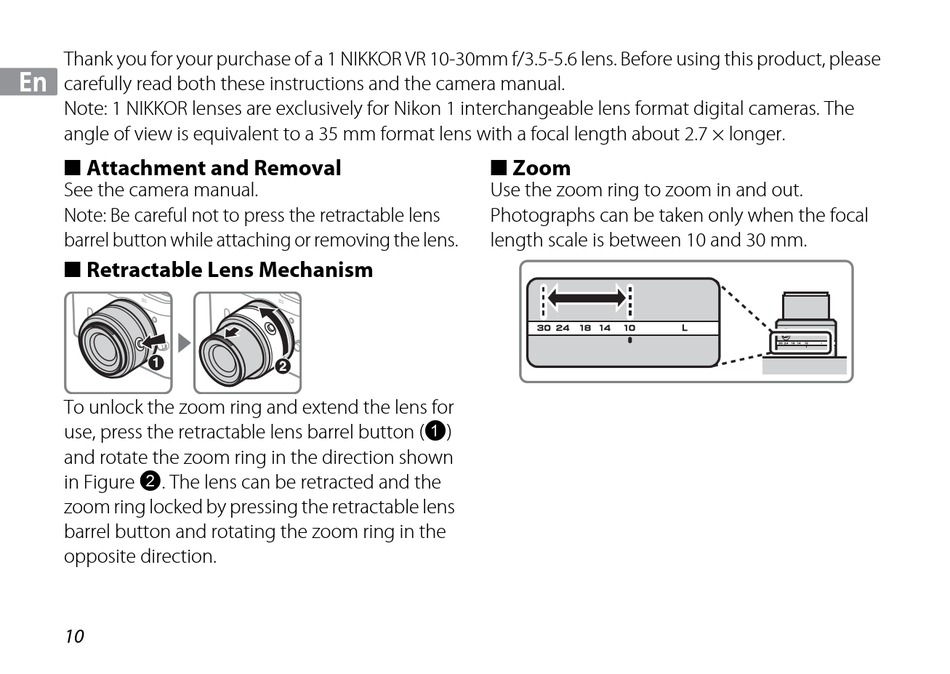

Thank you for your purchase of a 1 NIKKOR VR 10-30mm f/3.5-5.6 lens. Before using this product, please
carefully read both these instructions and the camera manual.
Note: 1 NIKKOR lenses are exclusively for Nikon 1 interchangeable lens format digital cameras. The
angle of view is equivalent to a 35 mm format lens with a focal length about 2.7 × longer.
■ Attachment and Removal
See the camera manual.
Note: Be careful not to press the retractable lens
barrel button while attaching or removing the lens.
■ Retractable Lens Mechanism
To unlock the zoom ring and extend the lens for
use, press the retractable lens barrel button (1)
and rotate the zoom ring in the direction shown
in Figure 2. The lens can be retracted and the
zoom ring locked by pressing the retractable lens
barrel button and rotating the zoom ring in the
opposite direction.
10
■ Zoom
Use the zoom ring to zoom in and out.
Photographs can be taken only when the focal
length scale is between 10 and 30 mm.
