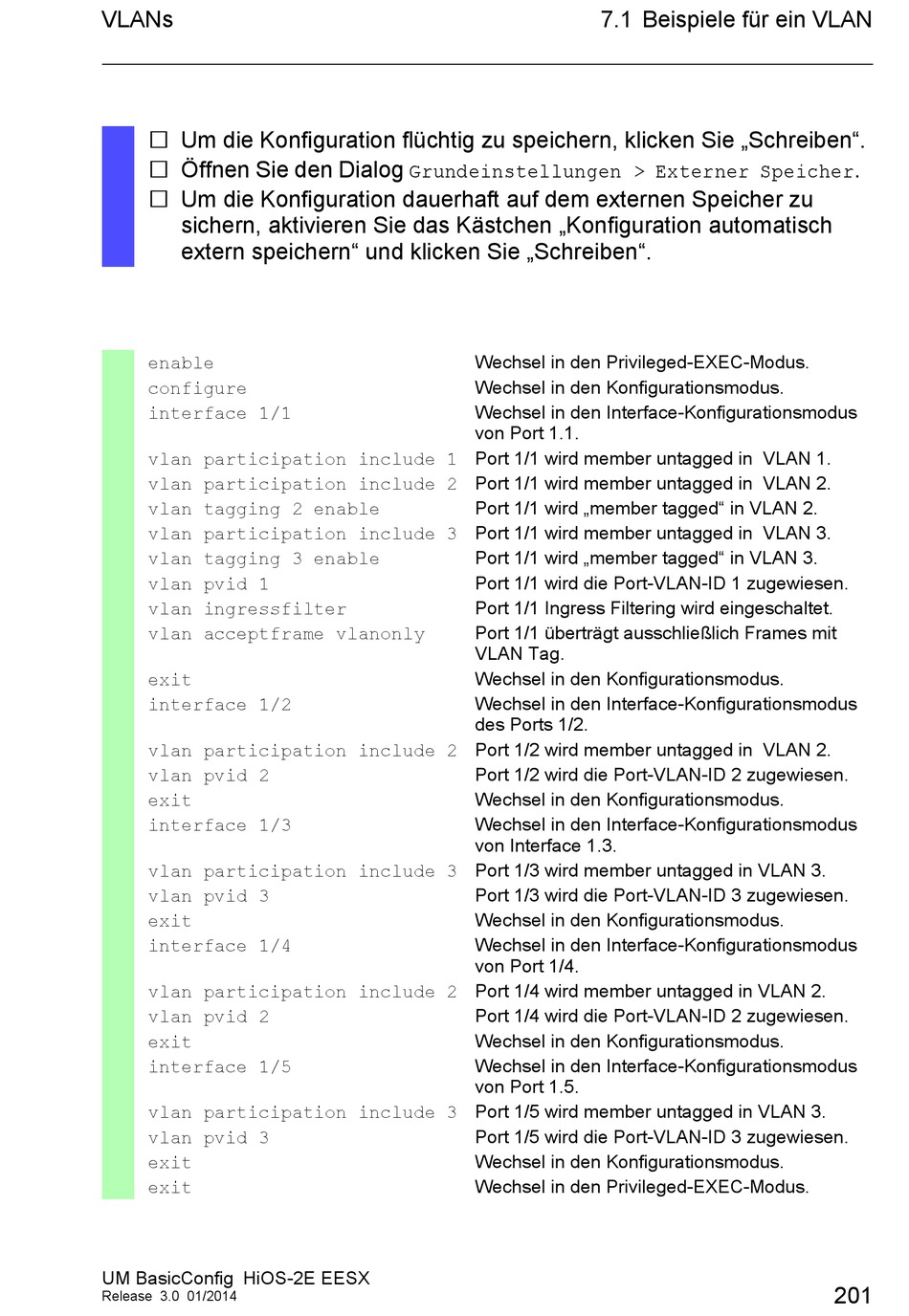

VLANs
Um die Konfiguration flüchtig zu speichern, klicken Sie „Schreiben".
Öffnen Sie den Dialog
Um die Konfiguration dauerhaft auf dem externen Speicher zu
sichern, aktivieren Sie das Kästchen „Konfiguration automatisch
extern speichern" und klicken Sie „Schreiben".
enable
configure
interface 1/1
vlan participation include 1 Port 1/1 wird member untagged in VLAN 1.
vlan participation include 2 Port 1/1 wird member untagged in VLAN 2.
vlan tagging 2 enable
vlan participation include 3 Port 1/1 wird member untagged in VLAN 3.
vlan tagging 3 enable
vlan pvid 1
vlan ingressfilter
vlan acceptframe vlanonly
exit
interface 1/2
vlan participation include 2 Port 1/2 wird member untagged in VLAN 2.
vlan pvid 2
exit
interface 1/3
vlan participation include 3 Port 1/3 wird member untagged in VLAN 3.
vlan pvid 3
exit
interface 1/4
vlan participation include 2 Port 1/4 wird member untagged in VLAN 2.
vlan pvid 2
exit
interface 1/5
vlan participation include 3 Port 1/5 wird member untagged in VLAN 3.
vlan pvid 3
exit
exit
UM BasicConfig HiOS-2E EESX
Release 3.0 01/2014
Grundeinstellungen > Externer Speicher
Wechsel in den Privileged-EXEC-Modus.
Wechsel in den Konfigurationsmodus.
Wechsel in den Interface-Konfigurationsmodus
von Port 1.1.
Port 1/1 wird „member tagged" in VLAN 2.
Port 1/1 wird „member tagged" in VLAN 3.
Port 1/1 wird die Port-VLAN-ID 1 zugewiesen.
Port 1/1 Ingress Filtering wird eingeschaltet.
Port 1/1 überträgt ausschließlich Frames mit
VLAN Tag.
Wechsel in den Konfigurationsmodus.
Wechsel in den Interface-Konfigurationsmodus
des Ports 1/2.
Port 1/2 wird die Port-VLAN-ID 2 zugewiesen.
Wechsel in den Konfigurationsmodus.
Wechsel in den Interface-Konfigurationsmodus
von Interface 1.3.
Port 1/3 wird die Port-VLAN-ID 3 zugewiesen.
Wechsel in den Konfigurationsmodus.
Wechsel in den Interface-Konfigurationsmodus
von Port 1/4.
Port 1/4 wird die Port-VLAN-ID 2 zugewiesen.
Wechsel in den Konfigurationsmodus.
Wechsel in den Interface-Konfigurationsmodus
von Port 1.5.
Port 1/5 wird die Port-VLAN-ID 3 zugewiesen.
Wechsel in den Konfigurationsmodus.
Wechsel in den Privileged-EXEC-Modus.
7.1 Beispiele für ein VLAN
.
