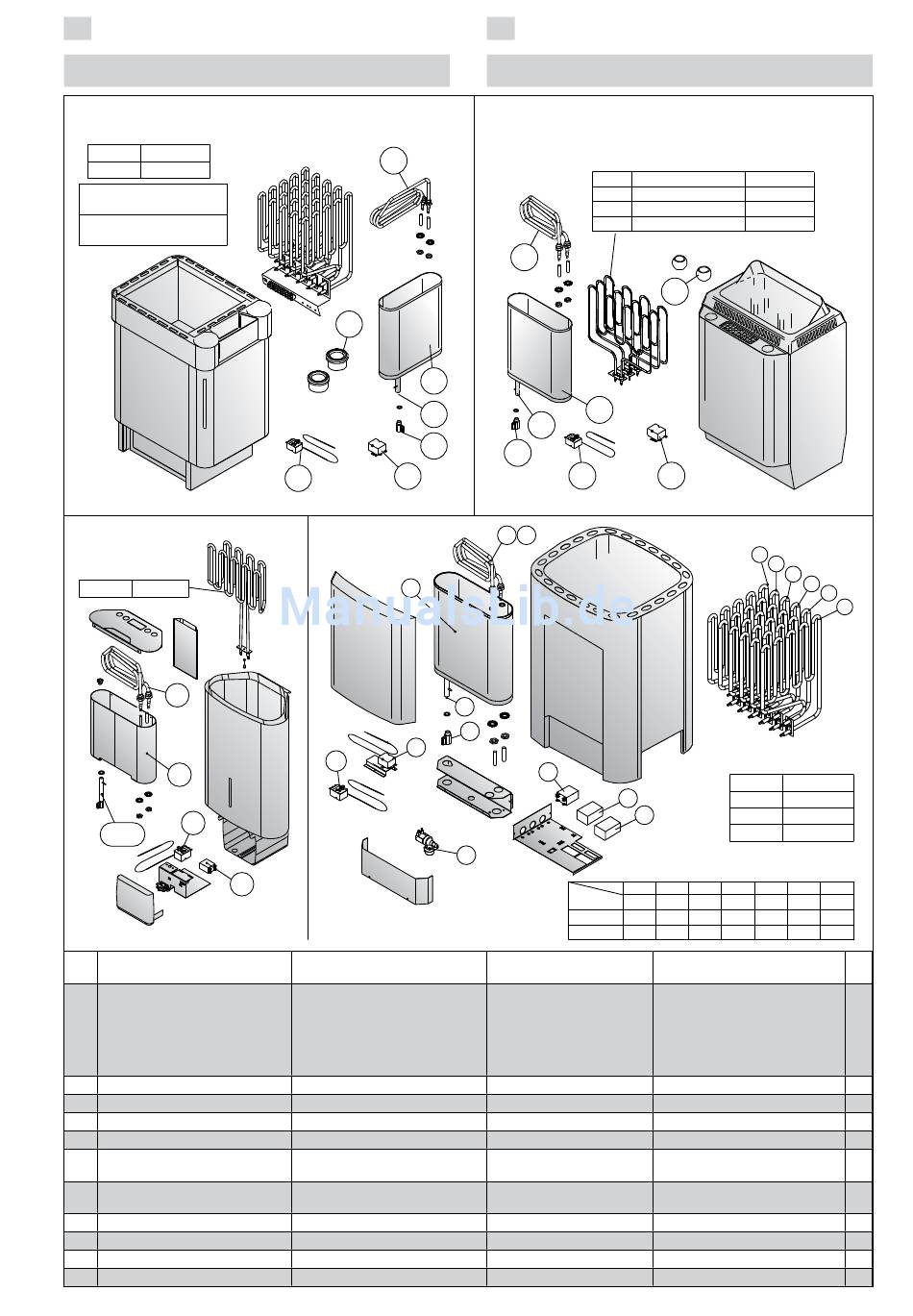

4. SPARE PARTS

T7C-T9C
T7CA-T9CA
1500 W ZSS-110
2000 W ZSS-120
T9C: A, C, E = 2000 W
B, D = 1500 W
T7C: B, E = 2000 W
C, D = 1500 W
D29SE
2900 W ZSN-210
1
2
6
3+4
8
1 Evaporator heating element,
assembled
2 Water reservoir, assembled
3 Drain pipe, assembled
4 Tap
5 Overheating protector
6 Thermostat 110 ˚C
7 Soapstone cup
8 Relay K2
9 Contactor
10 Contactor
11 Power relay
12 MG valve
1
A
B
C
D
E
7
2
3
4
5
6
K11GS-K15GS
2
3
5
6
12
Heizelement des Verdampfers,
montiert
Wassertank, montiert
Entleerungsrohr, montiert
Hahn
Überhitzungsschutz
Thermostat 110 ˚C
Specksteinbecher
Relais K2
Kontaktgeber
Kontakgeber
Leistungsrelais
Magnetventil
DE

4. ERSATZTEILE

KV50SE-KV90SE
KV50SEA-KV90SEA
KV50 3 x 1500 W/230 V
KV60 3 x 2000 W/230 V
KV80 3 x 2670 W/230 V
KV90 3 x 3000 W/230 V
1
2
3
4
6
G 1
4
11
9
10
W A
TYP
K11GS 1500
K13.5GS 2500
K15GS 2500 2500 2500 2500 2500 2500
2000 W/230 V
1/4
ø75/50 T7C-T9C
ø46/36 KV50SE-KV90SE
WI-08102/A
ZSK-690
ZSK-700
ZSK-710
ZSK-720
7
5
F
E
D
C
B
1500 W ZSS-110
2000 W
ZSS-120
2150 W ZSP-240
2500 W ZSP-250
B C D E F
2150 1500 2150 1500 2150 2000
2000 2500 2000 2500 2000 2000
2000
ZH-104
D29SE: ZSN-242
KV50SE-KV90SE: ZSVH-6
KV50SEA-KV90SEA: ZSVH-7
T7C-T9C: ZSS-405
T7CA-T9CA: ZSS-400
K11GS-K15GS: ZSL-795B
ZH-110
ZH-130
ZSK-764
ZSN-250
ZSS-505
ZH-205
ZSF-730
ZSL-940/ZSK-778
ZSL-750/ZSK-778
ZSL-760
ZSS-610
A
G
1
1
1
1
1
1
2
2
1
1
1
1
1
