8

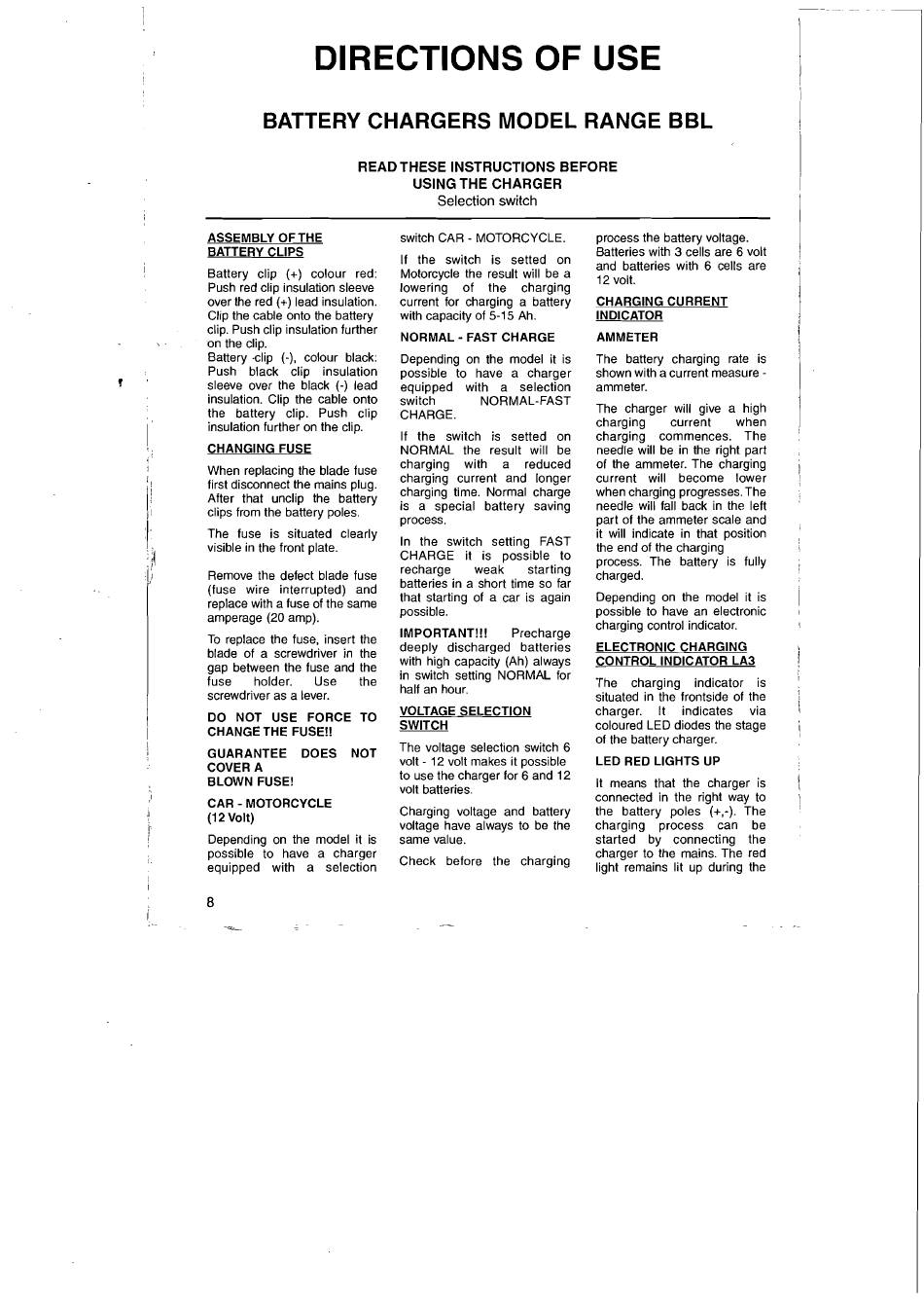

DIRECTIONS OF USE
BATTERY CHARGERS MODEL RANGE BBl
READ THESE INSTRUCTIONS BEFORE
USING THE CHARGER
Selection switch
ASSEMBLY OFTHE
BATTERY CLIPS
Battery clip (+) colour red:
Push red clip insulation sleeve
over the red (+) lead insulation.
Clip the cable onto the battery
clip. Push clip insulation further
on the clip.
Battery -clip (-), colour black:
Push
black
clip
insulation
sleeve over the black (-) lead
insulation. Clip the cable onto
the battery clip. Push clip
insulation further on the clip.
CHANGING FUSE
When replacing the blade fuse
first disconnect the mains plug.
After that unclip the battery
clips from the battery poles.
The fuse is situated clearly
visible in the front plate.
Remove the defect blade fuse
(fuse wire interrupted) and
replace with a fuse of the same
amperage (20 amp).
To replace the fuse, insert the
blade of a screwdriver in the
gap between the fuse and the
fuse
holder.
Use
the
screwdriver as a lever.
DO NOT USE FORCE TO
CHANGE THE FUSE!!
GUARANTEE
DOES
NOT
COVER A
BLOWN FUSE!
CAR - MOTORCYCLE
(12
Volt)
Depending on the model it is
possible to have a charger
equipped
with
a selection
switch CAR - MOTORCYCLE.
If the switch is setted on
Motorcycle the result will be a
lowering
of
the
charging
current for charging a battery
with capacity of 5-15 Ah.
NORMAL - FAST CHARGE
Depending on the model it is
possible to have a charger
equipped
with
a selection
switch
NORMAL-FAST
CHARGE.
If the switch is setted on
NORMAL the result will be
charging
with
a
reduced
charging current and longer
charging time. Normal charge
is a special battery saving
process.
In the switch setting FAST
CHARGE it is possible to
recharge
weak
starting
batteries in a short time so far
that starting of a car is again
possible.
IMPORTANT!!!
Precharge
deeply discharged batteries
with high capacity (Ah) always
in switch setting NORMAL for
half an hour.
VOLTAGE SELECTION
SWITCH
The voltage selection switch
6
volt -
12
volt makes it possible
to use the charger for
6
and
12
volt batteries.
Charging voltage and battery
voltage have always to be the
same value.
Check before the charging
process the battery voltage.
Batteries with 3 cells are 6 volt
and batteries with
6
cells are
12
volt.
CHARGING CURRENT
INDICATOR
AMMETER
The battery charging rate is
shown with a current measure ­
ammeter.
The charger will give a high
charging
current
when
charging
commences.
The
needle will be in the right part
of the ammeter. The charging
current will
become lower
when charging progresses. The
needle will fall back in the left
part of the ammeter scale and
it will indicate in that position
the end of the charging
process. The battery is fUlly
charged.
Depending on the model it is
possible to have an electronic
charging control indicator.
ELECTRONIC CHARGING
CONTROL INDICATOR LA3
The
charging
indicator
is
situated in the frontside of the
charger.
It
indicates
via
coloured LED diodes the stage
of the battery charger.
LED RED LIGHTS UP
It means that the charger is
connected in the right way to
the battery poles (+,-). The
charging
process
can
be
started
by connecting
the
charger to the mains. The red
light remains lit up during the

Werbung

loading
