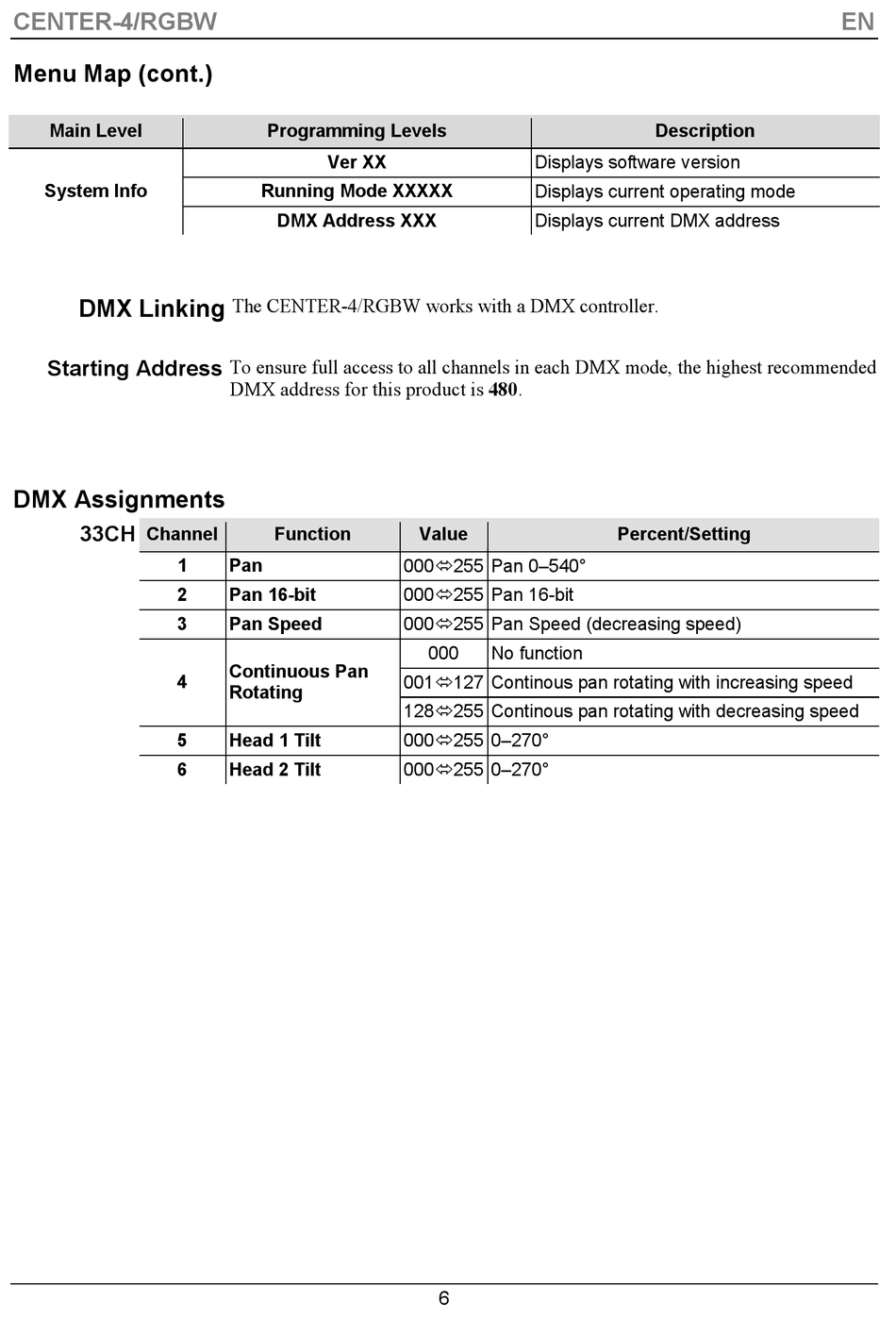

CENTER-4/RGBW
Menu Map (cont.)
Main Level
System Info

DMX Linking

Starting Address
DMX Assignments
33CH
Channel
1
2
3
4
5
6
Programming Levels
Ver XX
Running Mode XXXXX
DMX Address XXX
The CENTER-4/RGBW works with a DMX controller.
To ensure full access to all channels in each DMX mode, the highest recommended
DMX address for this product is 480.
Function
Pan
Pan 16-bit
Pan Speed
Continuous Pan
Rotating
Head 1 Tilt
Head 2 Tilt
Displays software version
Displays current operating mode
Displays current DMX address
Value
000255 Pan 0–540°
000255 Pan 16-bit
000255 Pan Speed (decreasing speed)
000 No function
001127 Continous pan rotating with increasing speed
128255 Continous pan rotating with decreasing speed
000255 0–270°
000255 0–270°
