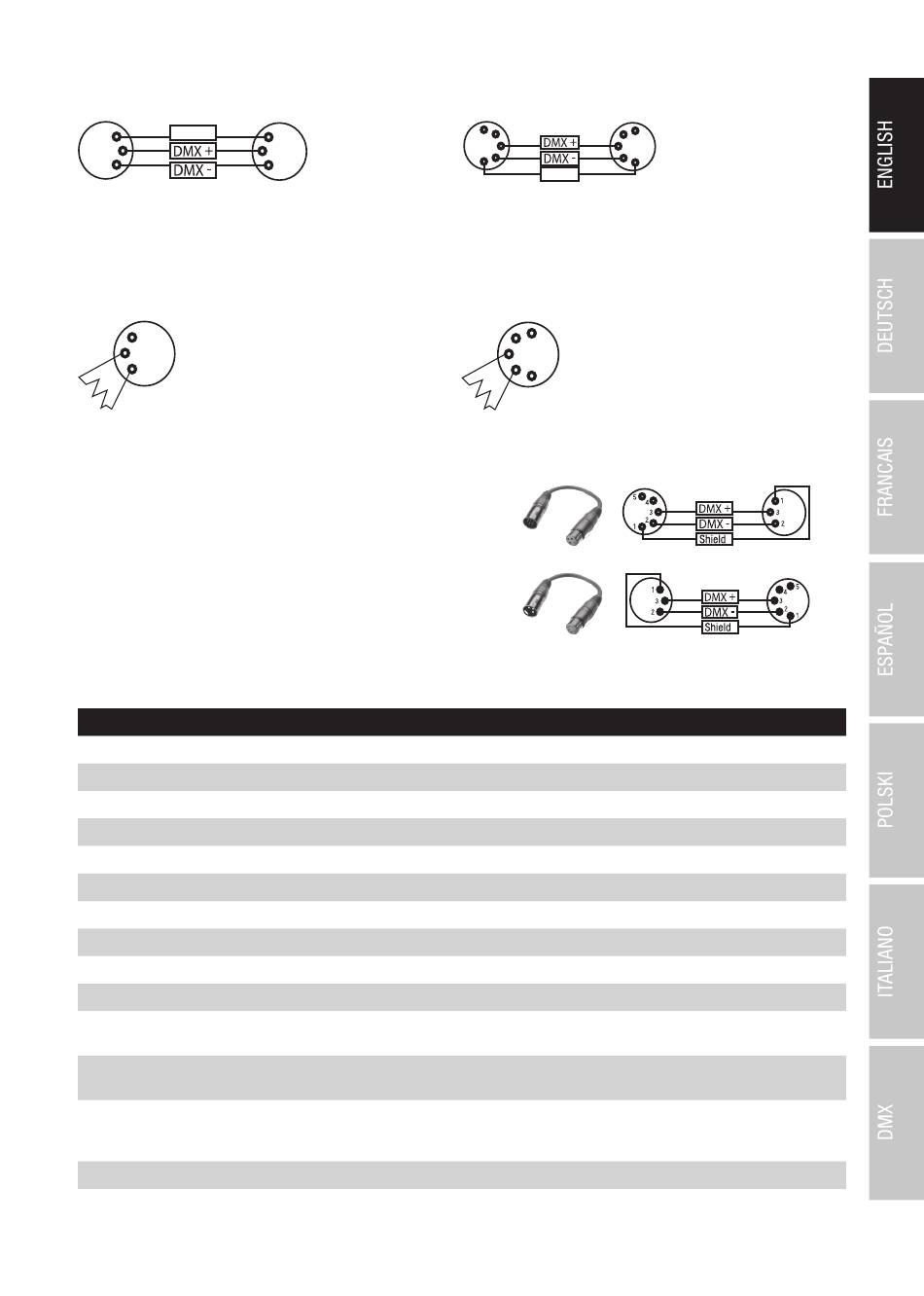

Pin Assignment
DMX cable with 3-pin XLR connectors:
Shield
1
3
2
DMX TERMINATORS (TERMINATING RESISTORS)
To prevent system errors, the last device in a DMX chain needs to be equipped with a terminating resistor (120 ohm, 1/4 Watt).
3-pin XLR connector with a terminating resistor: K3DMXT3
5-pin XLR connector with a terminating resistor: K3DMXT5
Pin Assignment
3-pin XLR connector:
1
3
2
DMX ADAPTER
The combination of DMX devices with 3-pin connectors and DMX devices with 5-pin connectors in a DMX chain is possible with suitable
adapters.
Pin Assignment
DMX Adapter 5-pin XLR male to 3-pin XLR female: K3DGF0020
Pins 4 and 5 are not used.
Pin Assignment
DMX Adapter 3-pin XLR male to 5-pin XLR female: K3DHM0020
Pins 4 and 5 are not used.

TECHNICAL DATA

Product number:
Product type:
Type:
Colour spectrum LED:
Number of LEDs:
LED type:
LED PWM frequency:
Beam angle:
DMX input:
DMX output:
DMX modes:
DMX functions:
Standalone functions:
System settings:
Control:
1
3
2
CLZB200
LED battery-powered wash light
Outdoor floodlight
RGBW
21
15 W CREE
800 Hz, 1200 Hz, 2000 Hz, 3600 Hz, 12 kHz, 25 kHz (adjustable)
21° (40° Field)
5-pin male XLR, IP65
5-pin female XLR, IP65
2-channel, 3-channel, 4-channel, 8-channel 1, 8-channel 2, 10-channel, 15-channel
dimmer, dimmer fine, RGBW, RGBW fine, colour macros, colour change, colour blend, strobe, dimmer
curves, colour temperature correction, dimmer sensitivity, LED PWM frequency
Colour mixing, colour macros, master/slave operation, automatic programmes, strobe, user colour,
tunable white
W-DMX settings, display rotate 180°, runtime, display lighting, DMX fail, AC failure, dimmer curves,
dimmer sensitivity, colour calibration, display lock Function, LED PWM frequency, IR remote control,
factory reset
DMX512, W-DMX™, IR remote control, RDM-enabled
DMX cable with 5-pin XLR connectors (pin 4 and 5 are not used):
5
4
4
3 3
2
2
1
Shield
5-pin XLR connector:
5
4
3
2
1
5
1
17
