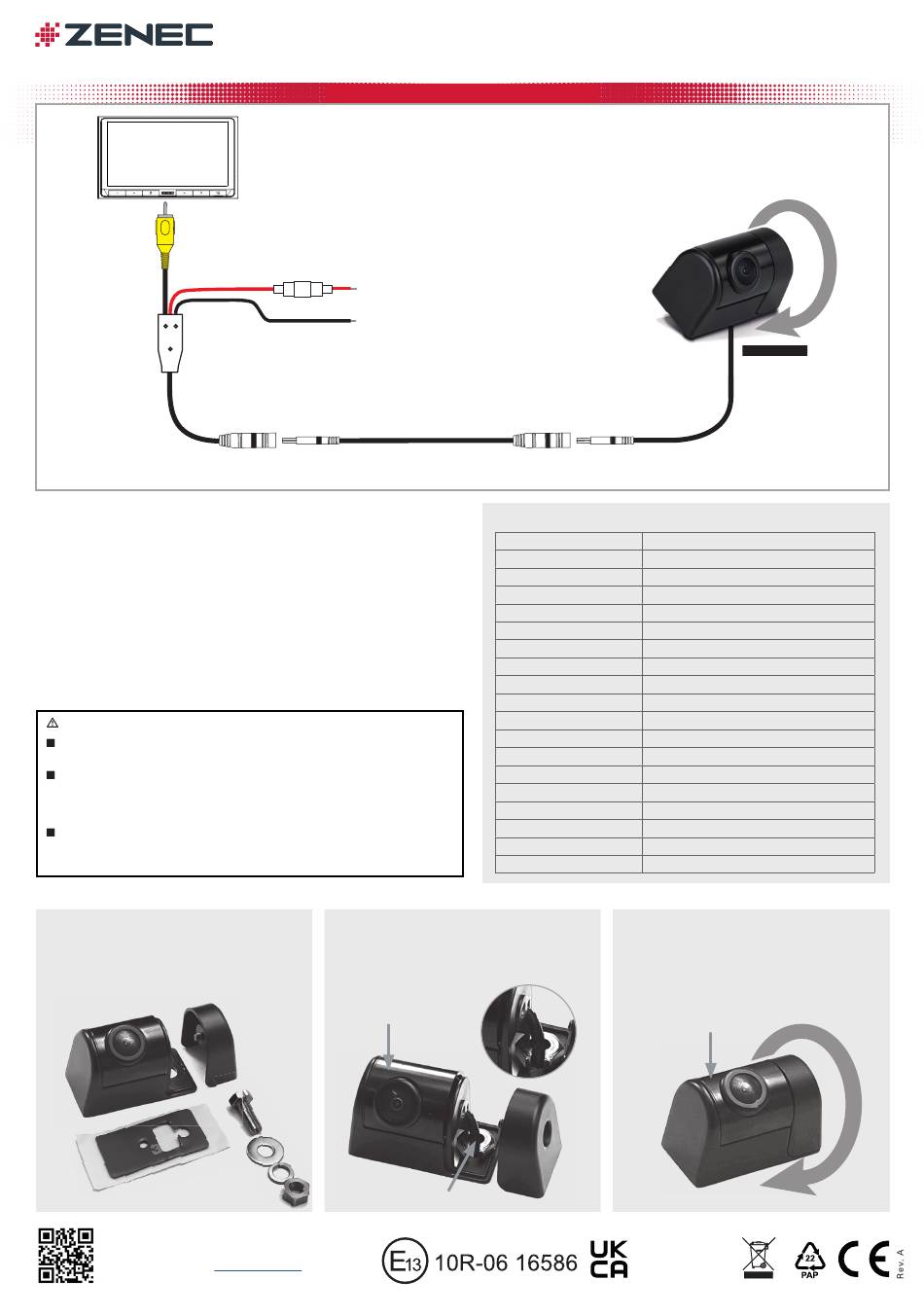

ZENEC ZE-RVC82MT Montageanleitung

MOUNTING INSTRUC TIONS
RCA / Cinch
Video Signal (CVBS)
0.70 m
KEY FEATURES

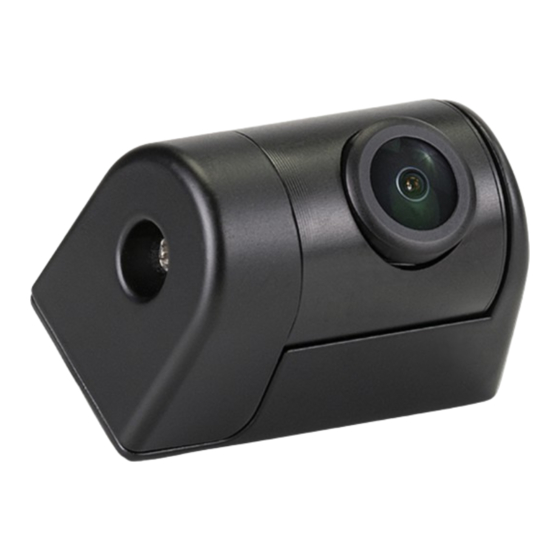

• Compact high resolution universal rear view camera
• Robust camera housing made of die-cast aluminum
• Cam sensor with 170° diagonal viewing angle for wide monitoring area
behind the vehicle
• Vertical 140° image section adjustment by rotating sensor roller, 0° to
70° up / 0° to 70° down
• High sensitivity CMOS sensor with 0.3 lux light sensitivity for good night
vision
• 10 m long separable system cable with mini 4-PIN connectors
• Required cable feed-through hole: 6.1 mm, easy mounting via M6
hollow thread screw
• IP69K certified
CAUTION
Use the included connection cable exclusively. Modifying the cable will void
your warranty.
The camera is water- and dustproof and has been licensed according to the
international standard IP69K. However, vehicle cleaning using high pressure
water and steam jet devices may still lead to damage of IP69K rated camera
models by intrusion of water.
If the vehicle is treated with a water jet high pressure cleaning device, make
sure to keep a distance of at least one meter between the water nozzle and
the camera sensor / housing.
Rotatable Reverse Camera
Loosen the locking screw of the camera housing side cover.
Pull the camera cable out of the rectangular opening in the
camera bottom. The accessory set contains one piece of
hollow thread screw, washer, M6 lock nut, M6 spring washer,
3M adhesive pad and self-tapping fixing screw.
Camera housing
3M adhesive pad
UK Declaration of Conformity
Hereby, ACR Brändli + Vögeli AG declares that ZENEC ZE-RVC82MT is
CE compliant – the EU Declaration of Conformity can be accessed via
the following Internet address:
Conformity Documents" in the footer area of the page).
ZENEC by ACR AG ∙ Bohrturmweg 1 ∙ CH-5330 Bad Zurzach ∙ Switzerland, EU Legal Representative: ACR S & V GmbH ∙ Industriestr. 35 ∙ D-79787 Lauchringen ∙ Germany www.zenec.com
Fuse 0.5 A
Red: DC 6 ~ 24 V
Black: GND
mini 4PIN mini 4PIN
(female) (male)
Insert the cable into the groove from the hollow thread
screw. Route the cable with the hollow thread screw into the
round hole in the camera base. Drill a mounting / cable
cable feed-through hole with a diameter of 6 mm. Fix the
cam via hollow threaded screw with washer, spring washer
and M6 lock nut.
Cylinder
Side cover
Hollow
screw
http://www.zenec.com (see link „Product
10.0 m
mini 4PIN mini 4PIN
(female)
TECHNICAL SPECIFICATIONS
Image device:
Lens focal length:
TV system:
View angle:
Native sensor resolution:
Resolution of video-out:
Signal to noise ratio:
Light sensitivity:
Video output:
White balance:
Backlight compensation:
Gamma correction:
Gain control:
Sync system:
Power supply:
Current consumption:
IP protection rating:
Operating temperature:
Dimensions (WxHxD):
Cable
ZE-RVC82MT ZE-RVC82MT
RE AR VIE W C AMER A
Camera rotates Camera rotates
0.70 m
(male)
6.09 mm SONY IMX225LQR CMOS sensor
f 1.8
NTSC / 30 fps
170° (D) x 135° (H) x 90° (V)
1305 (H) x 977 (V) pixels
> 420 TV lines
> 48 dB
0.3 Lux
1.0 Vp-p, 75 ohms CVBS
Auto
Auto
0.45
Auto
Auto
DC 6 – 24 V
70 mA @12 VDC, ≤ 480 mW
IP69K
-30° C ~ +75°C, RH 95% max.
44 x 23 x 29 mm
Alternatively, the camera can be fixed with the 3M adhesive
pad or the self-tapping screw. The cable must always be
routed though the round hole in the camera base to provide
for full adjustment range of the sensor cylinder. Loosely
screw on the housing cover and align the camera. Tighten
the locking screw well.
Cylinder
