Grundfos UPS-Serie 200 Montageanleitung Seite 5

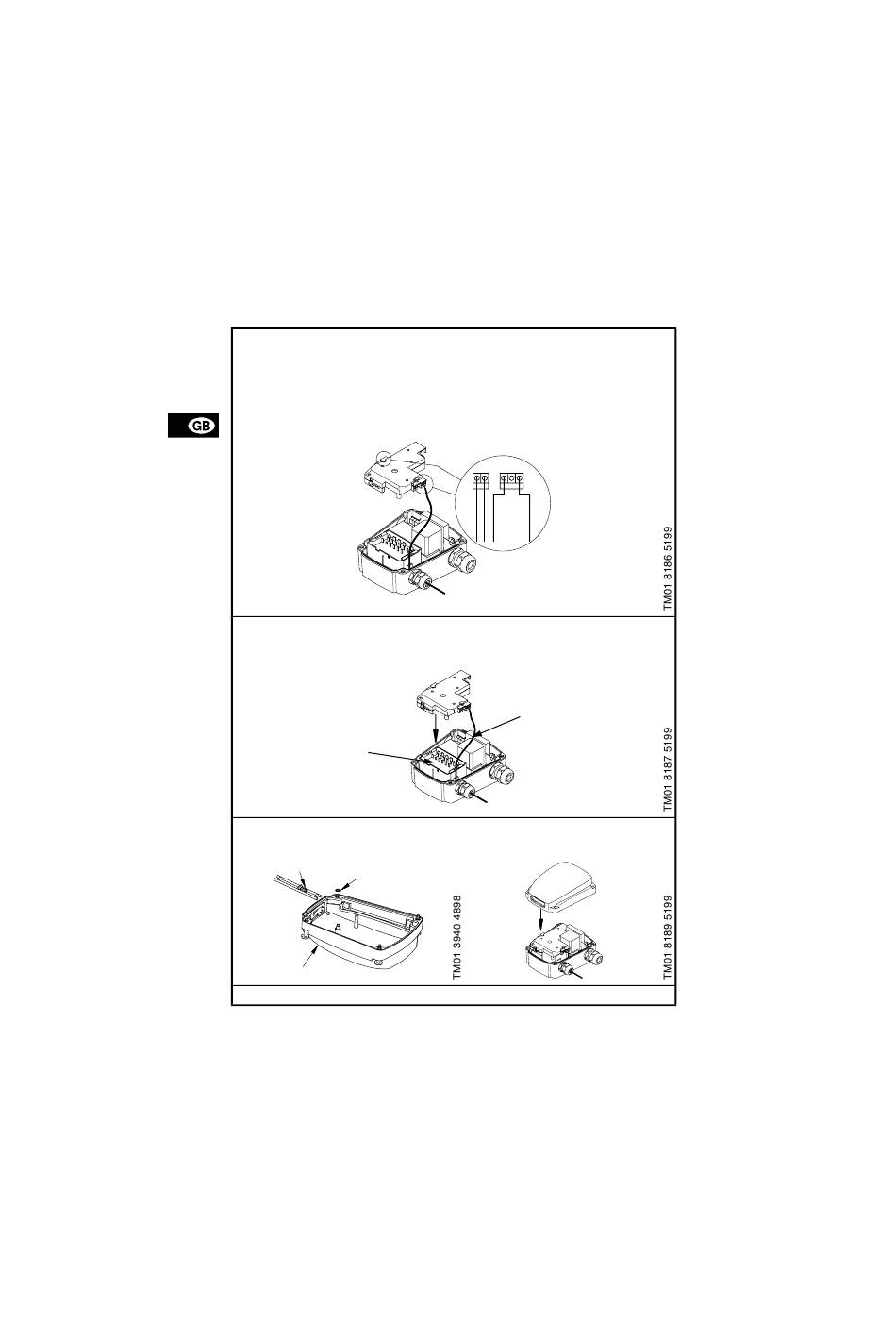

4. Lead the BUS connection into the terminal box through the screwed
connection and connect it to the terminals of the LON module. The
connection can be connected on the right or left side of the module,
as required.
BUS cable requirements:
Wire cross-section: 0,25 - 1 mm².
Unscreened twisted-pair cable.
* See section 2.2.
5. Fit the LON module on the basic module and the speed switch.
Make sure that the plugs engage.
Plug connection
for speed switch
6. Remove the toothed disc and the light guide. Fit the terminal box
cover.
Light guide
Toothed disc
Terminal box cover
7. Switch on the electricity supply.
6
*
24V L O N
Plug connection
for basic module
