Grundfos UPS-Serie 200 Montageanleitung Seite 3

1. General
Before removing the terminal box module, these fitting instructions
should be studied carefully. The installation and operation should
also be in accordance with local regulations and accepted codes of
good practice.
Note: Pumps with modules must not be connected to a frequency converter.
Together with the basic module, the LON module is built into the terminal box
of UPS Series 200 pumps.
In addition to the functions of the basic module (see fitting instructions for the
basic module), the LON module offers the following functions:
• Data transmission between a Local Operating Network (LON) and
GRUNDFOS UPS Series 200 pumps.
• Indicator lights for operating and fault indication.
For further information, see the documentation files on the floppy disk sup-
plied with the LON module.

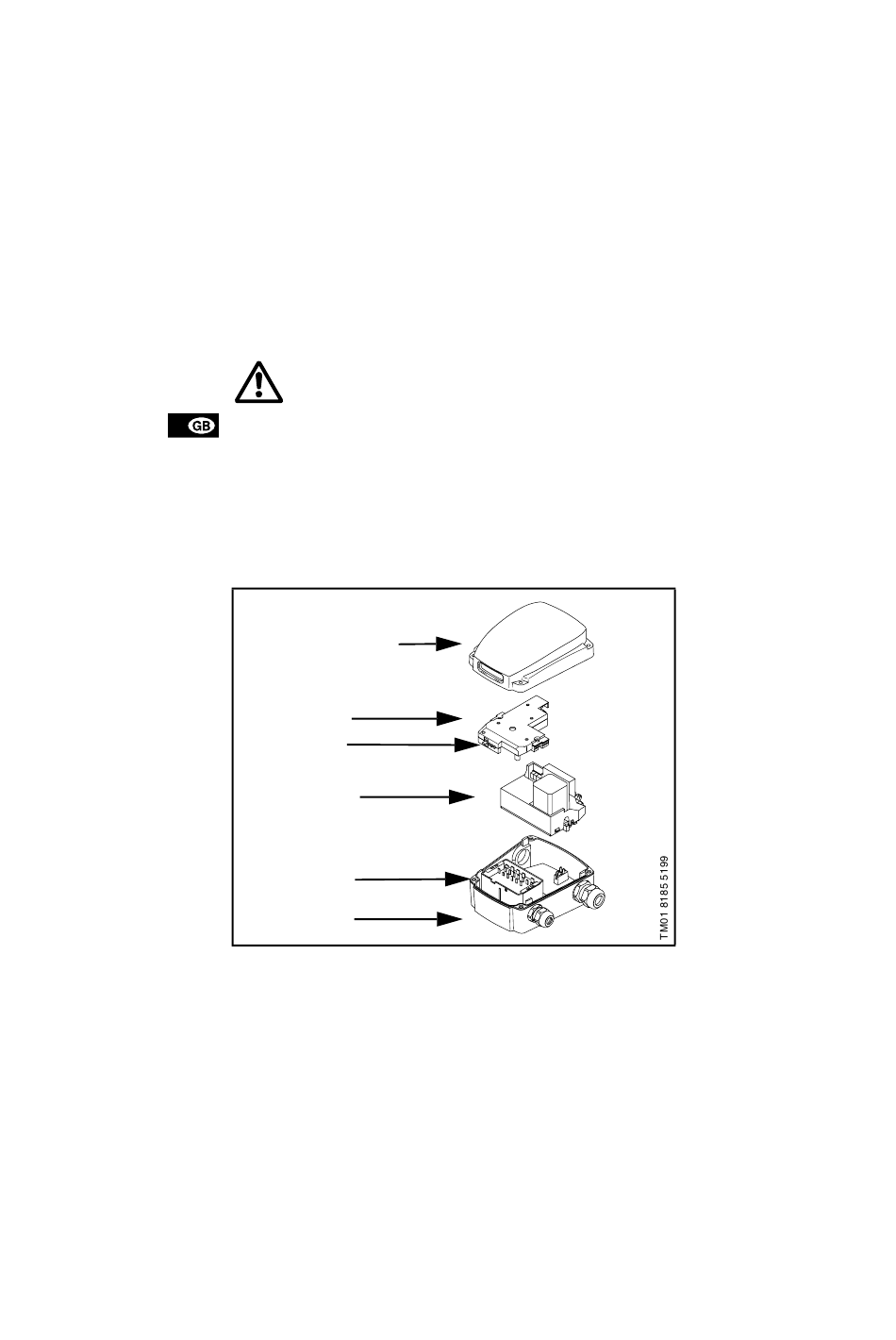

Terminal box cover
LON module
Service PIN
Basic module
Speed switch
Terminal box
4
