INSTALLATION
GB
INSTALLATION OF CONTROL PANEL
The control panel complies with EMC standards (electromagnetic compatibility) but requires correct installation
to avoid compromising its performance and that of the surronding instruments.
For this reason the interface must be positioned at a distance of at least:
• 25 cm away from the compass.
• 50 cm away from any radio receivers.
• 1 m away from any radio transmitters (except for SSB).
• 2 m away from any radio transmitters SSB.
• 2 m away from the path of the radar beam.

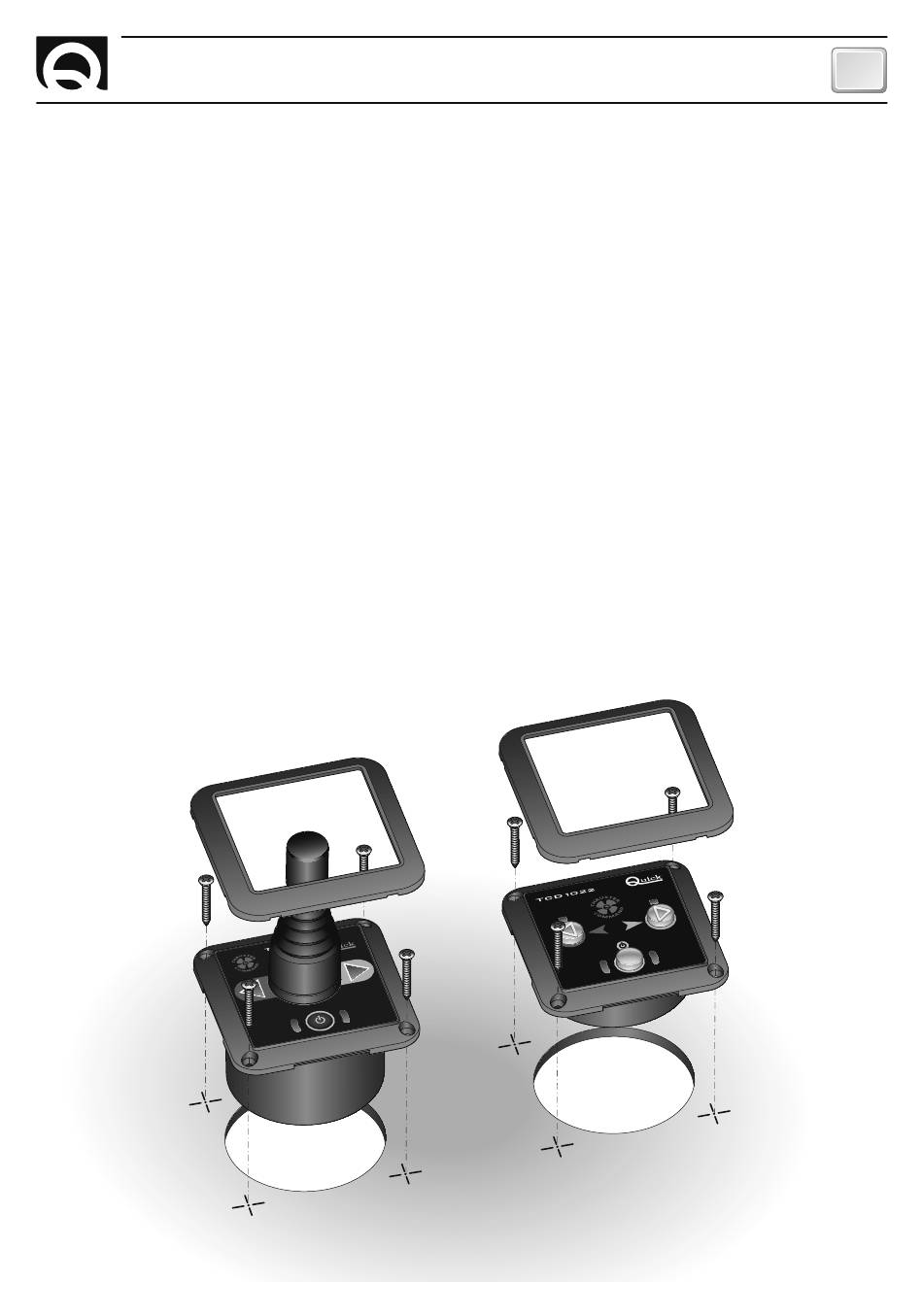

After choosing where to position the controls, proceed as follows:
• Position the drilling template (provided) on the surface where the controls will be installed.
• Mark the centre of each hole.
• Drill the hole for the back of the instrument with a 60 mm bit.
• Remove the template and any burrs present in the hole.
• Insert the control panel into its seat.
• Fix the controls to the panel with four countersunk head screws (not provided).
• Position the frame on the controls.
TCD 1042 TCD 1022
