Fuse-Holder Or Switch Plug Substitution/Maintenance - LAVAZZA Espresso Point Wartungshandbuch Für Den Technischen Kundendienst

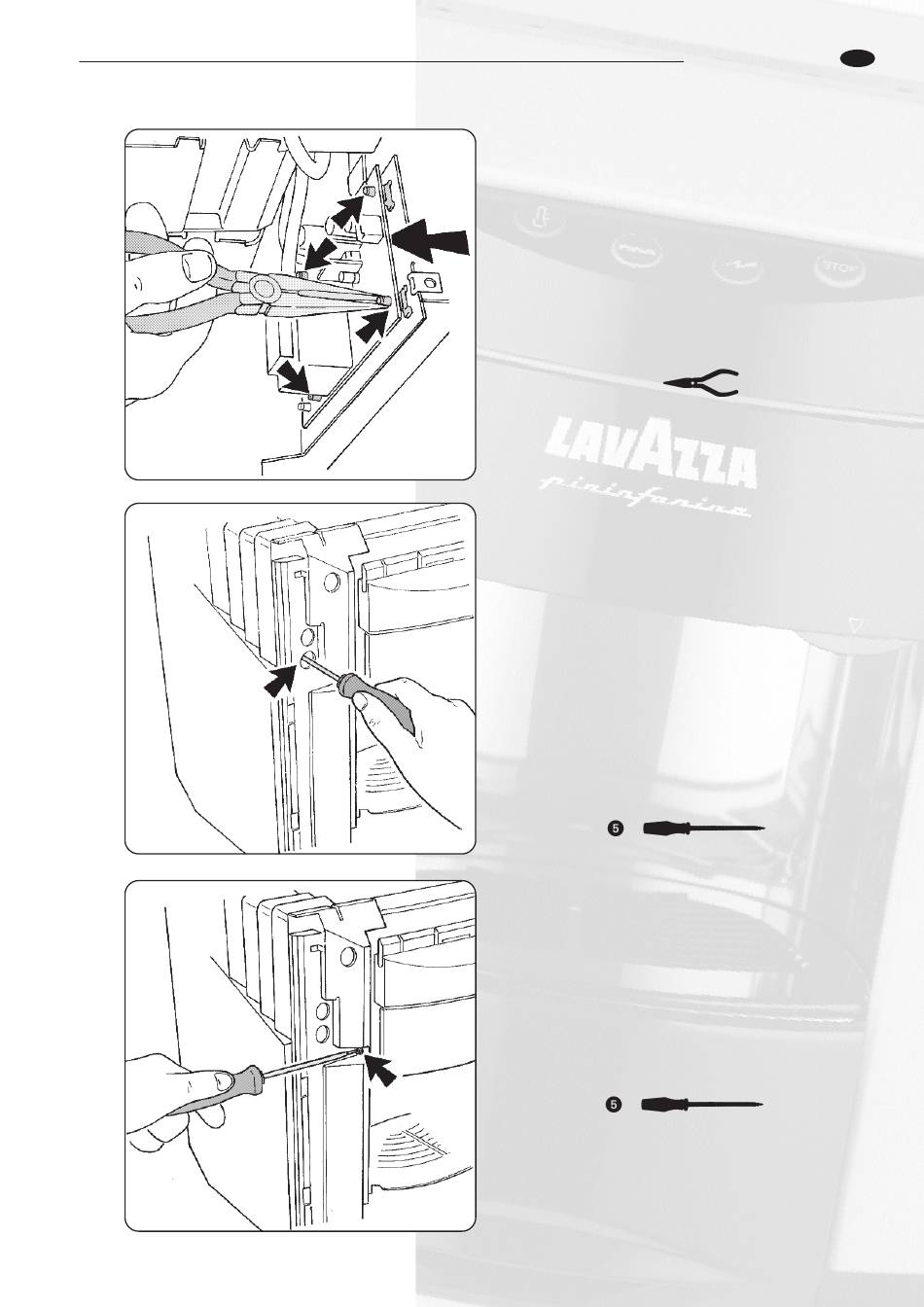

Use a long-nosed pliers to remove the four
connecting spacers and extract the card, exerting
gentle pressure with the fingers in the direction
shown in the figure. Detach and remove the
electronic card.
¸
Fuse-holder or switch plug
Substitution/maintenance
To reach the plug and the switch it is necessary to
remove the left side of the body.
Remove the pod drawer, unscrew the two screws
and unhook the frame by lifting it upwards and
outwards as shown in the section "Front part
Maintenance".
Unscrew and remove the screw, using a long
cross-headed screwdriver through the hole
shown in the figure.
Unscrew and remove the fixing screw from the left
side.
