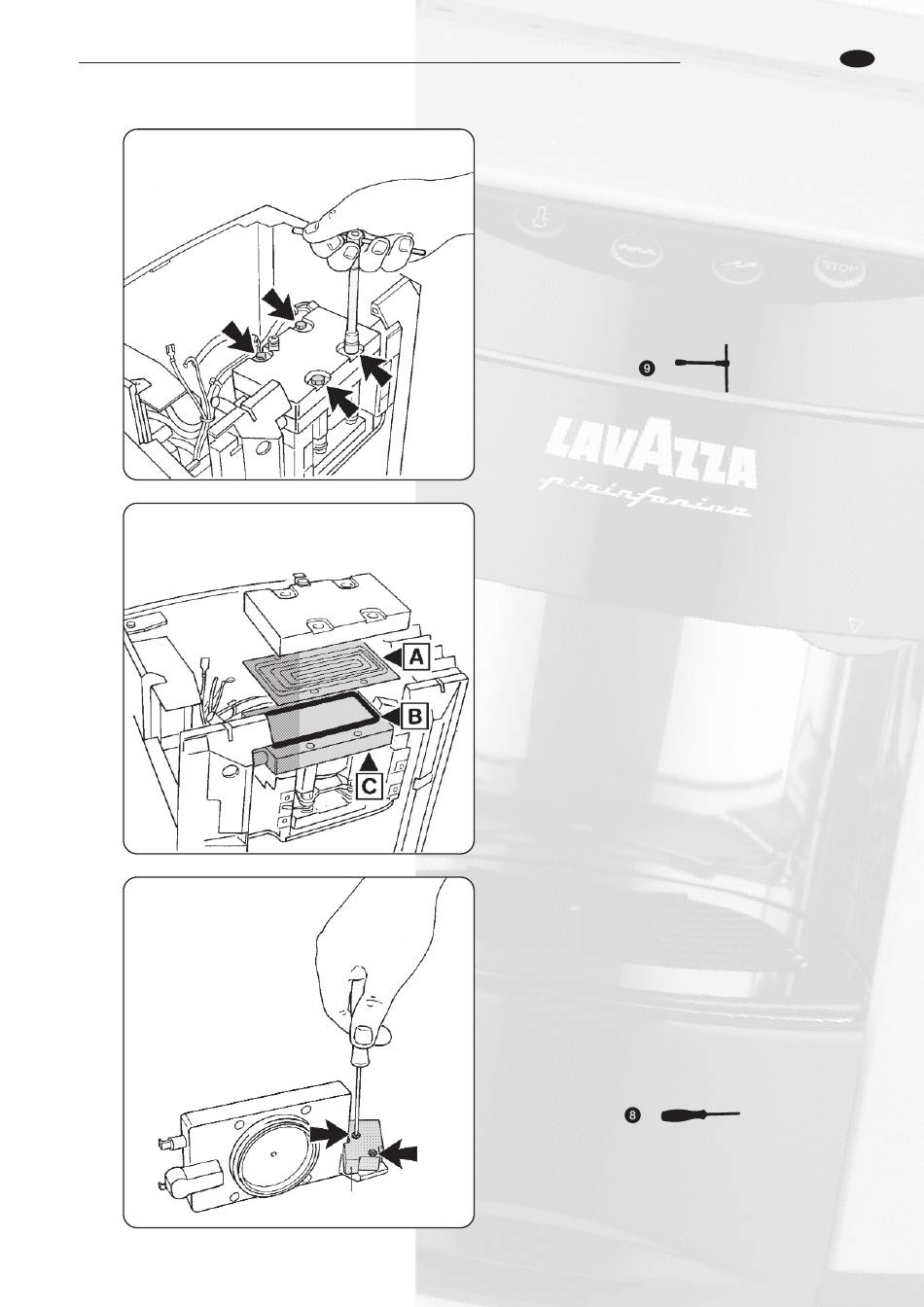

Unscrew and remove the four screws shown in the
figure from the plate.
Dismantling the heating unit it is possible to reach
the labyrinth (A), substitute the rectangular seal (B),
substitute the heating plate (C).
To remove the micro, unscrew the two screws
holding it to the retainer (as in figure) and remove
it from the rubber protecting hood.
