Front part maintenance
GB
Jaw
Substitution/maintenance

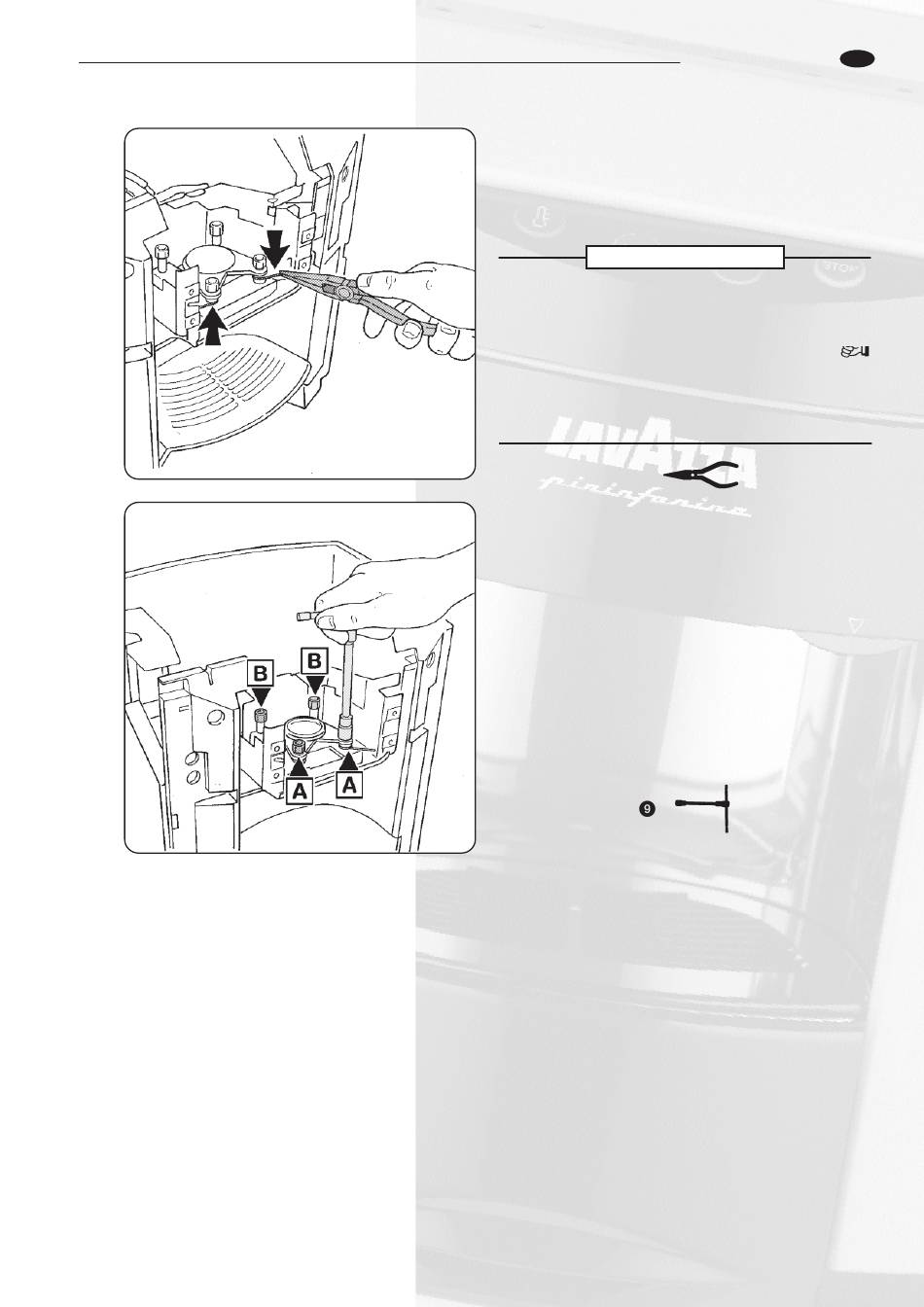

Use pliers to release the two springs shown in the
figure.
WARNING
Avoid stretching the springs excessively
while dismantling.
While assembling ensure that the right hand
spring passes below its retainer on the
spray cover of the support.
The left hand spring should be inserted in
its seat before tension is applied.
µ
Unscrew the two front (A) nuts using a 10 mm.
spanner.
Extract the two spacers and remove the two jaws.
By undoing and removing the two rear nuts and
spacers (B) it is possible to remove the slide base of
the pod.
