ECG MTM 1701 B Bedienungsanleitung Seite 50

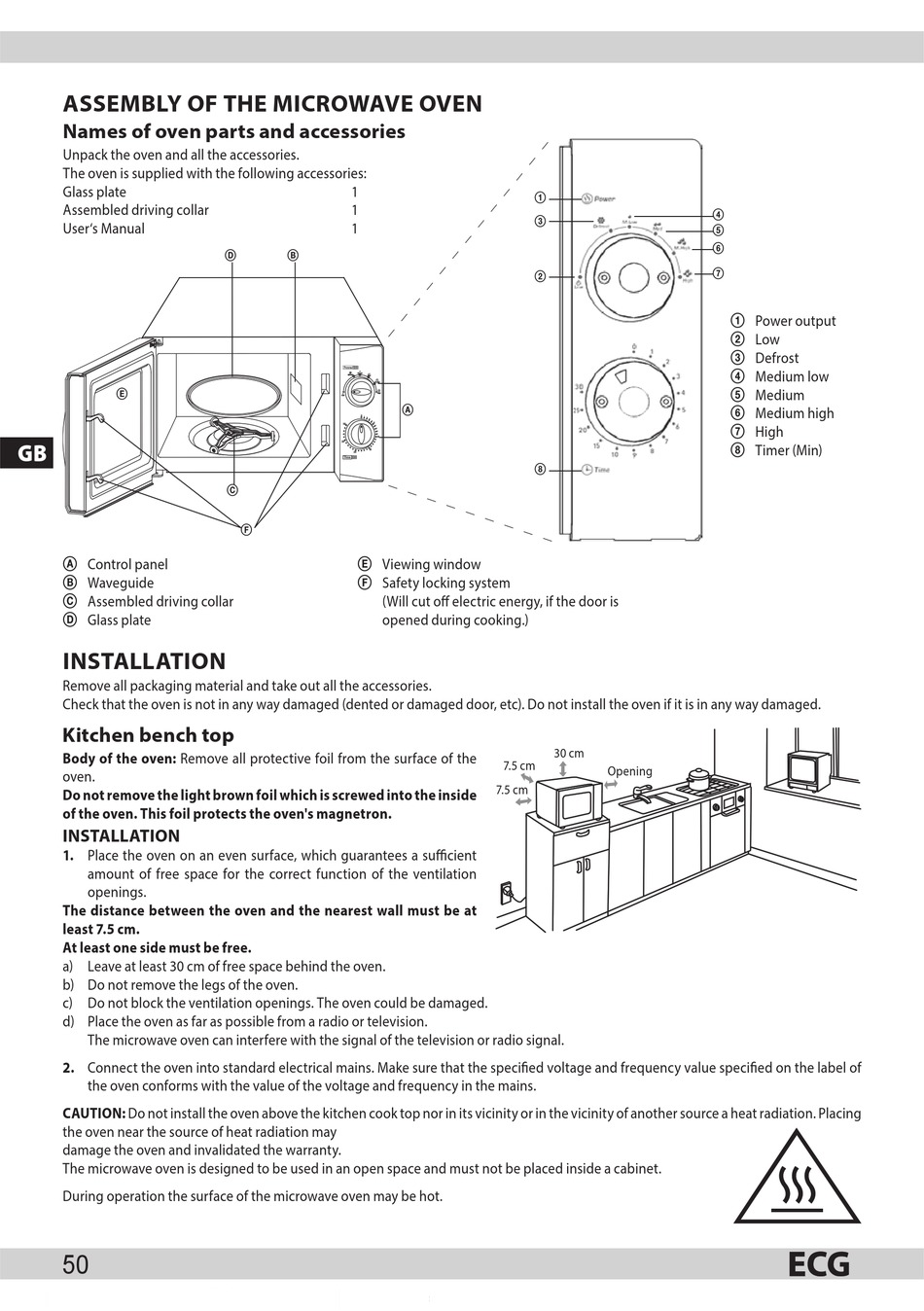

ASSEMBLY OF THE MICROWAVE OVEN
Names of oven parts and accessories
Unpack the oven and all the accessories.
The oven is supplied with the following accessories:
Glass plate
Assembled driving collar
User's Manual
E
GB
A Control panel
B Waveguide
C Assembled driving collar
D Glass plate
INSTALLATION
Remove all packaging material and take out all the accessories.
Check that the oven is not in any way damaged (dented or damaged door, etc). Do not install the oven if it is in any way damaged.
Kitchen bench top
Body of the oven: Remove all protective foil from the surface of the
oven.
Do not remove the light brown foil which is screwed into the inside
of the oven. This foil protects the oven's magnetron.
INSTALLATION
1. Place the oven on an even surface, which guarantees a su cient
amount of free space for the correct function of the ventilation
openings.
The distance between the oven and the nearest wall must be at
least 7.5 cm.
At least one side must be free.
a) Leave at least 30 cm of free space behind the oven.
b) Do not remove the legs of the oven.
c) Do not block the ventilation openings. The oven could be damaged.
d) Place the oven as far as possible from a radio or television.
The microwave oven can interfere with the signal of the television or radio signal.
2. Connect the oven into standard electrical mains. Make sure that the speci ed voltage and frequency value speci ed on the label of
the oven conforms with the value of the voltage and frequency in the mains.
CAUTION: Do not install the oven above the kitchen cook top nor in its vicinity or in the vicinity of another source a heat radiation. Placing
the oven near the source of heat radiation may
damage the oven and invalidated the warranty.
The microwave oven is designed to be used in an open space and must not be placed inside a cabinet.
During operation the surface of the microwave oven may be hot.
50
1
1
1
D B
C
F
E Viewing window
F Safety locking system
(Will cut o electric energy, if the door is
opened during cooking.)
1
3
2
A
8
30 cm
7.5 cm
7.5 cm
4
5
6
7
1 Power output
2 Low
3 Defrost
4 Medium low
5 Medium
6 Medium high
7 High
8 Timer (Min)
Opening
