5. Mounting the camera
The quick release plate has a 1/4" screw to
attach it to the camera (see Fig .4) .
Now attach the camera with the mounting plate
onto the slide rail as shown in Fig . 5 . Make sure
that the centre of the lens is lined up with centre
of the plate .
G
Before the base plate is put back onto the panorama head check the align ment
of the camera relation to the base plate . The axis of lens and the central axis of
the base plate must match perfectly as shown in Fig 5 .
25

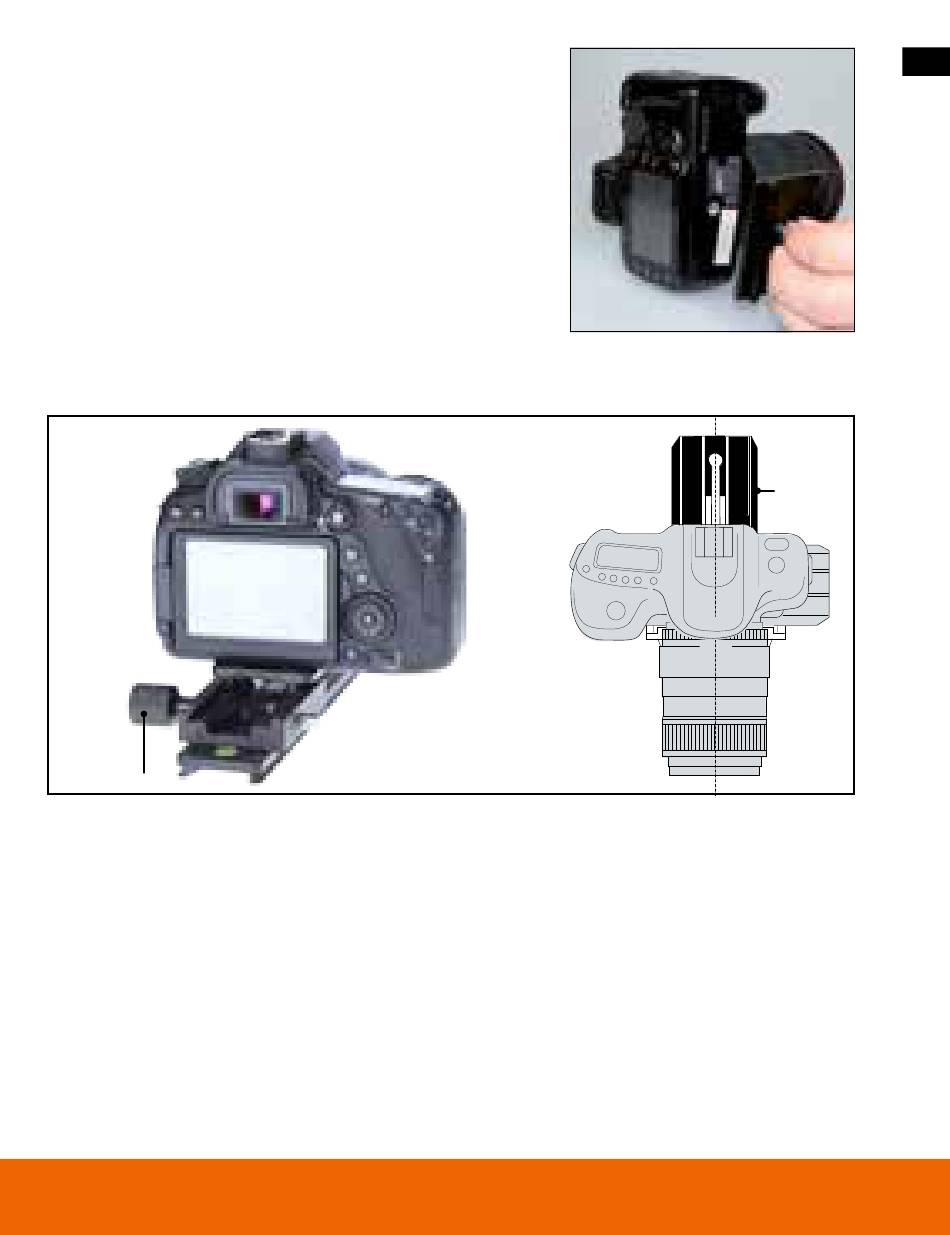

Fig . 4
