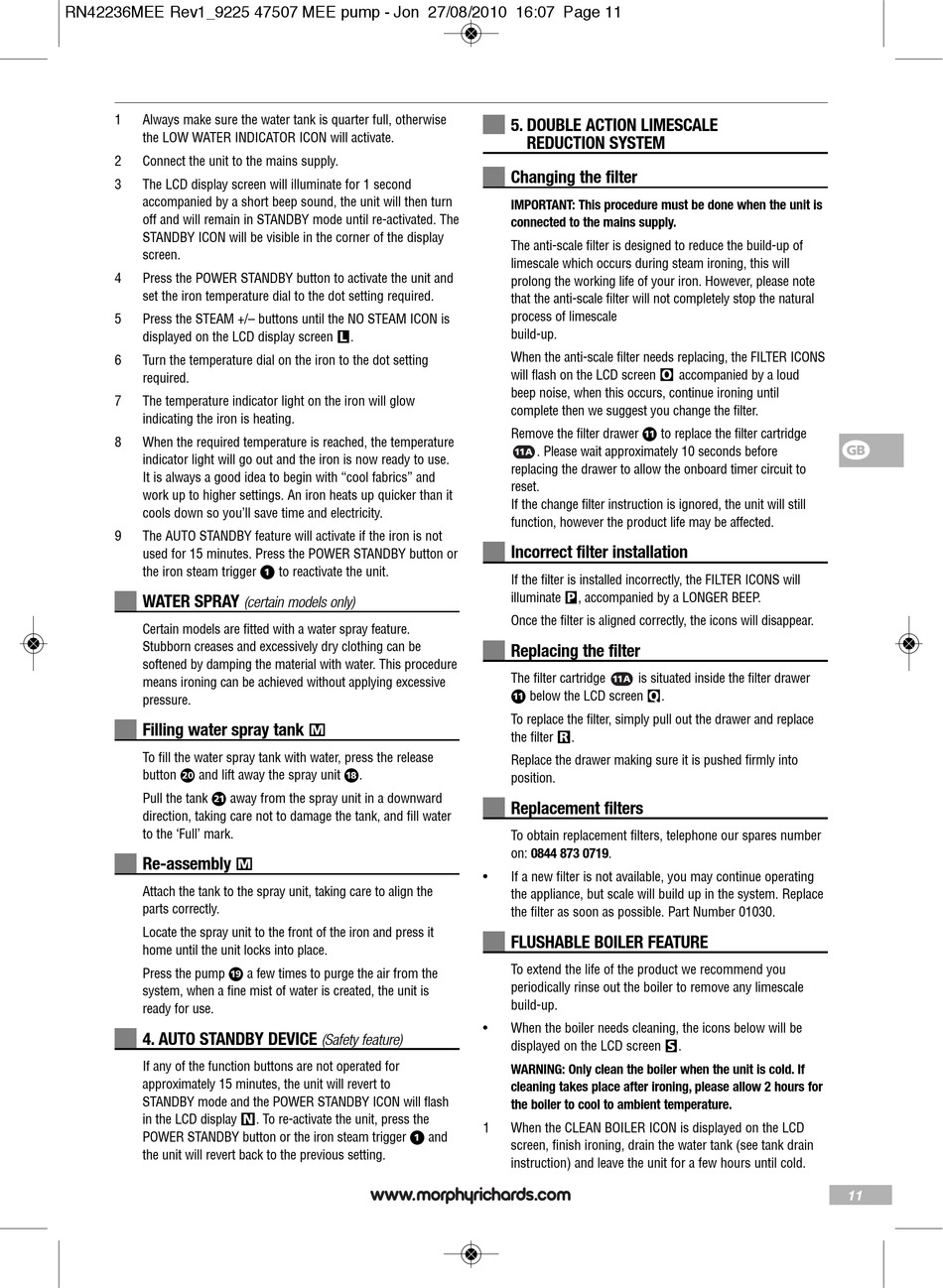

RN42236MEE Rev1_9225 47507 MEE pump - Jon 27/08/2010 16:07 Page 11
1 Always make sure the water tank is quarter full, otherwise
the LOW WATER INDICATOR ICON will activate.
2 Connect the unit to the mains supply.
3 The LCD display screen will illuminate for 1 second
accompanied by a short beep sound, the unit will then turn
off and will remain in STANDBY mode until re-activated. The
STANDBY ICON will be visible in the corner of the display
screen.
4 Press the POWER STANDBY button to activate the unit and
set the iron temperature dial to the dot setting required.
5 Press the STEAM +/– buttons until the NO STEAM ICON is
displayed on the LCD display screen L.
6 Turn the temperature dial on the iron to the dot setting
required.
7 The temperature indicator light on the iron will glow
indicating the iron is heating.
8 When the required temperature is reached, the temperature
indicator light will go out and the iron is now ready to use.
It is always a good idea to begin with "cool fabrics" and
work up to higher settings. An iron heats up quicker than it
cools down so you'll save time and electricity.
9 The AUTO STANDBY feature will activate if the iron is not
used for 15 minutes. Press the POWER STANDBY button or
the iron steam trigger ⁄ to reactivate the unit.
WATER SPRAY
Certain models are fitted with a water spray feature.
Stubborn creases and excessively dry clothing can be
softened by damping the material with water. This procedure
means ironing can be achieved without applying excessive
pressure.
Filling water spray tank
To fill the water spray tank with water, press the release
button Ì and lift away the spray unit Î.
Pull the tank Ó away from the spray unit in a downward
direction, taking care not to damage the tank, and fill water
to the 'Full' mark.
Re-assembly
M
Attach the tank to the spray unit, taking care to align the
parts correctly.
Locate the spray unit to the front of the iron and press it
home until the unit locks into place.
Press the pump Ï a few times to purge the air from the
system, when a fine mist of water is created, the unit is
ready for use.
4. AUTO STANDBY DEVICE
If any of the function buttons are not operated for
approximately 15 minutes, the unit will revert to
STANDBY mode and the POWER STANDBY ICON will flash
in the LCD display N. To re-activate the unit, press the
POWER STANDBY button or the iron steam trigger ⁄ and
the unit will revert back to the previous setting.
(certain models only)
M
(Safety feature)
5. DOUBLE ACTION LIMESCALE
REDUCTION SYSTEM
Changing the filter
IMPORTANT: This procedure must be done when the unit is
connected to the mains supply.
The anti-scale filter is designed to reduce the build-up of
limescale which occurs during steam ironing, this will
prolong the working life of your iron. However, please note
that the anti-scale filter will not completely stop the natural
process of limescale
build-up.
When the anti-scale filter needs replacing, the FILTER ICONS
will flash on the LCD screen O accompanied by a loud
beep noise, when this occurs, continue ironing until
complete then we suggest you change the filter.
Remove the filter drawer ‰ to replace the filter cartridge
. Please wait approximately 10 seconds before
replacing the drawer to allow the onboard timer circuit to
reset.
If the change filter instruction is ignored, the unit will still
function, however the product life may be affected.
Incorrect filter installation
If the filter is installed incorrectly, the FILTER ICONS will
illuminate P, accompanied by a LONGER BEEP.
Once the filter is aligned correctly, the icons will disappear.
Replacing the filter
The filter cartridge is situated inside the filter drawer
‰ below the LCD screen Q.
To replace the filter, simply pull out the drawer and replace
the filter R.
Replace the drawer making sure it is pushed firmly into
position.
Replacement filters
To obtain replacement filters, telephone our spares number
on: 0844 873 0719.
• If a new filter is not available, you may continue operating
the appliance, but scale will build up in the system. Replace
the filter as soon as possible. Part Number 01030.

FLUSHABLE BOILER FEATURE

To extend the life of the product we recommend you
periodically rinse out the boiler to remove any limescale
build-up.
• When the boiler needs cleaning, the icons below will be
displayed on the LCD screen S.
WARNING: Only clean the boiler when the unit is cold. If
cleaning takes place after ironing, please allow 2 hours for
the boiler to cool to ambient temperature.
1 When the CLEAN BOILER ICON is displayed on the LCD
screen, finish ironing, drain the water tank (see tank drain
instruction) and leave the unit for a few hours until cold.
g
11
