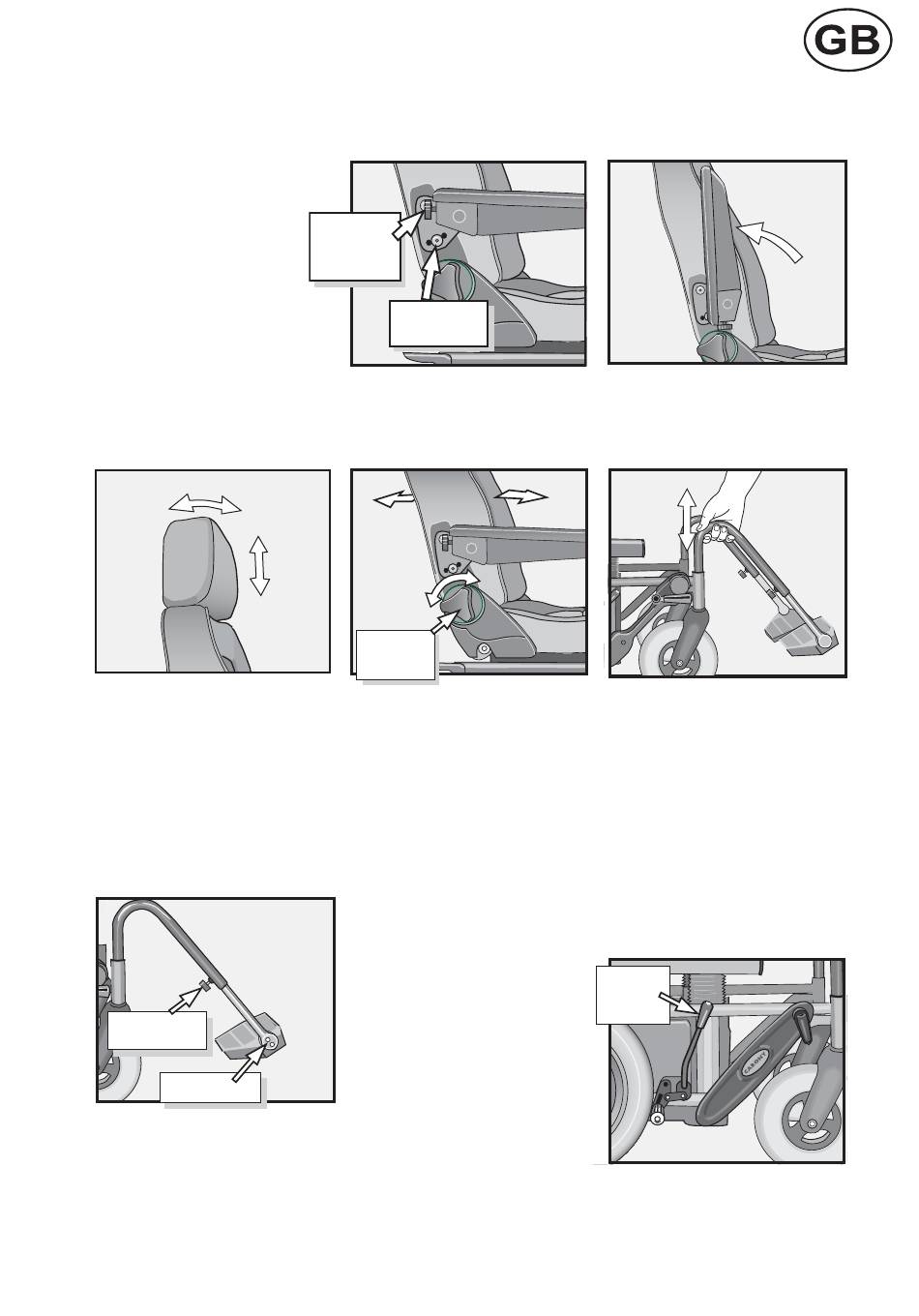

4. ADJUSTMENTS

Armrests
Adjusting the angle: raise armrest
slightly to release the angle adjust-
ment screw. Turn screw
clockwise for raising the
angle and counter- clock-
wise for lowering it.
Adjusting the height: move
the screw for the height adjust-
ment to a suitable hole.
Headrest
Push the headrest by hand, to adjust
it forward or backward.
The height adjustment is done by
pulling upwards, or pushing
downwards.
Height adjust-
ment
Angle adjustment
Unscrew the height adjustment to
adjust the position of the foot plate.
Adjust the angle by loosening the
socket head screws, using an 5 mm
Allen key, adjust and tighten again.
Screw for
angle adjust-
met
Height adjust-
ment
Backrest
Backrest
adjustment
The adjustment of backrest is
limited to avoid risk for tilting.
Adjust the backrest by turning the
control, placed on the right hand
side of the seat. Turn clockwise for
raising the seat forward and coun-
ter-clockwise for leaning back-wards.

5. HOW TO USE THE BRAKE

Apply the brakes on both wheels
by pressing down the brake
lever.
Lift the lever to release the
brakes.
The brake system is only inten-
ded as a parking brake and not
for braking the wheelchair in
motion.
The armrest can be raised to an
upright position.
Legrests
Mount the legrest into the legrest
anchorage. There is a fi xing track
at the bottom of the anchorage
pipe, which keeps the legrests in
forward position. To turn the leg-
rests outwards You need to fi rst
lift slightly upwards.
N.B! Do not lift the wheelchair
by holding onto the legrests!
Brake
lever
