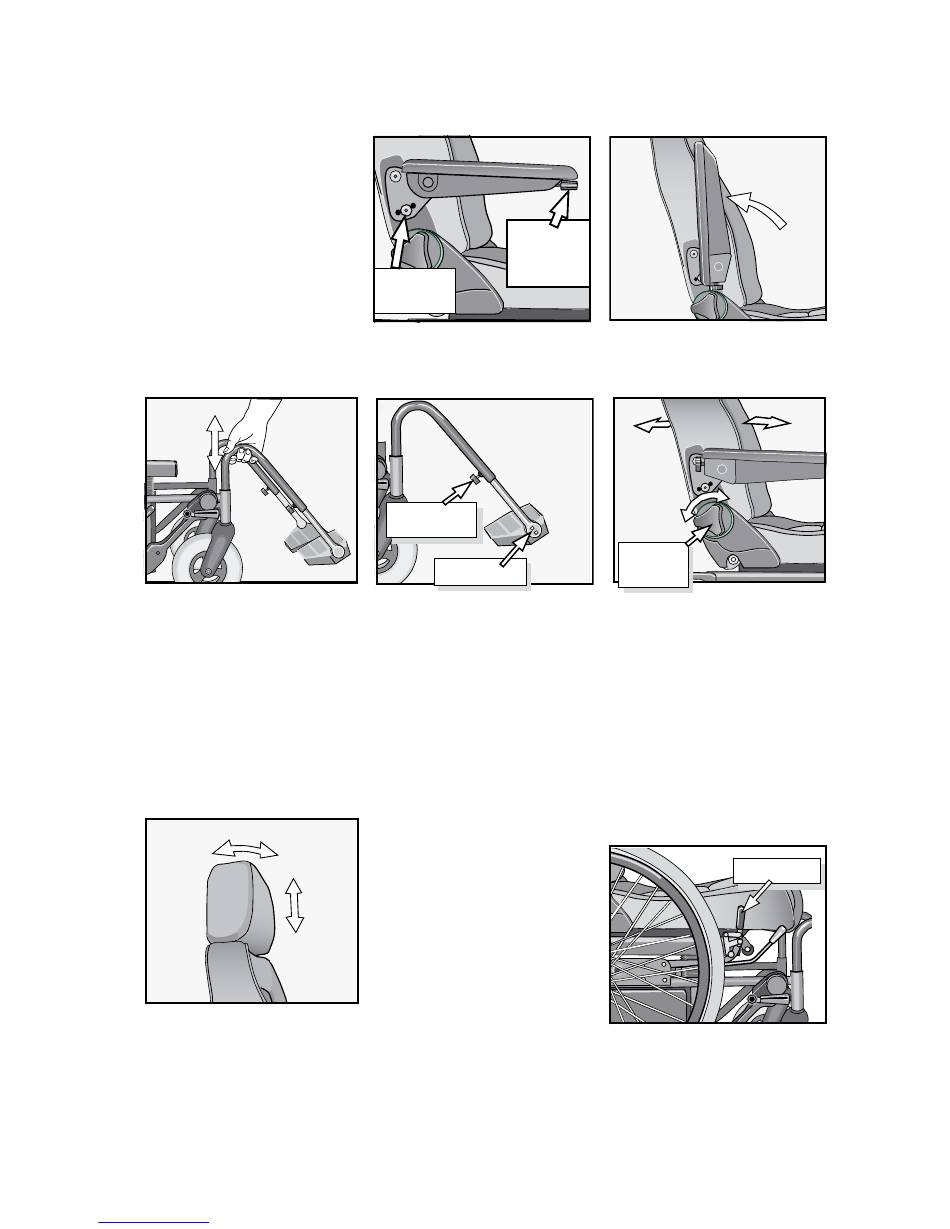

4. Adjustments

Armrests
Height adjustment: move the
screw for the height adjustment
to a suitable hole.
Angle adjustment: The screw for
angle adjustment is placed on the
front edge of the arm rest.
Legrests
Mount the legrest into the legrest
anchorage. There is a fixing track
at the bottom of the anchorage
pipe, which keeps the legrests in
forward position. To turn the leg-
rests outwards You need to first
lift slightly upwards.
N.B! Do not lift the wheelchair
by holding onto the legrests!
Headrest
Push the headrest by hand, to
adjust it forward or backward. The
height adjustment is done by pulling
upwards, or pushing downwards.
Downloaded from www.Manualslib.com
Height
adjustment
Height adjustment: Unscrew the
height adjustment to adjust the
position of the foot plate.
Angle adjustment: Adjust the angle
by loosening the socket head screws,
using an 5 mm Allen key, adjust and
tighten again.

5. How to use the brake

Apply the brakes on both wheels
by pressing down the brake
lever. Lift the lever to release the
brakes. The brake system is only
intended as a parking brake and
not for braking the wheelchair in
motion.
manuals search engine
Angle
adjustment
Height adjust-
ment
Angle adjustment
Backrest
Backrest
adjustment
The adjustment of backrest is limited
to avoid risk for tilting. Adjust the
backrest by turning the control,
placed on the right hand side of the
seat. Turn clockwise for raising the
seat forward and counter-clockwise
for leaning backwards.
Brake
11
